London & South
Western Railway
2 Coach Trailer
Sets
(inc.
Southern Railway)
|

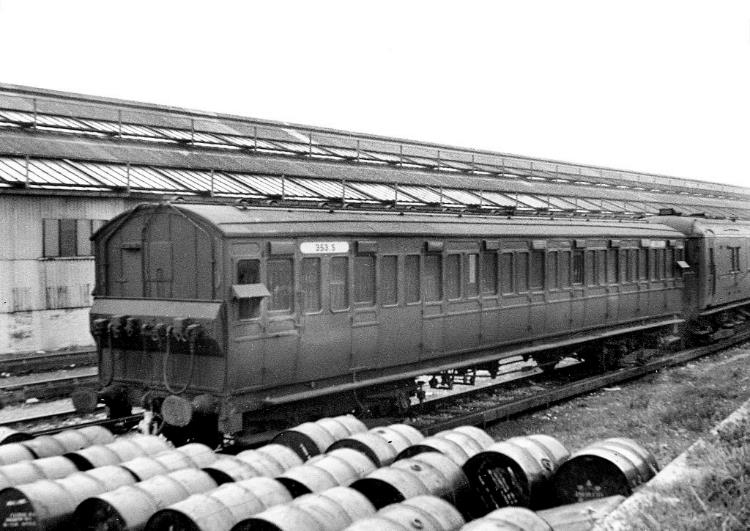

Ex. LSWR 2 Coach Trailer now in departmental use
as a de-icing vehicle. |
London & South Western Railway
DC
electric suburban services
In
summation the mainstay for DC electric suburban services was provided by the 3
Car Motor Units. Initially this was for the LSWR 1915 electrification (London & South Western
Railway) then subsequently the Southern
Electric (following
the formation of the Southern Railway from 1st January 1923)
right through to these units’ Wartime augmentation to 4-car.
Usually
referred to as ‘3s’ in internal railway publications, these electric units
often operated in pairs with 2-coach Trailer Sets (coupled in between) to form
an 8-car train.
During
the Second World War these 3 Car Motor Units were augmented to 4-cars so as to bring the trailer-unit operations to a close.
Eventually these augmented 4-car units were referred to as 4 SUB
when the ‘Bulleid’ 4 SUB units started to appear from
1941.
Increasing
Capacity
Due
to the rapid growth in traffic following the LSWR electrification scheme in
1915 /1916 it became necessary to increase capacity on a
number of trains to cope with demand. There were insufficient electric 3
Car Motor Units available to make-up trains to three‑unit formations and
9-car trains were too long for a number of platforms.
Two‑coach
Trailer Sets
So,
in May 1919 it was decided to form ten two‑coach Trailer Sets by
converting five four-coach bogie block trains which would be marshalled between
two 3 Car Motor Units on busy trains giving an 8-car train. The performance of
the 3 Car Motor Units was sufficient to allow these 8-car trains to maintain
the electric schedules.
Conversion
of Steam-hauled Stock
Conversion
proceeded quite slowly, with ten Trailer Sets being ready by May 1920, but in
view of still rising traffic a further four bogie block trains were then
authorised for conversion to bring the total of Trailer Sets up to eighteen,
and a further three were taken for conversion in October 1922 bringing the
total of new Trailer Sets up to twenty four.
Twelve
of the steam bogie-block trains were therefore modified at Eastleigh to form
the Trailer Sets, these vehicles thereby having the same body styles as the 3
Car Motor Units after conversion.
The
vehicles had been built at Eastleigh between March 1904 and September 1912 and
were mounted on wooden underframes with steel channel solebars. The
7-compartment Brake Thirds became 9-compartment vehicles with two new
compartments replacing the former van area, these new compartments being
5' 8" wide whilst the original seven were 5' 6" wide. They
now weighed 22 tons 18cwt.
Once
again vehicle lengths differed, twelve of the vehicles were 49' over bodywork
(51' 7" over buffers) whilst the remainder were 51' long
(53' 7" over buffers). The Trailer Sets were formed with an 8‑compartment
coach (eighty seats) coupled to a 9‑compartment one (ninety seats),
alternate sets being formed with a shorter underframe vehicle, sets therefore
being either 105' or 107' long. Overall width was 8' 10½" and they
weighed 45 tons 12cwt (107' ones) or 45 tons 8cwt (105' ones)
and seated one hundred & seventy third-class.
The
Composites had all eight compartments downgraded to third-class, the
49' former Tri‑Composites having three compartments 6' 6"
wide, three 5' 10" wide and two 5' 6" wide, whilst the 51'
Tri‑Composites had four at 6' 6" and four at 6' 0"
wide, though one vehicle was taken from a different batch of 51' Bi‑Composites
having five 6' 6" and three 5' 10" compartments. The
49' coaches now weighed 22 tons 14cwt whilst the 51' coaches
were 22 tons 18cwt.
Braking
Systems
Modifications
consisted of altering the braking from vacuum to the quick‑acting air
system of the 3 Car Motor Units and converting the heating and lighting to work
with power supplied from the 3 Car Motor Units via the jumper connections.
Power
Supply
Batteries
where fitted were removed as these were no longer required. No shoegear was
fitted to these Trailer Sets, nor were any driving cabs provided, the outermost
vehicle ends were fitted with waist height jumper connections for heating,
lighting and through-control purposes, the air braking connections remaining at
low level adjacent to the screw coupling. Cables connecting the power jumpers
of the 3 Car Motor Units were run along the coach roofs rather than underfloor
as on the 3 Car Motor Units.
Passenger
Accommodation
All
accommodation was now third-class, though due to the origins of the vehicles,
the former first and second class compartments were
wider than the original third class ones.
Couplings
Coaches
were close‑coupled with the LSWR type block‑train steel disc and
drawbar coupling, later replaced by the SR style centre buffer and three link chain, and the former van space end of the 9‑compartment
coach was outermost, with the wider former first‑class compartments of
the 8‑compartment coaches also being outermost.
Former
Composites also had conventional buffing gear fitted at what became the outer
end of the Trailer Set. All coaches retained their original LSWR fixed
bolster bogies on conversion.
Depots
They
were initially maintained with the 3 Car Motor Units at Durnsford
Road and Strawberry Hill.
Smoking
The
8‑compartment coaches contained two non-smoking compartments, these being
the third one in from each end of the coach, whilst the 9
compartment coach had three, located as the second from each end and the
centremost one.
Into
Service
The
first Trailer Sets were ready for use from the summer of 1920 and were
allocated set numbers T1-T24 by the LSWR, but became Trailer Sets 1001-1024
following formation of the Southern Railway in 1923. However, the vehicles were
not renumbered until they required repainting; this started in 1926 with the
last being done as late as August 1931.
The
LSWR numbered the 9‑compartment coaches 7401 /7404 /7405 /7408 /7409
/7412 /7413 /7416 /7417 /7420 /7421 /7423 then odd numbers up to 7447. The 51'
long 8‑compartment vehicles were numbered 7402 /7406 /7410 /7414 /7418
/7424 /7428 /7430 /7436 /7438 /7440 /7446 whilst the 49' vehicles became
7403 /7407 /7411 /7415 /7419 /7422 /7426 /7432 /7434 /7442 /7444 /7448.
The
rather haphazard way the sets were numbered stems partly from the fact that
they were delivered in three batches, the first ten in 1920, a further batch of
eight followed late in 1921 and the final six not delivered until early 1923,
and the numbering of different vehicle types in one number range. The SR
renumbered all the coaches into a new series between 8901 and 8948 and
rearranged them into individual types within this series. The new numbers were
then:
9‑compartment coaches
8925-8948.
51' 8‑compartment coaches
8913-8924.
49' 8‑compartment coaches
8901-8912.
The
9‑compartment trailers were allocated diagram number 722 whilst the 8‑compartment
trailers (49' bodies) became diagram number 720 and those with
(51' bodies) became diagram number 721.
Livery
Coaches
were renumbered as they became due for a general overhaul and were repainted
into SR dark green at this time.
Bogie
Modifications
The
ex. LSWR fixed bolster bogies did not ride that well and accordingly were
rebuilt with moving bolsters, this work being authorised by H.O. 391 dated 8th
November 1928, which also included the trailer bogies of the ex. LSWR 3 Car
Motor Units nos.1201-1284. This work was completed by August 1933.
However,
these bogies continued to give trouble as they wore out, and a further order,
H.O. 809 dated 23rd March 1934 authorised the provision of
one-hundred new ‘standard’ bogies to re‑equip this whole batch of Trailer
Sets and provide a few spares.
Lighting
Jumpers
These
Trailer Sets did not originally have the central lighting jumper found on other
suburban stock batches as they ran with the ex. LSWR and Guildford
/Dorking units which were also not so fitted when new. They were modified from
about 1934 when the ex. LSWR units were rebuilt on longer underframes and made
more standard with all the other units, the Western Section units then becoming
common-user with the remainder of the suburban fleet from 1938.
Planned
Rebuilding
It
was planned to rebuild these Trailer Sets in a similar manner to the ex. LSWR 3
Car Motor Units, and Eastleigh were given H.O. 1007 dated 17-Dec-37 for
rebuilding of one set onto standard underframes. However, this was cancelled
from 20-Jul-38 and none were rebuilt.
Wartime
& Reformations
Two
sets were withdrawn following accident damage, two others were damaged during
the war and not repaired and one was used for wartime
purposes with the bodies grounded following accident damage, the remainder
surviving in traffic until all were withdrawn between 1946 and 1949 and
scrapped, the bodies at Lancing and underframes mostly in the London area,
during the large scale reorganisation of the suburban fleet into 4-car motor
units. A handful of this batch lasted until the end of Trailer Set operation on
the SR on 26th September 1948.
The
original formations of the LSWR sets is shewn below,
followed by the new SR set number and the date the set was renumbered along
with the works where this was carried out. Dates sets entered traffic are shewn
below the set number in the second table.
The
SR formations show the original LSWR coach in brackets below the SR number.
|
