Southern Railway
6 PUL /6 CITY
(Nos.3001-3020
& 3041-3043)
|

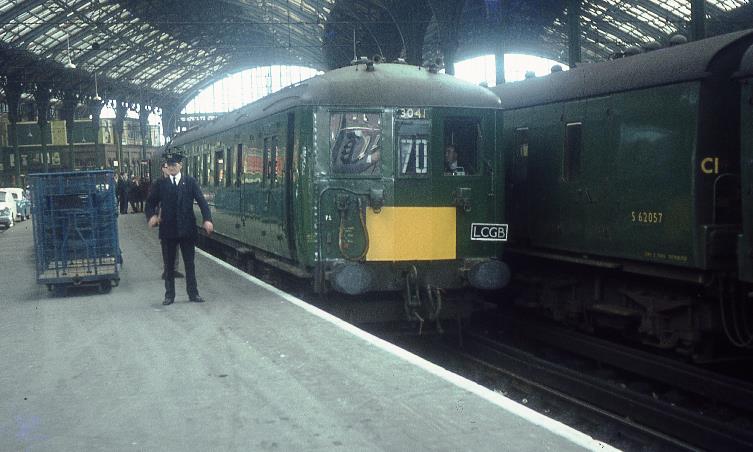

Approaching 4pm on
Sunday 24th April 1966 and 6 CITY unit no.3041 working the L.C.G.B.
(Croydon Branch) ‘The PUL /PAN Farewell Rail Tour’ (alongside green-liveried
4 BIG 7035) awaiting departure from Brighton for the final leg to Victoria. With the late
delivery of 4 BIG unit nos.7047 & 7048, this unit continued in service as
a standby for another month and saw occasional use on the 14:25 Brighton to
Victoria returning on the 17:23 Victoria to Brighton with Pullman car ‘Alice’
in use. ©
BloodandCustard |
Express Electric
Trains
for the Brighton Line
Alongside
the construction of the 4 LAV units in 1931 /1932 for the semi-fast and
stopping services on the newly electrified Brighton line, came the twenty-three
6-car corridor units for the express services. These comprised twenty
6 PUL units and a further three 6 CITY units which had a higher
proportion of first class seating for use on certain
business trains.
Experimental
Unit No.2001
Prior
to the introduction of the production units, an experimental unit numbered 2001
was operated on the Brighton Line in the autumn of 1932. It consisted of three
modified steam-hauled coaches and a Pullman with a new motor coach at each end,
similar to those which eventually appeared on the
production units.
Built
in October 1931 to HOO order number 590, these motor coaches were numbered
11001 & 11002 and were of all-steel construction. 11001 was built by Birmingham
Railway Carriage & Wagon Company Ltd whilst 11002 came from Metro-Cammell. Each was were
65' 11" long, weighed 57 tons and were equipped with four
BTH 163 225hp motors with Metro-Vick control equipment.
To
diagram no.2108, car 11001 had flat sides without the lower tumblehome found on
11002 (diagram no.2109) and all the production vehicles, this being due to a
final decision on the body shape of main line electric stock only being
finalised after these vehicles had been delivered for comparison with the
main-line curved profile being preferred.
The
motor bogies on these two experimental motor coaches differed from the
production cars by having a smaller journal size of 10" x 5½", the
remainder having 11" x 5½" journals.
At
the leading end was the motorman's cab entered by inwards opening door,
followed by the guard's brake 8' 7¾" wide, a vestibule with side
access doors, then a seven bay passenger saloon seating 56 and another entrance
vestibule. Sliding doors divided the passenger saloon from the end vestibules.
These two motor coaches were completed in October 1931 and were subsequently
incorporated into two of the 6 CITY units, one each to unit no.3041 &
3042.
|

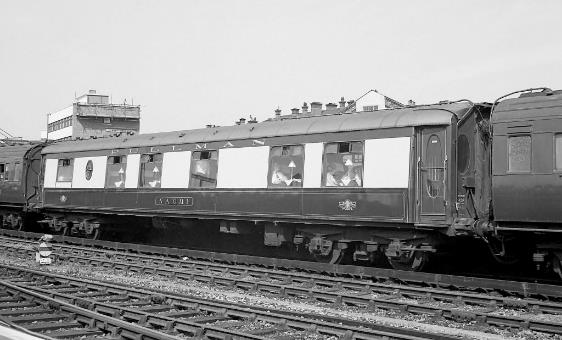

Pullman car schedule no.276 (Naomi with late Pullman
crest in unit no.3011) at East Croydon in 1965. Due to poor condition, Naomi
was replaced by schedule no.268 (Peggy) on 19th August 1965. Car
schedule no.276 was withdrawn 30th
October 1965 and sold for scrap to A. King Ltd. at Norwich on 18th
June 1966. |
Production
Units
The
main batch of 6 PUL and 6 CITY sets commenced service at the start of
1933 (though many were ready earlier) the first trial runs taking place in
October 1932 with units nos.2013 (first into traffic) and 2002.
Unit
no.2013’s pair of motor coaches were built by the Metropolitan Cammell
Carriage, Wagon & Finance Company Ltd (MCW)
trading as Metro-Cammell and unit no.2002 pair of
motor coaches were built by Birmingham Railway Carriage & Wagon Company Ltd
(BRCW).
All
the trailer coaches were built at Eastleigh and the units were marshalled with
the corridor sides of the three ordinary trailers all to the same side. The
Pullman cars were all built by Metro-Cammell at
Birmingham.
Motor
Coaches
The
order for the forty-four Motor Coaches was again split between BRCW
(11003 ‑ 11024) and Metro‑Cammell
(11025 - 11046). These vehicles were similar to experimental motor coaches 11001
& 11002, but differed by having a wider guard's
brake (10' 6½") which reduced the passenger saloon to 6½ bays and the
seating capacity to 52. The odd half-bay was situated at the van end of the
saloon and there was a partition towards the centre of the coach dividing the
saloon into 3 and 3½ bays. Smoking was permitted in the larger 3½ bay saloon.
Electrical
equipment was identical, but the vehicles were heavier at 59 tons, these
vehicles being to diagram No. 2107. Both motor bogies had shoegear fitted,
these bogies complete with motors weighing just under 16 tons. Bogies were
at 44' 6" centres and the vehicles were 63' 6" long over
bodies, 66' 2¾" over buffer faces. These motor coaches, like the
prototypes, were unusual in having non-standard box girder underframes without
any lower trussing.
Each
motor coach was fitted with a 5kw motor generator to supply 70v current for
lighting and control purposes, and emergency batteries were fitted in racks
between the cab and guard's compartment to supply train lighting for about 30
minutes in the event of the main supply being lost.
Trailer
Third Cars
The
four Corridor Trailer Third Cars in each unit consisted of a trailer third
(TTK), a trailer composite (TCK), a Pullman composite (PC) and another TCK.
The
TTK had eight full compartments each seating eight and a coupe
(half compartment) seating four. Full compartments were 6' 3"
wide whilst the coupe was 4' 5" wide. There was a lavatory at each end,
all joined by a side corridor, and the coach seated 68 third class passengers.
It weighed 35 tons and was 63' 6" long, (66' 2¾" over
buffers) and was marshalled in the unit with the coupe compartment at the
opposite end to the adjacent MBT. Smoking was permitted in the three
compartments at the MBT end of the coach and also the
three full and coupe compartment at the opposite end. Each compartment had a
side access door and there were four along the corridor side spaced opposite
the partitions of alternate compartments. The diagram No. 2010 was
allocated to these vehicles. Bogie centres were again at 44' 6" and
each trailer bogie weighed just under 7¾ tons, being of the ‘equalising
beam’ type.
Trailer
Composite Cars
The
two Corridor Trailer Composite Cars each had five first-class compartments
seating six and three third-class compartments seating eight. Third-class
compartments were again 6' 3" wide whilst the firsts were
7' 1¾" wide. Smoking was allowed in the two third-class compartments
at each end of the group of three and also in the two
first-class compartments adjacent to the third-class and the last one at the
opposite end of the coach. A side corridor was again provided as was a lavatory
at each end. The seating capacity was 30 first and 24 third.
Side
access doors were again provided in each compartment, there being five doors
along the corridor side, from the first class end
these being located opposite the partition of the first and second
compartments, opposite the doorway of the third and opposite the partition of
forth /fifth, the final two being opposite the partitions of the third class compartments.
A swing door in the corridor divided the first and third
class sections of the coach.
The TCK marshalled between the Pullman and the motor coach had
the first class end adjacent to the motor coach, the other had the first class
end adjacent to the Pullman
Weighing
36 tons and 63' 6" long (66' 3" over buffers) with
identical bogies to the TTK vehicles the TCK cars were to diagram No. 2309.
An
unusual feature of the side corridor trailers in the 6 PUL and 6 CITY
units (which was also found in the corridor trailer of the 4 LAV units)
was the double opening sliding doors separating the compartment from the
corridor. Also, the motor coaches had side windows which opened with a patent
balance system and the ventilation louvre was set above them. These features
were not perpetuated in the later 6 PAN sets.
Both
TCK and TTK cars were of steel panelled construction on a hardwood framing and
had timber and canvas roofs, all mounted on a heavy steel underframe built at
Ashford, whilst the bodies were constructed at Eastleigh works. The underframes
for all the 6 PUL trailers were to order No. HO 3275, the bodies
being to Order No.570.
Pullman
(Trailer Composite) Cars
Like
the motor coaches the Pullman (Trailer Composite) Car was of all-steel
construction and was built by Metro-Cammell. Each
comprised a vestibule with inwards opening doors, a small pantry followed by a
third-class saloon with 16 seats, a lavatory, a first-class compartment for
four, a first-class saloon with 8 seats, the kitchen & pantry area and another entrance vestibule. The short side-corridor
past the lavatory and first-class compartment area was on the opposite side to
that past the kitchen /pantry area. Each Pullman car weighed 43 tons and
was 68' 8¾" long over buffers, again having identical bogies to the
other trailer coaches in the unit.
Kitchen
equipment in the Pullman cars was all electric and supplied with 110v current
from a 20kw motor generator mounted below the underframe.
All
Pullman cars were allocated ‘schedule numbers’ in the Pullman 2xx series
from 263 to 278 and 294 to 300 (these numbers being carried on a cast steel
plate on the vehicle end). All these Pullman cars carried names.
When
built, the Pullman cars had some of their interior fittings supplied by
different contractors so not all were identical inside thus provide variety in
decor. All cars were mounted on equalising beam bogies, these not giving a very
smooth ride and following increasing complaints about poor riding and
deterioration of these bogies, a replacement programme was authorised in late
1955 to replace them with conventional leaf sprung bogies; all units were
fitted with these by 1958. Whilst units were being modified, some Pullman cars
were used in 6 PAN units for short periods. Bogies were modified at
Brighton works and exchanged at Peckham Rye shops.
Pullman
Car Names & Schedule Numbers
|
Sch. |
Name |
Sch. |
Name |
Sch. |
Name |
|
263 |
Ida |
264 |
Ruth |
265 |
Rose |
|
266 |
Violet |
267 |
May |
268 |
Peggy |
|
269 |
Clara |
270 |
Ethel |
271 |
Alice |
|
272 |
Gwladys |
273 |
Olive |
274 |
Daisy |
|
275 |
Anne |
276 |
Naomi |
277 |
Lorna |
|
278 |
Bertha |
294 |
Brenda |
295 |
Elinor |
|
296 |
Enid |
297 |
Grace |
298 |
Iris |
|
299 |
Joyce |
300 |
Rita |
|
|
|

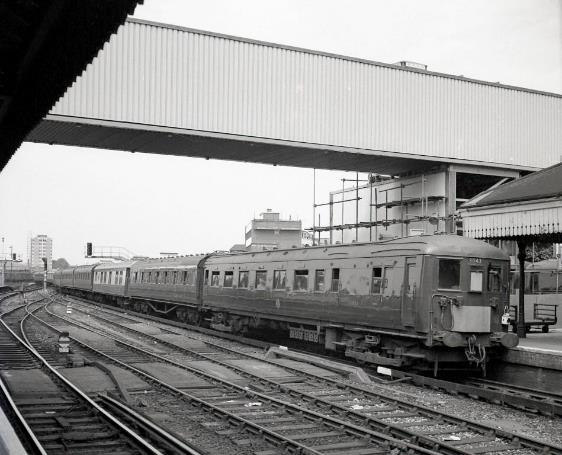

Now
classed as a 6 PUL, former 6 CITY unit no.3043 leaves East Croydon platform 3
with an Ore /Eastbourne to Victoria train c.1965. Many of the original
Brighton Express stock units did not receive small yellow warning panels Note
the long-gone centre sidings between platforms 2 and 3 above the station’s
subway (now out of use). The
scaffolding alongside the new Post Office bridge would not now conform to
current safety requirements. |
6
CITY Units
The
three 6 CITY sets differed from the 6 PUL units in that the three
ordinary trailers were corridor firsts, each with seven 6 seat compartments and
a lavatory at each end. Each compartment was 7' 1¾" wide. These
coaches seated 42 first and weighed 34½ tons. They were also slightly
shorter than the 6 PUL trailers at 59' 0" (61' 8¾"
over buffers) and bogie centres were at 40' 0".
All
compartments had side access doors, there being four along the corridor side
located opposite the partitions between the first /second, third /forth, forth /fifth
and sixth /seventh compartments. The diagram number of these vehicles was 2506,
and the underframe order number was HO 3276 with the bodies again to order
No. 571. Smoking in all three of these coaches was permitted in three
compartments at one end and two at the other. One 6 CITY set (2043)
therefore seated 138 first and 120 third (12F and 16S in the Pullman
again). Units weighed 264½ tons and were 385' 6" long. They were
numbered 2041 ‑ 2043 but this was altered to 3041 ‑ 3043
from January 1937.
However,
units nos.3041 and 3042 both included one of the experimental 56 seat
motor coaches mentioned earlier and this increased their third
class seating capacity to 124 whilst reducing their overall weight to
262½ tons.
Into
Traffic
Sets
of trailers cars were ready at Eastleigh before the delivery of the Pullman and
motor coaches and entered service in numbered triples in the order that the
units entered traffic (i.e. unit no.2013 first into traffic with 10001 /11751/
11752), so trailer coaches were not allocated to units in any numerical
sequence.
The
6 PUL units were numbered from 2001 ‑ 2020 but were
renumbered 3001 ‑ 3020 in January 1937. The overall length of
these sets was 399' 0" and their total weight was 268 tons. They
seated 72 first and 236 third of which 12 first and
16 third were in the Pullman car.
Units
were coupled by means of side buffers and screw couplings, not the buckeye
automatic couplers fitted to contemporary steam stock.
Prior
to the introduction of the 6 PAN units for the Eastbourne /Hastings electrification
scheme, these units were described in operating publications as 6 COR, the
5-car all-Pullman units being 5 PUL. Those trains rostered to be covered
by one of the 6 CITY units were also shown as 6 COR with a footnote
specifying units nos.2041 ‑ 2043. Once the 6 PAN units
were in service the units were then shown as 6 PUL for the remainder of their
lives, the all‑Pullman units then being shown as
5 BEL.
|

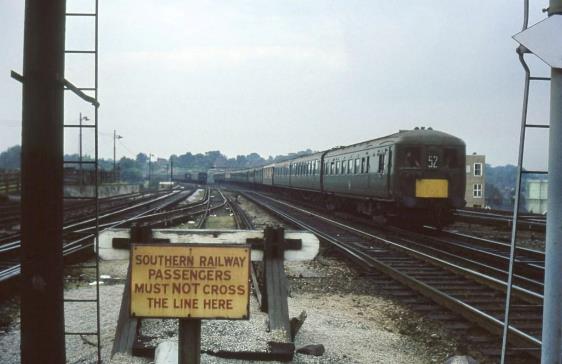

Two 6 PUL units running together wasn’t particularly
common; here units nos.3013 & 3009 approach Haywards Heath forming the 4.48pm
Victoria - Ore service on Monday 6th July 1964. |
In
Service
From
new these units worked the hourly fast trains from Victoria to both Brighton
and West Worthing, whilst the 6 CITY units were used on rush hour
services to and from London Bridge. There were seventeen workings for the
6 PUL units and a further two for the 6 CITY units.
Following
the electrification of the lines to Seaford, Eastbourne
and Hastings in 1935, units then worked in conjunction with the 6 PAN
units provided for this scheme and ran through to Ore. They also ran on from
West Worthing to Littlehampton following the electrification of this section in
1938, again often coupled to 6 PAN units.
By
January 1935, the 6 CITY units were used as follows:
One unit worked the front
portion of the 8.30am West Worthing to London Bridge, then running empty to /from
Selhurst depot and formed the rear portion of the 5.4pm London Bridge to Hove,
whilst the other unit formed the rear portion of the 8.45am Brighton to London
Bridge and berthed at Peckham Rye until working the front portion of the 5.0pm
London Bridge to Brighton. Both units berthed at Lovers Walk overnight.
There was also one working on a
Saturday, a unit working with a 6 PUL unit on the rear of the 8.45am
Brighton to London Bridge, laying-over at Peckham Rye and forming the
front part of the 1.5pm London Bridge to Brighton.
In July 1939 there were two
diagrams for 6 CITY units, one working the 8.9am Littlehampton to London
Bridge (attaching to a 6 PAN at Worthing), then berthing at New Cross Gate
until running empty to London Bridge, both units then forming the 5.0pm to
Brighton.
The second diagram ran (again
coupled to a 6 PAN) on the 8.46am Brighton to London Bridge, thence empty
to New Cross Gate where the train was split, the 6 CITY remaining spare
all day until running empty to Victoria to work the 10.25pm to Littlehampton.
From
time to time one unit would deputise for a 5 BEL set on the Brighton Belle
service, and they were used occasionally for Royal specials, usually on the
Brighton line but on at least one occasion running from Portsmouth to Windsor,
unit no.3019 working this duty on 15th June 1953.
Enemy
Action
Unit
no.3017 and another unit were badly damaged by enemy action whilst undergoing
repairs at Peckham Rye Shops on 2nd October 1940 but were
repaired.
The
Pullmans were removed from the units from 4th May 1942 until 6th May
1946 for wartime storage, though some were back in use towards the end of April
1946. Some were damaged by enemy action whilst in store at Preston Park in
May 1943, May, Rita and Ruth all being particularly
affected. Other locations known to have been used for storage of these cars
were Hassocks and Coulsdon North. They did not all return to their
original unit.
The
units ran as 5 COR during this period, units nos.3001 ‑ 3020
then seating 60 first, 220 third, weighing 225 tons and being 330' 3"
long overall. In five-coach form units nos.3041 and 3042 seated 126 first, 108
third, weighed 219½ tons and were 316' 9" long overall, whilst 3043
seated 126 first, 104 third, weighed 221½ tons and was 316' 9" long.
Unit
no.3004 had three coaches damaged by enemy bombing at Lancing works in
September 1942 whilst nos.3011, 3015, 3019 and 3041 all suffered lesser damage
when Lovers Walk depot at Brighton was hit in May 1943. For a while some units
were steam-hauled at night from Brighton for overnight storage in the tunnel at
Kemp Town to protect them from enemy bombing.
A
further unit was damaged by a flying bomb blast whilst leaving Streatham Hill
sidings on 1st July 1944 whilst 6 CITY unit no.3043 was
similarly damaged whilst berthed at New Cross Gate on 7th July
1944.
All
these damaged units were quickly repaired. When the Pullman cars were restored
to the units in 1946, they had red oxide painted roofs initially, though they
were later painted silver-grey.
Post-War
Changes
Following
the war, the 6 CITY sets were altered to reduce the amount of first class accommodation. The three TFK cars in each unit
were downgraded, one to a TTK and the other two to TCK cars. The TTK now had 56
seats, and the TCK cars each had two third and five first-class compartments
and seated 30 first and 16 third. The unit totals were altered to
72 first and 212 third (unit no.3043 seated 208 third), and the
units were now classified as 6 PUL. New diagram numbers were issued for
the downgraded vehicles (formerly diag.2506) those modified to TTK becoming diag.2016,
those to TCK becoming diag.2319. This work was undertaken during overhauls at
Lancing works.
|

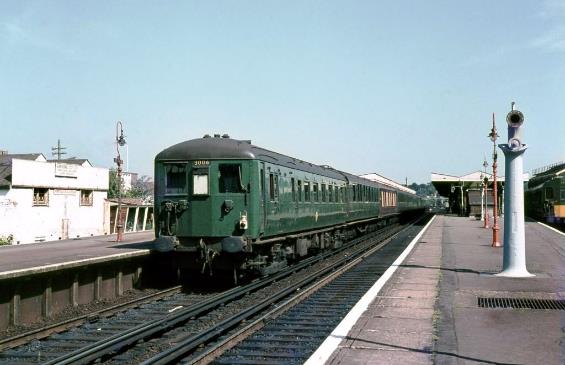

6
PUL no.3006 on the rear of the 10:08hrs Littlehampton to Victoria at Haywards
Heath on Wednesday 18th August 1965. At the time Harold Wilson was Prime Minister and ‘Help!’
by the Beatles was at the top of the music charts. |
Liveries
All
units were painted in standard SR green livery with quite complex lining out
with the Pullman cars in the usual chocolate and cream livery of that company,
again with lining out in red and gold and carrying the company crest on the
coach sides at each end with the vehicle name in the centre. The units received
a simpler livery without the ornate lining out during the war years and were
painted into the lighter malachite green at this time.
From
1951 overhauled units were turned-out in a slightly darker ‘Southern Region’
green.
When
Second
Class was abolished on 3rd June 1956
Third Class was renamed Second Class with and the
coaches were reclassified at this time so the trailer third (TTK) became a
trailer second (TSK) etc.
Units
started to receive small yellow warning panels on cab ends just before
withdrawal, unit no.3013 being the first in March 1964 with yellow ‘UIC’
cantrail bands denoting the first-class accommodation being applied at this
time. All units were withdrawn in green livery.
|
Courtesy Colin
Smith Collection |
Working in Multiple
Like the 6 PAN and
5 BEL units, these units lacked a nose end power jumper and if running in
multiple with units of the 4 COR /4 RES /4 BUF family, their power jumpers
were not to be coupled to the 'Shed' socket below the offside cab window (the ‘shed’
socket was not equipped
with a power jumper line fuse).

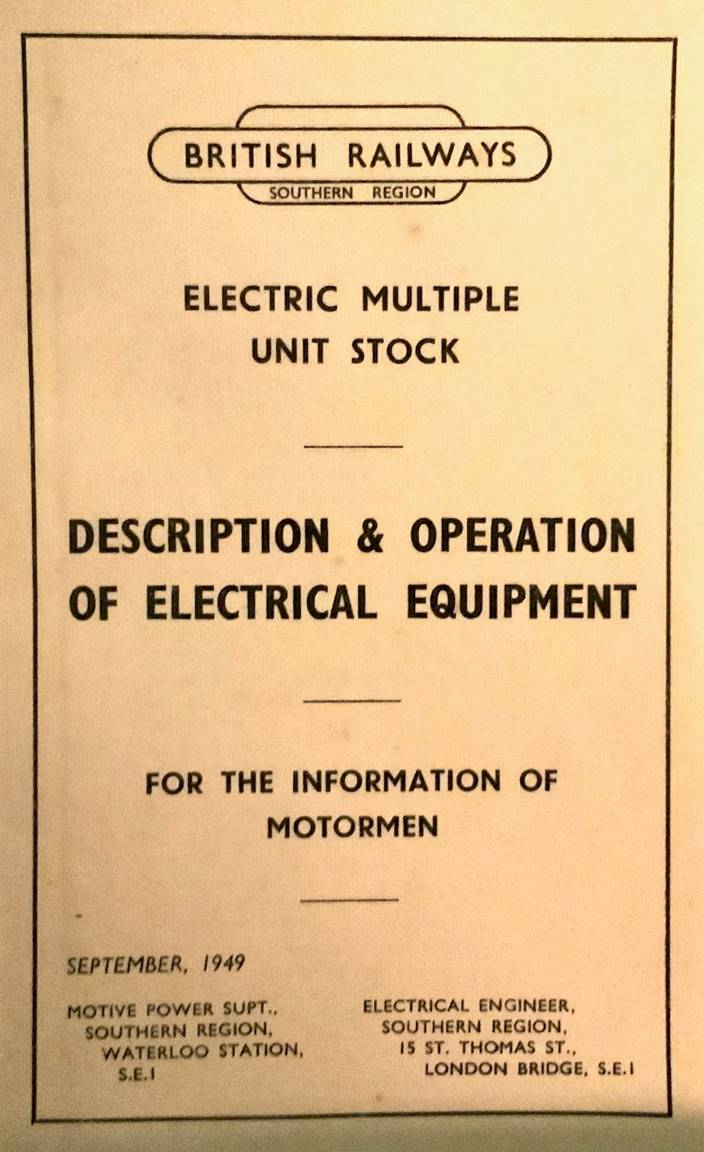

Section 4 of British
Railways (Southern Region) Electric Multiple Unit Stock ‘Description &
Operation of Electrical Equipment’ handbook included a clear instruction to
this effect “When a 4-Coach Express Type Unit is coupled to a 5- or 6-Coach
Express Type Unit, the only jumper to be connected is the control jumper. The
power jumper must NOT be used”.
Maintenance
Routine
maintenance was carried out at Lovers Walk depot and heavy body overhauls at
Lancing works. Programmed bogie changes and electrical equipment overhaul was
done at Peckham Rye or occasionally Slade Green Repair Shops, in
later years also at Selhurst Repair Shop, where unscheduled repairs were
sometimes carried out. Units requiring heavy body repair were dealt with at
Eastleigh works.
The
Pullman coaches were on a different overhaul cycle and work on these was
carried out at Preston Park Pullman Shops, units sometimes running as
5-car with no Pullman whilst their coach was overhauled, and in this form were
usually restricted to London to Littlehampton rush-hour services.
Demise
& Withdrawal
The
6 PUL units continued in use on the Central division express services
until January 1964 when five were disbanded and donated their Pullman Cars to
the short‑lived 4 PUL units, the remaining coaches going for storage
at Micheldever. The replacement 4 CIG and
4 BIG units were later being delivered than planned and this catering
reorganisation allowed the withdrawal of five of the 6 PUL units, being
indirectly replaced by spare South Eastern ‘Boat Train’ units from the
4 CEP and 4 BEP fleets being diagrammed onto the Mid‑Sussex
line services.
Units
finally started to be replaced by new 4 CIG and 4 BIG units from
March 1965 and the last units to run in their original form were disbanded
in April 1966, the final run by a working 6 PUL unit being officially on
24th April 1966 after a L.C.G.B. Railtour,
though unit no.3041 actually remained in service for
about another month being used on 14.25 Brighton to Victoria and 17.23 return
with the Pullman car in use. [British Rail introduced the 24hr clock for public timetables on 14th June 1965 – the Western Region had already changed
15th June 1964].
Unit
no.3006 was not disbanded until June 1966 and many coaches saw further service with
seven of the Pullman cars being used in the temporary 4 PUL units, whilst
other vehicles were used in the ten 6 COR units formed in 1966 and other
TSK cars were used in the final ten 4 COR units reformed from disbanded
4 RES, 4 PUL and 4 COR (N) units.
Following
withdrawal, disbanded units were stored and split-up as some coaches were
re-used almost straight away, and a number of others
were stored for possible re-use in push-pull formations on the Oxted line,
though this did not take place. Motor coaches not used again were taken to
Selhurst or Durnsford Road for electrical stripping,
some then returning to their storage locations, whilst others went direct to
scrapyards.
|

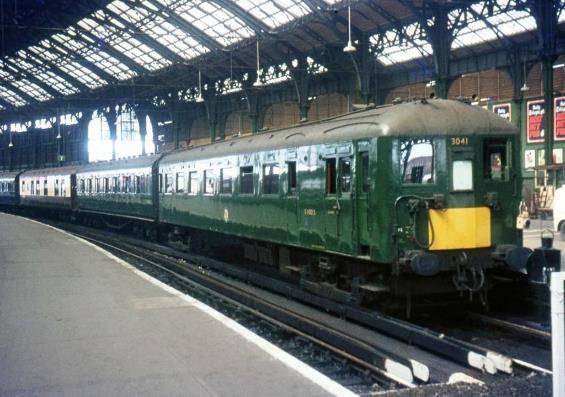

Original
prototype BRCW MBS car number 11001 (with flat slab sides) in 6 PUL unit no.3041
(ex.6 CITY) with at Brighton during the 6 PUL /PAN farewell tour Sunday 24th
April 1966. |
6
PUL Unit Formations
|
Unit |
MBT |
TTK |
TCK |
PC |
TCK |
MBT |
Wdn date |
|
Diag. No. |
2107 |
2010 |
2309 |
220 |
2309 |
2107 |
|
|
3001 |
11043 |
10017 |
11783 |
|
11784 |
11044 |
Apr-66 |
|
3002 |
11004 |
10002 |
11754 |
|
11753 |
11003 |
Dec-65 |
|
3003 |
|
10003 |
11756 |
Grace |
11755 |
11005 |
8-Feb-66 |
|
3004 |
11008 |
10006 |
11762 |
Elinor |
11761 |
11007 |
4-Feb-64 |
|
3005 |
11010 |
10008 |
11766 |
|
11765 |
11009 |
Apr-66 |
|
3006 |
11012 |
10011 |
11772 |
|
11771 |
11011 |
Jun-66 |
|
3007 |
11014 |
10013 |
11776 |
Violet |
11775 |
11013 |
Oct-65 |
|
3008 |
11045 |
10019 |
11788 |
Lorna |
11787 |
11046 |
12-Feb-66 |
|
3009 |
11018 |
10010 |
11769 |
Alice |
11770 |
11017 |
10-Sep-64 |
|
3010 |
11020 |
10016 |
11781 |
Daisy |
11782 |
11019 |
Nov-65 |
|
3011 |
11022 |
10018 |
11785 |
|
11786 |
11021 |
4-Dec-65 |
|
3012 |
11024 |
10020 |
11789 |
|
11790 |
11023 |
Sep-65 |
|
3013 |
11025 |
10001 |
11752 |
Brenda |
11751 |
11026 |
12-Feb-66 |
|
3014 |
|
|
11757 |
Enid |
11758 |
11028 |
4-Feb-64 |
|
3015 |
11029 |
10005 |
11759 |
Joyce |
11760 |
11030 |
4-Dec-65 |
|
3016 |
11031 |
10007 |
11764 |
Iris |
11763 |
11032 |
27-Mar-65 |
|
3017 |
11033 |
10009 |
11768 |
|
11767 |
11034 |
27-Jan-64 |
|
3018 |
11035 |
10012 |
11773 |
|
11774 |
11036 |
10-Jan-64 |
|
3019 |
11037 |
10015 |
11780 |
Peggy |
11779 |
11038 |
Oct-65 |
|
3020 |
11039 |
10014 |
11777 |
Clara |
11778 |
11040 |
10-Jan-64 |
|
Notes |
|
|
#1 |
6 PAN MBS, diag. no.2112. |
|
#2 |
6 PAN TSK. |
6
CITY Unit Formations
Unit formations of the 6 CITY units are shown twice in their
original and post-war downgraded formations (to 6 PUL) with the original number
of the downgraded TFK shown in brackets.
Original
6 CITY formations
|
Unit |
MBT |
TFK |
TFK |
PC |
TFK |
MBT |
Downgraded # |
|
Diag. No. |
2107 |
2506 |
2506 |
220 |
2506 |
2107 |
|
|
3041 |
11001+ |
12254 |
12255 |
|
12256 |
11041 |
25-Nov-47 |
|
3042 |
11002* |
12259 |
12258 |
|
12257 |
11042 |
10-May-47 |
|
3043 |
11015 |
12252 |
12251 |
|
12253 |
11016 |
23-Apr-48 |
Downgraded
to 6 PUL formations
|
Unit |
MBT |
TTK |
TCK |
PC |
TCK |
MBT |
Wdn date |
|
Diag. No. |
2107 |
2016 |
2319 |
220 |
2319 |
2107 |
|
|
3041 |
11041 |
10113 |
11862 |
|
11863 |
11001+ |
18-Jun-66 |
|
3042 |
11002* |
10114 |
11864 |
Ruth |
11865 |
11042 |
Oct-65 |
|
3043 |
11016 |
10115 |
11867 |
Rita |
11866 |
11015 |
12-Feb-66 |
|
Notes |
|
|
# |
Date 6 CITY downgraded unit to 6 PUL released into traffic from
Lancing Works |
|
+ |
56 seat MBS diagram 2108. |
|
* |
56 seat MBS diagram 2109 |
Individual
Unit Notes
6
PUL & 6 CITY
|
Unit No. |
|
|
3001 |
Unit commenced service 12-Dec-32. Pullman car Anne to 3012
after wartime storage and replaced by Bertha (ex.3012) May‑46. Bertha had been damaged by enemy action at Brighton 25-May-43.
Unit rebogied at Lancing between 8-Aug-47 and 10-Oct-47 as
prototype. Unit disbanded Apr-66 at Lovers Walk and TSK 11784 formed into
4 COR(N) no.3069 and this unit sent to Eastleigh 17-May-66 for C1
overhaul and released as 4 COR no.3167 13-Jul-66. Bertha removed for
store. These coaches removed 2/3-Apr-66 and remaining 4-cars temporarily
stored at Gatwick. Both replaced by 6 PAN TFK 12260 and
TSK 10021 (both ex.3021), these two released from overhaul at Eastleigh
3-May-66 and unit renumbered as 6 COR no.3043. 11043
reformed into 6 COR 3043 from May-66. 10017
reformed into 6 COR 3043 from May-66. 11783
reformed into 6 COR 3043 from May-66. Bertha
moved Lovers Walk to Durnsford Road 5-Apr-66 and
withdrawn 9-Apr-66, then stored at Coulsdon North and renumbered into departmental
stock as DS70261. 11784
reformed into 4 COR 3167 from May-66. 11044
reformed into 6 COR 3043 from May-66. Bertha remained at Coulsdon North until
8-Nov-69 when moved to Micheldever until sold for
preservation Feb‑73 and moved to Eastleigh 14-Feb-73. Coach at the
Ashford Steam Centre by August 1973. It was later moved to Bluebell Railway
about 1978 and converted for steam loco operation with vacuum braking and
steam heating as Pullman car Bertha once more, entering service in 1990.
After a ten-year loan expired coach sold and moved to the Swanage Railway
20-Sep-00, but little used there and moved again to the West Coast Railway
Company’s depot at Carnforth. |
|
3002 |
Unit commenced service 11-Oct-32. Pullman car Rita to 6 CITY no.3043 after wartime storage
and replaced by Olive (ex. 6 CITY no.3042). Both vehicles had been
damaged by enemy action at Brighton 25-May-43, Rita quite badly. Unit rebogied Dec‑57 and Olive used temporarily in
6 PUL no.3018 and 6 PAN no.3023 in meantime. Unit disbanded Nov-65 and to Micheldever for
reforming c.Nov‑65 and Pullman Olive and TSK 11753 removed and
replaced by 6 PAN TFK 12263 (ex,3024) and TSK 10025 (ex.3023)
and reformed unit to Eastleigh 6-Dec-65 for overhaul and released 14-Jan-66
as 6 COR no.3046. 11004
reformed into 6 COR no.3046 from Jan‑66. 10002
reformed into 6 COR no.3046 from Jan‑66. 11754
reformed into 6 COR no.3046 from Jan‑66. Olive
Withdrawn 4-Dec-65 and stored at Micheldever. To Durnsford Road for stripping Aug‑66 and sold for
scrapping to A. King Ltd. Wymondham 10-Sep-66. 11753
reformed into 6 COR no.3047 from Jan‑66. 11003
reformed into 6 COR no.3046 from Jan‑66. |
|
3003 |
Unit commenced service 18-Oct-32. MBT 11006 badly fire
damaged at Preston Park and unit to Lancing for repair 21-Dec-48 and to
6 PAN no.3026 Jun‑49 still under repair. Replaced by 6 PAN
MBT 11056 (ex.3029) and released 25-May-49. Pullman car Grace used in 6 PAN no.3021 whilst remainder
of unit being overhauled at Lancing between 13-May-52 and 9-Jul-52. Unit rebogied Feb‑57. Unit disbanded 8-Feb-66 though out of use in January and sent to Hove
then initial store at Balcombe. TSK 11756 removed and taken to Eastleigh
18-Feb-66 for overhaul and formed into 6 COR mo.3048 from Mar‑66.
TSK 11755 formed into 4 PUL no.3055 at Lovers Walk 19/20-Mar-66 and
this unit then sent to Eastleigh 5-May-66 for C1 overhaul, released as
4 COR no.3162 16-Jun-66. TSK 10003 formed into 4 PUL no.3054
at Lovers Walk and this unit then sent to Eastleigh 31-May-66 for C3
overhaul, released as 4 COR no.3161 5-Jul-66. 11056
Withdrawn 12-Feb-66 and stripped at Selhurst cMay‑66 and sold for
scrapping 2-Jun-66 to Bird Group, Bynea moving from
Norwood yard arr. Jul‑66. 10003
reformed into 4 COR(N) no.3055 (for no.3161) from 19/20-Mar-66. 11755
reformed into 4 PUL no.3055 (for no.3162) from 19/20-Mar-66. Grace
Withdrawn 12-Feb-66 and stored at Hove then Chichester and sold for scrapping
25-Jun-66 to J. Cashmore Ltd. Newport. 11756
reformed into 6 COR no.3048 from Mar‑66. 11005
Withdrawn 12-Feb-66 and stripped at Selhurst cMay‑66 and sold for
scrapping 2-Jun-66 to Bird Group, Bynea moving from
Norwood yard arr. Jul‑66. |
|
3004 |
Unit
commenced service 25-Oct-32. MBT 11008 used for tests hauling goods
wagons 8-Nov-36 in connection with development of electric locomotives. Coach
hauled 30 wagons + 25ton brake (540 tons) from Norwood Yard to Three Bridges
assisted in rear at times by K Class locomotive 2352. Both
TCK cars 11761 and 11762 and MBT 11007 badly damaged by enemy action
whilst unit at Lancing works, minus Pullman, 30-Sep-42 and repaired there and
released 9-Jan-43. Pullman
Elinor used in 6 PAN no.3022 whilst remainder of unit being overhauled
at Lancing between 10-Mar-49 and 30-May-49. Unit
rebogied Oct‑58. Unit disbanded at Lovers Walk 4-Feb-64 with Pullman Elinor removed and remaining 5
coaches to Micheldever. Both TCK cars 11761 and
11762 then used in 6-car ‘3018’ for push-pull tests. 11007 stored at Micheldever, stripped at Durnsford
Road during September 1964 and returned to Micheldever 28-Sep-64, withdrawn 19-Dec-64 sold to Bird Group, Bynea
20-Mar-65, moving 8-Mar-65, 10006 stored at Micheldever for ‘Set 304’, withdrawn 21-Oct-67 and sold for scrapping 6-Apr-68 to Armytage Ltd. Sheepbridge moving 10-Apr-68, arriving 24-Apr-68, cut-up
1-May-68. 11761 formed into 6-car set
of vehicles from 3014 /3018 /3033 for ‘push-pull’ tests and based at Farnham,
returned to Lovers Walk Sep‑64 until Oct‑64 when moved to
Hassocks, later back to Micheldever for ‘Set 308’,
withdrawn 21-Oct-67 and sold for scrapping 6-Apr-68
to Armytage Ltd. Sheepbridge moving 17-Apr-68,
arriving 22-May-68, cut-up 10-Jun-68. Elinor reformed into
4 PUL no.3057 from 4-Feb-64. 11762 formed into 6-car set of
vehicles from nos.3014 /3018 /3033 for ‘push-pull’ tests and based at Farnham,
returned to Lovers Walk Sep‑64 until Oct‑64 when moved to
Hassocks, later back to Micheldever for ‘Set 308’,
withdrawn 21-Oct-67 and sold for scrapping 6-Apr-68
to Armytage Ltd. Sheepbridge moving 17-Apr-68,
arriving 22-May-68, cut-up 6-Jun-68. 11008 stored at Micheldever,
stripped at Durnsford Road by April 1965 and
returned to Micheldever, withdrawn 15-May-65 and sold to Bird Group, Bynea
7-Aug-65, moving 27-Jul-65 from there |
|
3005 |
Unit commenced service 4-Nov-32. Unit fitted with experimental horns at solebar level during
overhaul when released from Lancing 19-Sep-51. Unit rebogied Mar‑58. Pullman car Ida ran in 6 PAN no.3031 from 3-Dec-59 until
1-Mar-60 whilst remaining coaches overhauled at Lancing. Due to poor
condition, Pullman car Ida exchanged with Ruth (ex. withdrawn no.3042)
19-Aug-65 and unit sent to Eastleigh for overhaul 4-Oct-65 and released
18-Oct-65. Unit
disbanded Apr-66 at Lovers Walk and
Pullman Ruth removed for store and TSK 11765 formed into 4 PUL mo.3054
at Lovers Walk 2/3-Apr-66 and this unit then sent to Eastleigh 31-May-66 for
C3 overhaul, released as 4 COR no.3161 5-Jul-66. Remaining 4-cars stored
temporarily at Gatwick. Both these replaced by 6 PAN TFK 12261 and
TSK 10024 (both ex.3022), these two released from overhaul at Eastleigh
3-May-66 and unit renumbered as 6 COR no.3050. 11010
reformed into 6 COR no.3050 from May‑66. 10008
reformed into 6 COR no.3050 from May‑66. 11766
reformed into 6 COR no.3050 from May‑66. Ruth
moved Lovers Walk to Durnsford Road 5-Apr-66 and
withdrawn 9-Apr-66, then stored at Coulsdon North and renumbered into
departmental stock as DS70260. 11765
reformed into 4 COR no.3161 from Jul‑66. 11009
reformed into 6 COR no.3050 from May‑66. Ruth remained at
Coulsdon North until 8-Nov-69 when moved to Micheldever
until sold for preservation to Bulmers Ltd Feb‑73
and moved to Eastleigh 14-Feb-73. Coach had suffered slight fire damage at Micheldever and moved to Swindon cMay‑73 for
overhaul though this was not carried out and coach then sold to 6000
Locomotive Association and moved to Bulmers at
Hereford and used as a static HQ. Moved to Rowden Mill, Bredenbury, Herefordshire c.Oct‑96 and then sold to
VSOE Ltd. Jun‑98 and moved again to Stewarts Lane for restoration. |
|
3006 |
Unit commenced service
11-Nov-32. Pullman car Rose damaged by
enemy action at Brighton 25-May-43. Unit rebogied Nov‑57. Pullman car Rose displaced
27-Mar-65 and withdrawn 22-May-65, sold to P. Woods 23-Oct-65 c/o Slag Reduction, Ickles,
moving from Andover in July 1965. Replaced by Iris (ex.3016). Unit given a late overhaul at
Eastleigh between 2-Sep-65 and 14-Sep-65. Unit stored at Balcombe during May
1966 as a serviceable spare. Unit disbanded Jun-66 at Lovers Walk, Pullman Iris and TSK 11771
removed for store and replaced by 6 PAN TFK 12268 and
TSK 10037 (both ex.3029) these two released from overhaul at Eastleigh
3-May-66 and unit renumbered as 6 COR 3042. 11012
reformed into 6 COR no.3042 from Jun‑66. 10011
reformed into 6 COR no.3042 from Jun‑66. 11772
reformed into 6 COR no.3042 from Jun‑66. Iris
Withdrawn 22-Jun-66 and sold for scrapping 24-Sep-66 to A. King Ltd.
Wymondham, moving from Hove. 11771
Withdrawn 21-Oct-67 and sold for scrapping 20-Apr-68 to Armytage Ltd. Sheepbridge arriving 27-Apr-68, moving from Hove. Coach
cut-up 6-May-68. 11011
reformed into 6 COR no.3042 from Jun‑66. |
|
3007 |
Unit commenced service 18-Nov-32. Pullman car Violet damaged by enemy action at Brighton
25-May-43. TCK 11775 damaged (details
unknown) and coach to Lancing for repair between 31-May-54 and 24-Jun-54
being temporarily replaced by 4 RES TFK 12244 (ex. damaged unit
no.3072), this coach seating 42 first (30 in five compartments and 12 in
the dining saloon) and weighing 33 tons, in this form the unit then
weighed 264 tons and seated 84 first and 212 second. Unit rebogied Oct‑57. Slight fire damage in ‘C’ compartment of TSK 10013 at
Victoria 6-Jun-62, repaired at Streatham Hill. Unit last used c.4-Sep-65. Unit disbanded Oct-65 at Lovers Walk. TSK 11776 reformed into
4 COR(N) no.3071 and this unit to Eastleigh 18-May-66 for C1 overhaul,
released 15-Jul-66 as 4 COR no.3168. Remainder of unit to Hassocks for
store. 11014
stored at Hassocks and withdrawn 30-Oct-65, stripped at Durnsford
Road from 16-Mar-66, sold to A. King Ltd. Wymondham 19-Apr-66, moving
from Clapham Yard 21-Apr-66. 10013
stored as loose stock at Hassocks, withdrawn 21-Oct-67 and sold for scrapping
30-Mar-68 to Armytage Ltd. Sheepbridge moving that
day, arriving 9-Apr-68, cut-up 19-Apr-68. 11775
stored as loose stock at Hassocks, withdrawn 21-Oct-67 and sold for scrapping
30-Mar-68 to Armytage Ltd. Sheepbridge moving that
day, arriving 1-Apr-68, cut-up 8-Apr-68. Violet
stored at Brighton, Hove and Hassocks, withdrawn
30-Oct-65 and sold for scrapping to A. King Ltd. Norwich 18-Jun-66. 11776
stored until reformed into 4 COR no.3168 from Jul‑66. 11013
stored at Hassocks and withdrawn 30-Oct-65, stripped at Durnsford
Road from 16-Mar-66, sold to A. King Ltd. Wymondham 19-Apr-66, moving
from Clapham Yard 21-Apr-66. |
|
3008 |
Unit commenced service 26-Dec-32. Pullman car Lorna used in 6 PAN 3023 whilst remainder of
unit undergoing E2 overhaul at Lancing between 21-Mar-51 and 16-May-51. Unit rebogied Jan‑58. Unit
disbanded 12-Feb-66 at Lovers Walk.
TSK 11787 formed into 4 COR(N) no.3065 12/13-Mar-66 and this unit
to Eastleigh 23-Mar-66 for overhaul and renumbering as 4 COR no.3164.
TSK 11788 formed into 4 PUL no.3057 19/20-Mar-66 and this unit to
Eastleigh 5-May-66 for C1 overhaul, released 27-Jun-66 as 4 COR no.3163. 11045
Withdrawn 12-Feb-66 and stripped at Selhurst c.May‑66 and sold for
scrapping 2-Jun-66 to Bird Group, Bynea moving from
Norwood yard arr. Jul‑66. 10019
stored as loose stock, at Hove Aug‑66, withdrawn 21-Oct-67 and sold for
scrapping 27-Apr-68 to Armytage Ltd. Sheepbridge
from Hassocks? 17-Apr-68, arriving
4-May-68 and cut-up 9-May-68. 11788
reformed into 4 PUL no.3057 (for 3163) from 19/20-Mar-66. Lorna
reformed into 4 PUL no.3057 from 16-Feb-66. 11787
reformed into 4 COR(N) no.3065 (for no.3164) from 12/13-Mar-66. 11046
Withdrawn 12-Feb-66 and stripped at Selhurst c.May‑66 and sold for
scrapping 2-Jun-66 to Bird Group, Bynea moving from
Norwood yard arr. Jul‑66. |
|
3009 |
Unit commenced service
6-Dec-32. Unit ran as 5 COR for a
short while during 1956 whilst Pullman car Alice under repair. Unit rebogied Aug‑57. Unit disbanded 10-Sep-64 following collision with 4 BUF 3074 at
Lovers Walk. 11018
reformed into 6 COR no.3027 from 13-Oct-64. 10010
reformed into 6 COR no.3027 from 13-Oct-64. 11769
reformed into 6 COR no.3027 from 13-Oct-64. Alice
reformed into 4 PUL no.3059 from 13-Oct-64. 11770
stored slightly damaged at Lovers Walk until Oct‑64 then moved to
Hassocks, later as loose stock at Micheldever,
withdrawn 21-Oct-67 and sold for scrapping 6-Apr-68 to Armytage Ltd. Sheepbridge moving 17-Apr-68, arriving 22-May-68, cut-up
31-May-68. 11017
withdrawn badly damaged 10-Oct-64, after a bogie change at Lovers Walk
25-Oct-64 sent to Durnsford Road for stripping by
8-Nov-64 and broken-up at Newhaven w/e 2-Jan-65, though motor bogies were recovered. |
|
3010 |
Unit commenced service 8-Dec-32. MBT 11019 damaged by enemy action (details unknown) and repaired at Lancing between 8-Nov-43 and
1-Dec-43. Pullman car Daisy rebogied May‑58, remainder of unit Nov‑58.
MBS 11020 derailed departing Victoria 1-Aug-63, repaired
at Selhurst. Unit disbanded Nov-65 and sent to Micheldever.
TSK 11782 formed into 6 PAN no.3030 from 1-Nov-65, Pullman Daisy
removed for store and both these replaced by 6 PAN coaches
TFK 12262 and TSK 10026 (both ex.3023) and reformed unit to
Eastleigh 8-Nov-65 for overhaul and released 26-Nov-65 as 6 COR no.3044. 11020
reformed into 6 COR no.3044 from Mar‑66. 10016
reformed into 6 COR no.3044 from Mar‑66. 11781
reformed into 6 COR no.3044 from Mar‑66. Daisy
stored at Micheldever, withdrawn 4-Dec-65, to Durnsford Road for stripping Aug‑66 and sold for
scrapping to A. King Ltd. Wymondham 10-Sep-66. 11782
reformed into 6 COR no.3045 from Nov‑65. 11019
reformed into 6 COR no.3044 from Mar‑66. |
|
3011 |
Unit commenced service
20-Dec-32. Unit damaged by enemy action
at Brighton 25-May-43 and repaired at the depot by 6-Jun-43. Pullman car
Naomi used in 6 PAN no.3023 whilst remainder of unit undergoing overhaul
at Lancing between 3-Mar-52 and 6-May-52. Unit rebogied May‑58. Due to poor condition Pullman
car Naomi exchanged with Peggy (ex. withdrawn no.3019) 19-Aug-65 for a
few weeks prior to unit being disbanded. Unit disbanded Dec-65 Last used c.4-Dec-65. Pullman Peggy removed and
remaining five coaches to Eastleigh arriving 2-Feb-66. Both MBSs 11021 &
11022 overhauled and released 25-Mar-66 as part of 6 COR 3048. After
some stripping, trailers 10018, 11785 & 11786 all sent for store at Micheldever. Peggy moved to Ford for initial storage. 11022
reformed into 6 COR 3048 from Jun‑66 10018 stored
as loose stock at Micheldever, withdrawn 21-Oct-67
and sold for scrapping 6-Apr-68 to Armytage Ltd. Sheepbridge
moving 10-Apr-68, arriving 6-Jun-68, cut-up 14-Jun-68. 11785 stored
as loose stock at Micheldever, withdrawn 21-Oct-67
and sold for scrapping 6-Apr-68 to Armytage Ltd. Sheepbridge
moving 10-Apr-68, arriving 6-Jun-68, cut-up 15-Jun-68. Peggy
Withdrawn 4-Dec-65 and stored at Ford, stripped at Durnsford
Road and sold for scrapping to A. King Ltd.
Wymondham 10-Sep-66. 11786 stored
as loose stock at Micheldever, withdrawn 21-Oct-67
and sold for scrapping 6-Apr-68 to Armytage Ltd. Sheepbridge
moving 17-Apr-68, arriving 22-May-68, cut-up 31-May-68. 11021
reformed into 6 COR unit no.3048 from Jun‑66. |
|
3012 |
Unit commenced service 28-Dec-32. Pullman car Bertha to unit no.3001 after wartime storage and
replaced by Anne (ex.3001) May‑46. Bertha had been damaged by enemy
action at Brighton 25-May-43. Unit briefly ran as 6 PAN c.Jun‑57 with 12503
(ex.3023) with displaced Pullman car Anne running in 3017 at this time. Unit was rebogied Sep‑57. Unit to Lancing for damage repairs (details unknown) between 17-Jul-58 and 8-Aug-58. Unit disbanded Sep-65 last used c4-Sep-65. 11024
stored at Hassocks and withdrawn 30-Oct-65, stripped at Durnsford
Road from 16-Mar-66, sold to A. King Ltd. Wymondham 19-Apr-66, moving
from Clapham Yard 21-Apr-66. 10020
stored as loose stock at Hassocks, withdrawn 21-Oct-67 and sold for scrapping
30-Mar-68 to Armytage Ltd. Sheepbridge moving that
day, arriving 1-Apr-68, cut-up 10-Apr-68. 11789
stored as loose stock at Hassocks, withdrawn 21-Oct-67 and moved for
scrapping to Armytage Ltd. Sheepbridge arriving
1-Apr-68, cut-up 5-Apr-68. Anne
stored at Hassocks, withdrawn 30-Oct-65 and sold for
scrapping to A. King Ltd. Norwich 18-Jun-66. 11790
stored as loose stock at Hassocks, withdrawn 21-Oct-67 and moved for
scrapping to Armytage Ltd. Sheepbridge 6-Apr-68,
cut-up 18-Apr-68. 11023
stored at Hassocks and withdrawn 30-Oct-65, stripped at Durnsford
Road from 16-Mar-66, sold to A. King Ltd. Wymondham 19-Apr-66, moving
from Clapham Yard 21-Apr-66. |
|
3013 |
Unit commenced service
10-Oct-32. Pullman car Brenda damaged by
enemy action at Brighton 25-May-43. Pullman car Brenda was fitted
with prototype BR standard bogies at Lancing during overhaul between 4-May-51
and 27-Jun-51 and ran trials temporarily formed into unit no.3041, it was
rebogied again at Lancing and released 1-Nov-56 and used for tests in
4 RES no.3072, the remainder of the unit being rebogied May‑57. Unit
disbanded 12-Feb-66 at Lovers Walk.
TSK 11751 formed into 4 COR(N) no.3067 12/13-Mar-66 and unit to
Eastleigh 22-Mar-66 for C3 overhaul and released as 4 COR no.3166
11-May-66. TSK 11752 formed into 4 COR(N) no.3066 12/13-Mar-66 and
unit to Eastleigh 6-May-66 for C1 for overhaul and released as 4 COR
no.3165 15-Jun-66. 11025 withdrawn
25-Feb-66 and stripped at Selhurst c.5‑66 and sold for scrapping
2-Jun-66 to Bird Group, Bynea moving from Norwood
yard arr Jul‑66. 10001 stored
as loose stock, at Hove Aug‑66, withdrawn 21-Oct-67 and sold for
scrapping 27-Apr-68 to Armytage Ltd. Sheepbridge
arriving 4-May-68 and cut-up 16-May-68. 11752
reformed into 4 COR(N) no.3066 (for unit no.3165) from 12/13-Mar-66. Brenda
Withdrawn 25-Feb-66 stored at Hove then Chichester and sold for scrapping
25-Jun-66 to J. Cashmore Ltd. Newport. 11751
reformed into 4 COR(N) no.3067 (for unit no.3166) from 12/13-Mar-66. 11026
Withdrawn 25-Feb-66 and stripped at Selhurst c.May‑66 and sold for
scrapping 2-Jun-66 to Bird Group, Bynea moving from
Norwood yard arr. Jul‑66. |
|
3014 |
Unit commenced service 14-Oct-32. Unit involved in London Bridge collision
23-Jan-48 but repaired at Lancing without reformation between 15-Apr-48 and
20-Jul-48. Unit completely derailed at Windmill Bridge
Junction 13-Feb-54 but not seriously damaged. Unit rebogied Apr‑57. Unit involved in Eastbourne collision 25-Aug-58
and MBS 11027 and TSK 10004 wrecked and withdrawn 20-Sep-58, cut-up
at Eastbourne on that date. Pullman car Enid used in no.3042 during Dec‑58.
Unit out of use until reformed 29-Nov-58 temporarily with all four trailers of
no.3015 with ‘own’ MBS 11028 and 6 PAN MBS 11075 (ex.3032). Following this mishap, a further two 4
CEP units (nos.7203 & 7204) were ordered on 13th October 1959. Further reformed 13-Mar-59 and all four trailers
returned to no.3015 and replaced by ‘own’ trailers 11757, 11758 and Enid and
6 PAN TSK 10044 (ex.3032). Repaired coaches at Lancing released
26-Mar-59. TCK 11758 had been mounted onto underframe of
6 PAN TSK 10043 during repairs at Lancing and the original
underframe later cut-up at Eastleigh w/e 11-Feb-61. Both MBS 11075
and TSK 10044 officially in no.3014 from 10-Oct-58 though in works for
repair. Unit disbanded at Lovers Walk 4-Feb-64 Pullman Enid and TSK 10044 removed,
remaining 4 coaches sent to Micheldever. Both TCK
cars 11757 and 11758 then used in 6-car ‘3018’ for push-pull tests. 11075 stored
at Micheldever, stripped at Durnsford
Road during September 1964 and returned to Micheldever
28-Sep-64, withdrawn 19-Dec-64 and sold for scrap to
Bird Group, Bynea 20-Mar-65, moving 8-Mar-65. 10044 reformed into 4 COR(N) no.3071 from
4-Feb-64. 11757 stored at Micheldever
for ‘Set 307’ then formed into 6-car set of vehicles from nos.3004 /3018 /3033
for ‘push-pull’ tests and based at Farnham, returned to Lovers Walk Sep‑64 and reformed into 6 COR no.3027 from 13-Oct-64. Enid reformed into 4 PUL no.3059 from
4-Feb-64. 11758 stored at Micheldever
for ‘Set 307’ then formed into 6-car set of vehicles from nos.3004 /3018
/3033 for ‘push-pull’ tests and based at Farnham, returned to Lovers Walk Sep‑64 and reformed into 6 COR no.3027 from 13-Oct-64. 11028 stored at Micheldever,
stripped at Durnsford Road by April 1965 and
returned to Micheldever, withdrawn 15-May-65 and sold to Bird Group, Bynea
7-Aug-65, moving 27-Jul-65 from there. |
|
3015 |
Unit commenced service 21-Oct-32. Unit painted in a bright emerald green livery at Lancing
between 14-Jan-36 and 25-Jan-36 (record
card describes this as ‘Malachite Green’) which it retained until
14-Dec-50. Pullman car Joyce damaged by enemy action at Brighton
25-May-43 and other five coaches of unit also damaged in the same incident,
repaired at the depot by 9-Jun-43. Unit rebogied Jun‑58. MBS 11029 damaged (details
unknown) about October 1958 and unit out of use. MBS 11030
temporarily exchanged with damaged 11033 (ex.3017) from 30-Oct-58 until
29-Nov-58, and all four trailers used temporarily as part of unit no.3014
from 29-Nov-58 until 13-Mar-59 when unit back to use in original formation. Unit disbanded 4-Dec-65 and reformed at Durnsford
Road 5-Jan-66 and Pullman Joyce and TSK 11760 removed for stripping and
replaced by 6 PAN TFK 12265 and TSK 10032 (both ex.3026) and
unit to Eastleigh 8-Jan-66 for overhaul, released 18-Feb-66 as 6 COR
no.3049. 11029
reformed into 6 COR no.3049 from Feb‑66. 10005
reformed into 6 COR no.3049 from Feb‑66. 11759
reformed into 6 COR no.3049 from Feb‑66. Joyce
Withdrawn 4-Dec-65 and moved to Durnsford Road for
stripping 5-Jan-66 then stored at Andover and sold for scrapping to
A. King Ltd. Norwich 18-Jun-66. 11760
moved to Durnsford Road for stripping 5-Jan-66 then
stored at Andover Mar‑66, withdrawn 21-Oct-67, sold for scrapping
22-Mar-68, to Basingstoke 29-Mar-68 to Armytage Ltd. Sheepbridge
17-Apr-68, arriving 13-May-68, cut-up 21-May-68. 11030
reformed into 6 COR no.3049 from Feb‑66. |
|
3016 |
Unit commenced service 28-Oct-32. Unit (also 6 PAN no.3034) fitted with experimental EP
brakes during overhaul at Lancing between 22-Aug-47 and 13-Oct-47, this
equipment then removed about June 1949 for further use in the 4 DD units
being built. Whilst under conversion, Pullman Iris spare and displayed as
part of Lancing works flower show 7-Sep-47. Unit rebogied May‑58. Unit disbanded 27-Mar-65 moth MBS cars stripped at Durnsford
Road by May and hauled to Micheldever c.18-May-65.
All trailers (including Pullman Rose ex.3006) to Hassocks. 11031
stored at Micheldever, withdrawn 15-May-65 and sold
to Bird Group, Bynea 7-Aug-65, moving 27-Jul-65. 10007
reformed into 4 COR 3160 at Eastleigh from Aug‑65. 11764
reformed into 4 COR 3160 at Eastleigh from Aug‑65. Iris
reformed into 6 PUL 3006 from 27-Mar-65. 11763
stored as loose stock at Hassocks, withdrawn 21-Oct-67 and sold for scrapping
30-Mar-68 to Armytage Ltd. Sheepbridge moving that
day, arriving 13-Apr-68, cut-up 26-Apr-68. 11032
stored at Micheldever, withdrawn 15-May-65 and to
Bird Group, Bynea 7-Aug-65, moving 27-Jul-65. Trailers 10007 and 11764 moved from Hassocks to
Lovers Walk in July 1965 and formed between MBSs 11149 (ex.3059) and 11153 (ex.3056)
then sent to Eastleigh for overhaul arriving 23-Aug-65 where unit renumbered no.3160. |
|
3017 |
Unit commenced service 8-Nov-32. Unit damaged by enemy action at Peckham Rye Shops 2-Oct-40,
repaired at Lancing between 7-Oct-40 and 23-Nov-40. Pullman car Ruth to
6 CITY no.3042 after wartime storage and repairs and replaced by Gwladys (ex. 6 CITY no.3041), this vehicle had
been damaged by enemy action at Brighton 25-May-43. Pullman car Gwladys temporarily out of use mid-1957 and replaced by
Anne (ex.3012). Unit rebogied Jul‑58. MBS 11033 damaged about October 1958 (details unknown) and temporarily
exchanged with 11030 (ex.3015) from 30-Oct-58 until 29-Nov-58. Pullman car Gwladys temporarily back to no.3041 Mar‑60. Unit disbanded at Lovers Walk 27-Jan-64 Pullman Gwladys removed
and remaining 5 coaches to Micheldever. Later 11034
sent to Durnsford Road (paired with 11060 ex.3033)
Jun‑64 for further use as shown below. 11033
stored at Micheldever, stripped at Durnsford Road during September 1964 and returned to Micheldever 28-Sep-64, withdrawn 19-Dec-64 and sold for scrap to Bird Group, Bynea
20-Mar-65, moving 8-Mar-65. 10009
stored at Micheldever for ‘Set 302’ until reformed
into 6 COR no.3027 from Apr‑64. 11768
stored at Micheldever for ‘Set 302’ until reformed
into 6 COR no.3027 from Apr‑64. Gwladys reformed into 4 PUL no.3055 from Jan‑64. 11767
stored at Micheldever for ‘Set 302’ but not used,
withdrawn 21-Oct-67 and sold for scrapping 6-Apr-68
to Armytage Ltd. Sheepbridge moving 10-Apr-68,
arriving 24-Apr-68, cut-up 27-Apr-68. 11034
stored at Micheldever for ‘Set 306’ until reformed
temporarily into 4 COR no.3124 from 9-Jul-64 until 15-Jul-65 then
stripped at Durnsford Road, withdrawn 30-Oct-65 and moved to Andover for store 14-Dec-65, after
stripping sold to A. King Ltd. Norwich 14-May-66, moving from Clapham
Yard 5‑66. |
|
3018 |
Unit commenced service 15-Nov-32. Pullman car May to 6 CITY no.3041 after wartime storage
and replaced by Ethel (ex 6 CITY no.3043). Both vehicles had been
damaged by enemy action at Brighton 25-May-43, May quite badly. Unit rebogied Mar‑57 and Pullman car Ethel temporarily
to 6 PAN no.3023 at this time, being replaced for a while by Olive
(ex.3002). Unit disbanded at Lovers Walk 10-Jan-64 Pullman Ethel removed and remaining 5 coaches to Micheldever, then both MBSs formed around TCKs 11758 +
11759 (ex.3014) also 11761 + 11762 (ex.3004) and to Stewarts Lane for use in
push-pull tests with E5000 class electric locomotives; this ‘unit’ later sent
to Durnsford Road Jun‑64 where MBS 11036
removed for use in 4 COR no.3148 and replaced by 11060 (ex 3033)
for further use as shown below. Test unit ‘3018’ now formed as follows:
11060+11762+11761+11758+11757+11035, this unit then to Lovers Walk Sep‑64
where 11758+11757+11035 removed and put back into traffic formed in
6 COR no.3027. Other three coaches 11060+11761+11762 sent to Hassocks,
then returned to Micheldever for further store. 11035
stored at Micheldever 14-Jan-64 for ‘Set 307’ then
formed into 6-car set of vehicles from 3004/14/33 for ‘push-pull’ tests and
based at Farnham, returned to Lovers Walk Sep‑64
and reformed into 6 COR no.3027 from 13-Oct-64. 10012
stored at Micheldever 14-Jan-64 for ‘Set 304’ but
not used, withdrawn 21-Oct-67 and sold for scrapping
6-Apr-68 to Armytage Ltd. Sheepbridge moving
10-Apr-68 arriving 24-Apr-68, cut-up 4-May-68. 11773
stored at Micheldever 14-Jan-64 for ‘Set 305’ until
reformed into 4 COR no.3159 at Eastleigh from 19-Aug-65. Ethel
reformed into 4‑PUL no.3056 from 28-Jan-64. 11774
stored at Micheldever 14-Jan-64 for ‘Set 306’ but
not used, withdrawn 21-Oct-67 and sold for scrapping
6-Apr-68 to Armytage Ltd. Sheepbridge 10-Apr-68
arriving 24-Apr-68, cut-up 29-Apr-68. 11036
stored at Micheldever 14-Jan-64 for ‘Set 308’ until
temporarily reformed into 4 COR 3148 from 9-Jul-64 until 15-Jul-65 then
stripped at Durnsford Road, withdrawn 30-Oct-65 and moved to Andover for store 14-Dec-65, after
stripping sold to A. King Ltd. Norwich 14-May-66, moving from Clapham
Yard 5‑66. MBS 11036 used in 4 COR no.3148 from
15-Jul-64 (see also unit no.3017). Units nos.3148 & 3124 then ran as a
fixed eight car formation with the two PUL motor coaches at the outer ends on
the SWD until 15-Jul-65 when the two PUL vehicles sent to Selhurst c.24-Jul-65
and withdrawn 30-Oct-65. Both nos.3124 & 3148 then reverted to their
original formations. |
|
3019 |
Unit commenced service 28-Nov-32. Unit damaged (details
unknown) early March 1940, at Brighton for repairs from 5-Mar-40 then
transferred to Lancing 18-Apr-40 until released 3-May-40. Unit slightly damaged by enemy action at Peckham Rye Shops
2-Oct-40, repaired at Selhurst between 7-Oct-40 and 10-Oct-40. MBS 11037 damaged early 1945 (details unknown) and repaired at Lancing between 6-Jan-45 and
16-Feb-45. Unit rebogied Apr‑58. MBS 11038 and TCK 11779 slight damaged when unit
derailed shunting at Ore 27-Jan-64 but repaired. Pullman car Peggy exchanged with Naomi (ex.3011) 19-Aug-65
just prior to unit being disbanded. Unit disbanded Oct-65 last used c.4-Sep-65 and initially stored
complete at Lancing then Hassocks. 11037
stored at Hassocks and withdrawn 30-Oct-65, stripped at Durnsford
Road from 16-Mar-66, sold to A. King Ltd. Wymondham 19-Apr-66, moving
from Clapham Yard 21-Apr-66. 10015
stored at Hassocks, withdrawn 21-Oct-67 and sold for scrapping 30-Mar-68 to
Armytage Ltd. Sheepbridge moving that day, arriving
9-Apr-68, cut-up 17-Apr-68. 11780
stored at Hassocks, withdrawn 21-Oct-67 and sold for scrapping 30-Mar-68 to
Armytage Ltd. Sheepbridge moving that day, arriving
1-Apr-68, cut-up 10-Apr-68. Naomi
stored at Hassocks, withdrawn 30-Oct-65 and sold for
scrapping to A. King Ltd. Norwich 18-Jun-66. 11779
stored at Hassocks, withdrawn 21-Oct-67 and sold for scrapping 30-Mar-68 to
Armytage Ltd. Sheepbridge moving that day, arriving
1-Apr-68, cut-up 8-Apr-68. 11038
stored at Hassocks and withdrawn 30-Oct-65, stripped at Durnsford
Road from 16-Mar-66, sold to A. King Ltd. Wymondham 19-Apr-66, moving
from Clapham Yard 21-Apr-66. |
|
3020 |
Unit commenced service 25-Nov-32. Unit rebogied Jun‑57. Unit disbanded at Lovers Walk 10-Jan-64
by removal of Pullman Clara and remaining 5-cars of unit sent to Micheldever 12-Jan-64 where 11778 damaged in derailment
on arrival. 11039
stored at Micheldever 12-Jan-64 for ’Set 305’ but
not used, stripped at Durnsford Road by May 1965 and returned to Micheldever,
withdrawn 15-May-65 and sold to Bird Group, Bynea
7-Aug-65, moving 27-Jul-65 but detached at Basingstoke due to hot axlebox. Forward from Basingstoke 23-Oct-65. 10014
stored at Micheldever 12-Jan-64 for ‘Set 301’ until
reformed into 6 COR no.3027 from Apr‑64. 11777
stored at Micheldever 12-Jan-64 for ’Set 304’ but
not used, withdrawn 21-Oct-67 and sold for scrapping
6-Apr-68 to Armytage Ltd. Sheepbridge moving
10-Apr-68, arriving 24-Apr-68, cut-up 1-May-68. Clara
reformed into 4 PUL no.3054 from 17-Jan-64. 11778
stored at Micheldever 12-Jan-64 but damaged in
derailment on arrival, withdrawn 25-Jan-64 and broken-up at Newhaven
w/e 5-Sep-64 after a bogie swap at Micheldever. 11040
stored at Micheldever 12-Jan-64, stripped at Durnsford Road during September 1964 and returned to Micheldever 28-Sep-64, withdrawn 19-Dec-64 and sold for scrap to Bird Group, Bynea
20-Mar-65, moving 8-Mar-65. |
|
Former 6 CITY Units |
|
|
3041 |
Unit commenced service 14-Dec-32. Pullman car Gwladys to 6 PUL
no.3017 after wartime storage and replaced by May (ex. 6 PUL no.3018).
Both vehicles had been damaged by enemy action at Brighton 25-May-43.
Remaining five coaches of unit also damaged in same incident at Brighton,
repaired in depot by 12-Jun-43. Unit ran as 6-car pending return of Pullman
utilising TTK 10073 from c.May‑46 to c.Oct‑46, this vehicle newly
built to replace war losses and to 4 COR no.3119. TFK cars 12254, 12255 and 12256 downgraded at Lancing from
29-Nov-47. 12254 converted to a 56 seat TTK and renumbered 10113. 12255
and 12256 both converted to TCK cars seating 30 first and 16 third and
renumbered 11862 and 11863 respectively. Unit now seated 72 first and
212 third and reclassified as 6 PUL. Pullman car May temporarily replaced by Brenda (ex.3013) in
July 1951, this coach being fitted with prototype BR standard bogies and the
unit used (steam hauled by 32422) between Lancing and Chichester 20-Jun-51 on
tests. MBT 11041 damaged about April 1955 (details unknown) and unit to Lancing for repairs between
27-Apr-55 and 20-May-55. Unit to Lancing 11-Dec-56 for A4 repair to MBS 11001
only, other five coaches out berthed to Ford 24-Jan-57 until 11001 completed
and whole unit released 26-Feb-57. Unit rebogied Feb‑58. Unit ran briefly in Mar‑60 with original Pullman car Gwladys replacing May. Pullman car May replaced by Alice
(ex 4 PUL no.3059) at Lovers Walk 20-Jul-65 due to poor condition and
withdrawn 30-Oct-65 and stored at Hassocks until sold for scrapping to
A. King, Norwich 18-Jun-66. Unit given a late overhaul at Eastleigh between 28-Jul-65 and
13-Aug-65 and a brief damage repair at Selhurst between 17-Sep-65 and
24-Sep-65 so was the last 6 PUL in traffic in original form, being used
for a railtour on 24-Apr-66 thence retained for a
further month working the 14.25 Brighton to Victoria and 17.23 return with
the Pullman car in use, this owing to the late delivery of the final two
4 BIG units nos.7047 & 7048. Unit disbanded 18-Jun-66 at Lovers Walk and Pullman Alice and
TSK 11863 removed for store. Both replaced by 6 PAN TFK 12273
and TSK 10048 (ex.3034) these two released from overhaul at Eastleigh
3-May-66 and unit reclassified as 6 COR. 11041
reformed into 6 COR no.3041 from Jun‑66. 10113
reformed into 6 COR no.3041 from Jun‑66. 11862
reformed into 6 COR no.3041 from Jun‑66. Alice
withdrawn 22-Jun-66 and stored at Hove sold for scrapping 24-Sep-66 to
A. King Ltd. Wymondham, moving from Hove. 11863
stored as loose stock at Hassocks, withdrawn 21-Oct-67 and sold for scrapping
27-Apr-68 to Armytage Ltd. Sheepbridge arriving
4-May-68, moving from Andover. Coach cut-up 11-May-68. 11001
reformed into 6 COR no.3041 from Jun‑66. |
|
3042 |
Unit commenced service 27-Dec-32. Pullman car Olive to 6 PUL no.3002 after
wartime storage and replaced by Ruth (ex. 6 PUL 3017). Ruth was damaged
at Peckham Rye 2-Oct-40, whilst Olive had been damaged by enemy action at
Brighton 25-May-43. TFK cars 12257, 12258 and 12259 downgraded at
Lancing from 10-May-47. 12259 converted to a 56 seat TSK and renumbered
10114. 12257 and 12258 both converted to TCK seating 30 first and 16 third
and renumbered 11865 and 11864 respectively. Unit now seated 72 first
and 212 third and reclassified as 6 PUL. Unit rebogied Jul‑57. Pullman car Ruth temporarily replaced by Enid (ex.
damaged no.3014) Dec‑58. Pullman car Ruth exchanged with Ida (ex.3005)
19-Aug-65 just prior to unit being disbanded. Unit
disbanded Oct-65 last used c.4-Sep-65 and initially stored at Lancing
then Hassocks. 11002
stored at Hassocks and withdrawn 30-Oct-65, stripped at Durnsford
Road from 16-Mar-66, sold to A. King Ltd. Wymondham 19-Apr-66 moving
from Clapham Yard 21-Apr-66. 10114
stored as loose stock at Hassocks, withdrawn 21-Oct-67 and sold for scrapping
30-Mar-68 to Armytage Ltd. Sheepbridge arriving
13-Apr-68, cut-up 29-Apr-68. 11864
stored as loose stock at Hassocks, withdrawn 21-Oct-67 and sold for scrapping
6-Apr-68 to Armytage Ltd. Sheepbridge moving
30-Mar-68 and arriving 1-Apr-68, cut-up 5-Apr-68. Ida
stored at Hassocks, withdrawn 30-Oct-65 and sold for
scrapping to A. King Ltd. Norwich 18-Jun-66. 11865
stored as loose stock at Hassocks, withdrawn 21-Oct-67 and moved for
scrapping to Armytage Ltd. Sheepbridge arriving
9-Apr-68, cut-up 19-Apr-68. 11042
stored at Hassocks and withdrawn 30-Oct-65, stripped at Durnsford
Road from 16-Mar-66, sold to A. King Ltd. Wymondham 19-Apr-66 moving
from Clapham Yard 21-Apr-66. |
|
3043 |
Unit commenced service 29-Nov-32. Unit slightly damaged by V1 blast whilst berthed at New Cross
Gate 7-Jul-44 but repaired at Lancing between 13-Jul-44 and 18-Jul-44. Pullman car Ethel to 6 PUL no.3018 after wartime storage
and replaced by Rita (ex/ 6 PUL no.3002). Both vehicles had been damaged
by enemy action at Brighton 25-May-43. Unit ran as 6-car pending return of Pullman utilising TCK
11859 from c.May‑46 to c.Oct‑46, this vehicle newly built to
replace war losses and to 4 COR no.3119. TFK cars 12251, 12252 and 12253 downgraded at Lancing from
23-Apr-48. 12253 converted to a 56 seat TTK and renumbered 10115. 12251
and 12252 both converted to TCK seating 30 first and 16 third and renumbered
11866 and 11867 respectively. TCK 11866 used as part of a train of
various types of vehicle displaying new styles of BR signage at Waterloo c.Apr‑48
following downgrading. Unit now seated 72 first and 208 third and
reclassified 6 PUL. Unit rebogied Aug‑58. Unit disbanded 12-Feb-66 and sent to Hove. 11016
Withdrawn 12-Feb-66, stripped at Selhurst c5‑66
and sold for scrapping 2-Jun-66 to Bird Group, Bynea
moving from Norwood yard arr. Jul‑66. 10115
stored, withdrawn 21-Oct-67 and sold for scrapping 27-Apr-68 to Armytage Ltd.
Sheepbridge arriving 4-May-68, from Andover. Coach
cut-up 16-May-68. 11866
stored, withdrawn 21-Oct-67 and sold for scrapping 27-Apr-68 to Armytage Ltd.
Sheepbridge arriving 4-May-68, from Andover. Coach
cut-up 18-May-68. Rita
Withdrawn 12-Feb-66 and stored at Hove then Chichester and sold for scrapping
25-Jun-66 to J. Cashmore Ltd. Newport. 11867
stored, withdrawn 21-Oct-67 and sold for scrapping 27-Apr-68 to Armytage Ltd.
Sheepbridge arriving 4-May-68, from Andover. Coach
cut-up 18-May-68. 11015
Withdrawn 12-Feb-66, stripped at Selhurst c.May‑66 and sold for
scrapping 2-Jun-66 to Bird Group, Bynea moving from
Norwood yard arr. Jul‑66. |
Proposed Push-Pull Sets
During
early 1964 plans were drawn-up to utilise some recently withdrawn PUL & PAN
coaches, suitably modified and formed into 3-car ‘half sets’ which would run in
pairs as six coach trains on the ‘Oxted’ line services in push-pull
configuration with modified BRCW type 3 diesel locomotives.
The
Oxted lines had recently had nineteen new 3-car DEMU units put into service but
there were insufficient of these to cover all the peak-hour trains and some
steam loco operated services remained. At this stage there were also no
suitable electrically heated loco-hauled carriages available so the option of
using withdrawn EMU stock as a stop-gap measure was seen as a quick temporary
solution to speed-up the elimination of remaining steam worked trains, and
would also provide a possible contingency resource in the event of delays in
providing new stock for the Bournemouth line electrification, which also
entailed the provision of a large number of electrically heated stock converted
from existing Mark 1 coaches at York.
Plans
were far enough advanced for the allocation of vehicles to sets to be
worked-out, in a few cases requiring the re-trim of some TCK coaches which
would be used as TSK vehicles in these sets. Former MBS coaches would be
de-motored and now classified as trailer second brake (TSB), and presumably
modified with ETH (electric train heating) receptacles low down on the cab ends
to allow the supply of heating current from the locomotive hauling or
propelling the train. Seating totals are shown, with half sets 301 + 302
together, 303 + 304 together, similarly 305 + 306 and 307 + 308, again
presumably the sets would be semi-permanently coupled. Seating capacity of the
four trains thus formed varied slightly and sets nos.305 - 308 all included a
64 seat TSK which was a former TCK downgraded to all second and retrimmed with
the first class compartments now regarded as seating
four-aside (8 seats).
Coaches
earmarked for use in this project were all taken from the 6 PUL and
6 PAN units withdrawn at Lovers Walk in January 1964 and moved to Micheldever for storage. Overhaul and modification work on
them for conversion would have probably been done at nearby Eastleigh works had
the project continued, but no work was actually done
and some coaches were then used for other projects, several going into
6 COR units and two of the MBSs onto a temporary 8-car formation of two
4 COR units with the ex 6 PUL MBS marshalled on the outer ends. Of
those not used, they remained in store at Micheldever
until the MBS coaches were taken to Wimbledon /Selhurst for electrical
stripping prior to disposal during 1965, whilst the trailer cars were all
condemned on 21st October 1967 and sent for scrapping, mostly to
Armytage at Sheepbridge, though two were dealt with
on the SR and their underframes re-used for crane runner wagons.
Proposed formations of these sets were as follows:
|
Set No. |
Coach |
Ex.unit |
Type |
Seats |
Total Seats |
||
|
|
11069 |
3027 |
TSB |
- |
52S |
|
|
|
|
10009 |
3017 |
TSK |
- |
68S |
|
|
|
|
|
|
|
Train |
total |
72F |
264S |
|
|
|
|
|
|
|
|
|
|
|
11060 |
3033 |
TSB |
- |
52S |
|
|
|
|
10006 |
3004 |
TSK |
- |
68S |
|
|
|
|
|
|
|
Train |
total |
72F |
264S |
|
|
|
|
|
|
|
|
|
|
|
11039 |
3020 |
TSB |
- |
52S |
|
|
|
|
11774 |
3018 |
TCK |
* |
64S |
|
|
|
|
|
|
|
Train |
total |
72F |
256S |
|
|
|
|
|
|
|
|
|
|
|
11035 |
3018 |
TSB |
- |
52S |
|
|
|
|
11761 |
3004 |
TCK |
* |
64S |
|
|
|
|
|
|
|
Train |
total |
60F |
280S |
|
Notes |
|
|
* |
Coach reclassified from TCK (30F/24S) to TSK (64S)
with downgraded compartments retrimmed and altered to seat four-aside. |
|
Thanks go to research author John Atkinson,
webpage author, editorial and additional information from C.Watts
along with the many photographers listed below their images. |
ALL TEXT AND PHOTOGRAPHS
ARE COPYRIGHT
