SR Corridor Stock
Bulleid Sets 770 to 793
|

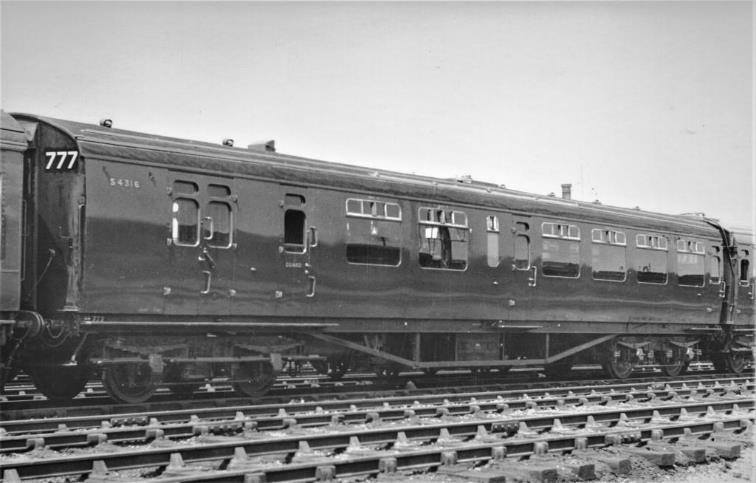

BTK S4316 (of
set 777) at Eastleigh Works on Saturday 18th June 1949. Note the recently
fitted Beclawat vents. ©
A.E. west (Mike
King collection) |
‘L’ sets 770 to 793
In 1946 the first three-coach sets of Bulleid stock to entered traffic were with 3 Cor
(three-coach Corridor) ‘L’ sets 771 to 793 (Waterloo –Salisbury – West of
England /Waterloo - Weymouth). Built to H.O order 3235, The BTK coaches were to
Diag.2123 & the CK to Diag.2318; these coaches had 10¼” sliding vents.
On Sunday, 3rd
June 1956 British Railways abolished Second-class travel and immediately
renamed Third-class to Second-class. Any remaining Third-class ‘3’ on
pre-nationalisation coach doors were removed; usually at the next varnish (A2
exam).
Set 770
Set 770 was augmented in Jun-63 as 6 RS for Waterloo –
Bournemouth – Weymouth dining services with the formation being as follows (‡
refers to not allocated to set - * semi-open type):
|
4301 |
*BSK |
|
5751 |
CK |
|
7685 |
RFO |
|
‡ |
RS |
|
1465 |
SO |
|
4302 |
*BSK |
|
Seats |
42 1st 184 2nd (plus dining) |
Set 770 was reformed and
further augmented in Jun-64
to 10-Cor ‘A’ South Western Division – Special Traffic set with further changes
for Jun-65 as follows (* semi-open type):
|
4301 |
*BSK* |
|
1496 |
SO |
|
1501 |
SO |
|
1491 |
SO |
|
1463 |
SO |
|
1503 |
SO |
|
1486 |
SO |
|
1452 |
SO |
|
1465 |
SO |
|
4302 |
*BSK |
|
Seats |
608 2nd |
Sets 771
& 772
In Summer 1963 sets 771
and 772 were reallocated as
‘T’ sets to the Central Division for London – East Grinstead – Forest Row –
Tunbridge Wells West – Brighton – Eastbourne, Reading Southern -Redhill –
Tonbridge, Brighton – Horsham services. By summer 1965 set 771 was an ‘L’ set
again with 772 withdrawn.
|

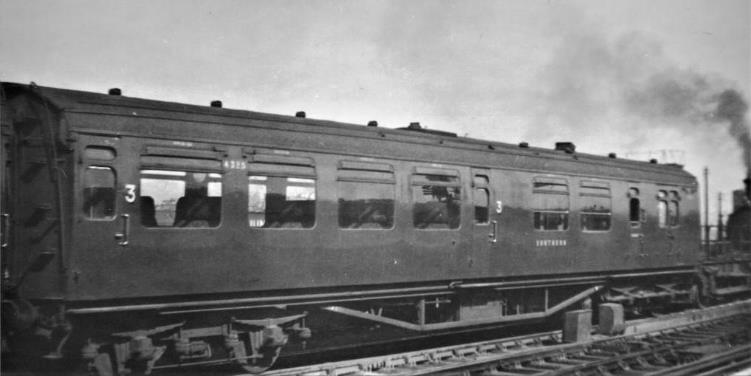

In Southern Railway
livery, BTK 4325 at Clapham Junction on Monday, 24th May 1948,
with original temporary vent hoods. At least half of the sets entered traffic
in this form. © K.G.
Carr ‘Mr Pamlin Prints’ (Mike King collection) |
Formation of Sets
|
‘L’ Set |
Formed /Reform. |
BTK No. |
CK |
BTK No. |
|
770 |
14-Nov-47 |
4301 |
5751 |
4302 |
|
Augmented |
Jun-63 |
See notes |
See notes |
See notes |
|
Augmented |
Jun-64 |
See notes |
- |
See notes |
|
Reformed |
Jun-65 |
See notes |
- |
See notes |
|
Disb. |
c.Mar-66 |
|
|
|
|
771 |
5-Dec-46 |
4303 |
5752 |
4304 |
|
Disb. |
c.Mar-66 |
|
|
|
|
772 |
11-Dec-46 |
4305 |
5753 |
4306 |
|
Wdn |
18-Apr-64 |
|
|
|
|
773 |
20-Dec-46 |
4307 |
5754 |
4308 |
|
Disb |
Sep-64 |
|
|
|
|
774 |
28-Dec-47 |
4309 |
5755 |
4310 |
|
Reformed |
c.12-Jun-62 |
" |
" |
4210‡1 |
|
Reverted |
by early-63 |
" |
" |
4310 |
|
Disb |
Sep-64 |
|
|
|
|
775 |
11-Jan-47 |
4311 |
5756 |
4312 |
|
Disb |
Sep-64 |
|
|
|
|
776 |
22-Jan-47 |
4313 |
5757 |
4314 |
|
Wdn |
c.May-67 |
|
|
|
|
777 |
8-Feb-47 |
4315 |
5758 |
4316 |
|
Wdn |
Jun-67 |
|
|
|
|
778 |
11-Feb-47 |
4317 |
5759 |
4318 |
|
Disb |
Sep-64 |
|
|
|
|
779 |
21-Feb-47 |
4319 |
5760 |
4320 |
|
Disb |
Sep-64 |
|
|
|
|
780 |
27-Feb-47 |
4321 |
5761 |
4322 |
|
Wdn |
by Sep-67 |
|
|
|
|
781 |
6-Mar-47 |
4323 |
5762 |
4324 |
|
Disb. |
c.Jun-67 |
|
|
|
|
782 |
21-Mar-47 |
4325 |
5763 |
4326 |
|
Wdn. |
Mar-64 |
|
|
|
|
783 |
27-Mar-47 |
4327 |
5764 |
4328 |
|
Disb. |
Sep-64 |
|
|
|
|
784 |
8-Apr-47 |
4329 |
5765 |
4330 |
|
Disb. |
Sep-64 |
|
|
|
|
785 |
1-May-47 |
4331 |
5766 |
4332 |
|
Disb. |
Sep-64 |
|
|
|
|
786 |
9-May-47 |
4333 |
5767 |
4334 |
|
Wdn |
c.Jun-66 |
|
|
|
|
787 |
17-May-47 |
4335 |
5768 |
4336 |
|
Wdn |
c.Jun-67 |
|
|
|
|
788 |
5-Jun-47 |
4337 |
5769 |
4338 |
|
Wdn |
c.Jun-67 |
|
|
|
|
789 |
17-Oct-47 |
4339 |
5770 |
4340 |
|
Disb. |
Sep-64 |
|
|
|
|
790 |
17-Oct-47 |
4341 |
5771 |
4342 |
|
Wdn |
Sep-64 |
|
|
|
|
791 |
27-Oct-47 |
4343 |
5772 |
4344 |
|
Wdn |
Sep-64 |
|
|
|
|
792 |
30-Oct-47 |
4345 |
5773 |
4346 |
|
Wdn |
c.Jun-67 |
|
|
|
|
793 |
14-Nov-47 |
4347 |
5774 |
4348 |
|
Disb. |
c.Jun-67 |
|
|
|
|
|
|
Notes |
|
|
|
Formation Table |
||||
|
‡1 |
Set 774 BTK 4210 (Diag.2124) new to set 795 3-Dec-47. To set 821 7-Apr-59 thence set 433 Jun-59 and set
774 c.12-Jun-62. To
‘Loose’ by early 1963 thence to W.R. Oct-64. |
|||
|
Livery Table |
||||
|
‡2 |
Third
Open 1452 outshopped Malachite new |
|||
|
‡3 |
Third Open (TO) 1465 new Eastleigh 11-Nov-50 as
‘Loose’. Into set 770 Jun-63. |
|||
|
‡4 |
Third Open (TO) 1486 new Eastleigh 8-Dec-50 as
‘Loose’. Into set 353 Nov-51 thence again ‘Loose’ Jun-54. Into set 770 Jun-64 thence ‘Spare’ Jul-65. Outshopped
Eastleigh Works in Maroon 13-Aug-65 and transferred to E.R. 14-Aug-65. |
|||
|
‡5 |
Third Open (TO) 1491 new Eastleigh 15-Dec-50 as
‘Loose’. Into set 352 Jun-51 thence again ‘Loose’ Jun-54. Into set 770 Jun-64 thence ‘Spare’ Jul-65. Outshopped
Eastleigh Works in Maroon 17-Dec-65 and transferred to E.R. 11-Jan-66. |
|||
|
‡6 |
Third Open (TO) 1496 new Eastleigh 22-Dec-50 as
‘Loose’. Into set 353 Nov-51 thence again ‘Loose’ Jun-54. Into
set 770 Jun-64. Wdn Oct-68. |
|||
|
‡7 |
Third Open (TO) 1501 new Eastleigh 5-Jan-51 as
‘Loose’. Into set 352 Jun-51 thence again ‘Loose’ Jun-54. Into
set 770 Jun-64. Wdn Aug-67. |
|||
|
‡8 |
Third Open (TO) 1503 new Eastleigh 12-Jan-51 as
‘Loose’. Into set 354 Feb-51 thence again ‘Loose’ Sep-54. Into set 770 Jun-64 thence ‘Spare’ Jul-65. Outshopped Eastleigh Works in Maroon 10-Sep-65
and transferred to Sc.R. 11-Sep-65. |
|||
|
‡9 |
Outshopped Eastleigh 17-Apr-53 as a Third Open
(TO /SO) thence upgraded May-59 (retrimmed Lancing 27-May-61) to First Open
(FO). Date of repainting unclear but probably
outshopped Green 12-Feb-57 (A2 exam). Remained ‘Loose’ until set 430 Jun-63 thence set 770 Jun-64 and ‘Loose’ Jun-65. Coach sent to ER c.Jun-67 thence wdn Sep-68. |
|||
|
Ϯ |
Set 774 has a discrepancy on the CM&EE Record
Card with date ‘in’ being 12-May-59 for an A2 exam but date ‘out’ as
30-May-58. However, with an E4 exam 8-May-56 (outshopped) and the A2 exams
every two years 1958 would sit with the A2 exam of 26-Oct-60 (outshopped). |
|||
|
* |
Set 788 outshopped ‘Plum & Spilt Milk’
on 7-Jun-48 |
|||
|
Cond. |
Condemned |
|||
|
Disb. |
Disbanded |
|||
|
Wdn. |
Withdrawn |
|||
|

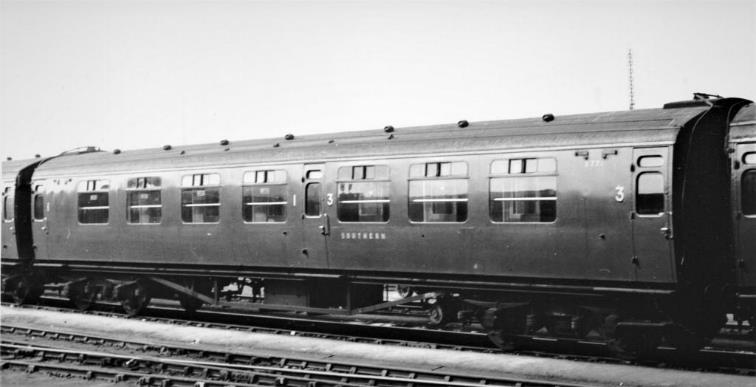

Southern-liveried
CK 5771 (set 790) at Clapham Jcn. (Saturday, 2nd
April 1949) ©
J.H. Aston (Mike
King collection – negative with Bluebell Railway Museum Archive) |
Individual Set Notes
|
Set |
Notes |
|
770 |
CK
5751 new Eastleigh Works 26-Sep-45. BTK 4301 & 4302 new Eastleigh Works
14-Nov-47. Set
undertook damage repairs at Eastleigh Works, outshopped following E4 exam
9-Apr-61. In
Jun-63 set 770 was augmented to 6 RS with the following vehicles: RFO
7685 (ex.298) SO
1465 (ex.Loose) Dining car (not allocated) In Jun-64 set 770 was reformed and augmented to
10-Cor with the following vehicles
removed from the set (dining car not allocated): CK
5751 was removed and sent to set 976. RFO 7685 was removed and sent back to set 298. with coaches new to set 770 in Jun-64 as follows: SO
1452 (ex.291) SO
1486 (ex.Loose) SO
1491 (ex.Loose) SO
1496 (ex.Loose SO
1501 (ex.Loose SO
1503 (ex.Loose FO 3504 (ex.430) In
Jun-65 set 770 was reformed with: FO
3504 removed to ‘Loose’ and replaced by SO 1463 (ex.Loose) and in Jul-65 set 770 had the following coaches
removed (although this June-July 1965 reformation presumably occurred at
once). SO
1486 removed to ‘Loose’ SO
1491 removed to ‘Loose’ SO 1503 removed to ‘Loose’ |
|
772 |
All
vehicles wdn 18-Apr-64. |
|
773 |
Set
disbanded with BSK 4307 & 4308 transferred to W.R. Oct-64 & CK 5754 wdn Oct-64. |
|
774 |
Set
undertook damage repairs at Lancing Works between 31-Mar-53 and 15-May-53. Set
undertook light repairs at Eastleigh outshopped 16-Jan-61. BSK
4310 damaged at Weymouth 18-Apr-62 with 4210 (ex.433) substituted for 4310
c.12-Jun-62. Following repairs BSK 4310 became ‘Loose’ during latter half of
1962 and was reinstated into set 774 with 4210 into ‘Loose’ stock by early
1963. Set
disbanded with BSK 4309 transferred to W.R. Oct-64 & CK 5755 Wdn Oct-64; BSK 4310 to ‘Loose’ Feb-65. |
|
775 |
BTK
4312 undertook damage repairs at Eastleigh outshopped 17-Apr-47. Set
undertook further damage repairs outshopped Eastleigh 11-Nov-47. Set
disbanded with BSK 4311 & 4312 transferred to W.R. 30-Jan-65 & CK
5755 wdn Oct-64. |
|
776 |
BTK
4314 undertook repairs at Eastleigh outshopped 19-Nov-52. Set
undertook slight repairs at Eastleigh outshopped 30-Jun-61. |
|
777 |
Set
undertook damage repairs at Lancing outshopped 22-May-59 thence again
18-Nov-63 (outshopped following E4 exam 29-Nov-63). |
|
778 |
Set
disbanded with BSK 4317 & 4318 transferred to W.R. 30-Jan-65 & CK
5755 wdn Oct-64. |
|
779 |
Set
disbanded with BSK 4319 & 4320 transferred to W.R. Nov-65 & CK 5755 wdn Nov-64. |
|
781 |
Set
undertook repairs at Eastleigh outshopped 10-Nov-53. Set
received CLC livery at Eastleigh outshopped 20-Jul-56. Following
an E exam at Eastleigh (outshopped 6-Dec-63) set received a C4 exam at
Eastleigh with vehicles outshopped as follows: BSK 4323 on 19-Aug-66, CK 5762
on 26-Aug-66 & BSK 4324 on 2-Sep-66. All vehicles withdrawn the following
year. |
|
782 |
All
vehicles wdn 16-May-64. |
|
783 |
Set
disbanded with BSK 4327 & 4328 transferred to W.R. Oct-64 & CK 5764 wdn Nov-64. |
|
784 |
Set
undertook damage repairs at Eastleigh outshopped 4-Nov-47. Set
undertook damage repairs at Eastleigh outshopped 3-Aug-61. Set
disbanded with BSK 4329 & 4330 transferred to W.R. Oct-64 & CK 5765 wdn Nov-64. |
|
785 |
Set
disbanded with BSK 4331 & 4332 transferred to W.R. 30-Jan-65 & CK
5765 wdn Nov-64. |
|
788 |
Outshopped
5-Jun-47 in post-War Malachite Green set 788 entered Lancing Works on 10-May-48
for ‘Special Renovation Painted Plum & Spilt Milk’ (as stated on
the CM&EE Record Card); it was outshopped on 7-Jun-48. Set
788 entered Lancing Works on 28-Jun-53 for an A2 Exam (lift & varnish)
with the CM&EE Record Card stating ‘ext
painted CLC’; the set being outshopped on 27-Aug-53 (Crimson Lake &
Cream). Between
16-May-55 and 27-Sep-55 set 788 attended Eastleigh for a heavy overhaul. It
appears to have received BR(S) Green during an A2 Exam at Lancing between
26-Jul-57 and 26-Aug-57. |
|
789 |
Set
disbanded with BSK 4339 & 4340 transferred to W.R. Nov-64 & CK 5770 wdn Nov-64. |
|
791 |
Set
disbanded with BSK 4343 & 4344 to ‘Loose’ Feb-65 & CK 5770 wdn 27-Jan-65. |
|
792 |
Set
undertook damage repairs at Lancing outshopped with A2 31-May-60. Set
outshopped Lancing E4 exam 23-Mar-64. |
|

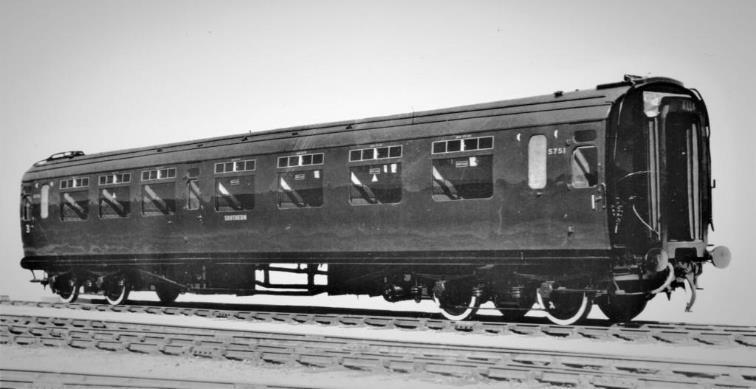

Southern
Railway official photograph in 1945 of prototype CK 5751 - note square
cornered vents. This coach was later incorporated into set 770 with BTK
coaches 4301 & 4302. ©
Southern Railway (Mike King collection) |
Liveries
On the Southern Region, coaching stock sets (and
multiple-units) were normally repainted (and varnished) as a complete set
leading to a significant degree of consistency within each set. Lancing
Carriage works was releasing repainted stock in SR Green early-February 1949
with Crimson Lake and Cream (CLC) appearing at least by March 1949.
The
Southern Region’s Lancing Carriage works was releasing repainted stock in SR
Green early February 1949 with Crimson Lake (and Cream) appearing at least by
March 1949.
With the subsequent varnishes
of Malachite Green stock, Gill Sans was adopted. Besides ‘Southern lettering, Third-class
‘3’s were removed at this time with the First-class ‘1’
being repositioned on doors.
During May 1951 a directive was issued that coach
numbers were only to be applied to the right-hand end (having previously been
positioned at the left-hand end). The repositioning of
coach numbers also occurred during subsequent varnishes
of both Malachite Green and Crimson Lake & Cream.
As an
example, from Lancing’s varnishing records it is believed (but not confirmed)
that set 790 was outshopped with Gill Sans 13th January 1950 and
right-hand number positioning 5th February 1952.
However, when permission
was given for the Southern Region to return to Green for its Corridor Passenger
stock it rapidly embarked on a programme to repaint at the A2 repair for a number of vehicles in order to accelerate the return to
Green. The last Crimson Lake & Cream vehicle (last of an eight-set) outshopped
from Lancing carriage works on 17th July 1956 (the first BR Green
set was outshopped earlier on 11th July 1956).
Where currently known,
the table below provides the outshopping paint-date of the coaches used in
these sets; for strengthened sets their original coaches all entered service in
Crimson Lake & Cream livery with replacement and augmentation coaches being
shewn in italic typeface.
Set 788 outshopped ‘Plum & Spilt Milk’ livery 7th
August 1948 (see unit notes).
Off these sets, only 770,
771, 774, 780, 781, 788, 790 & 793 received Crimson Lake & Cream livery
with the remainder being repainted from post-War Malachite into BR(S) Green.
Date of vehicle
withdrawn stated (those transferred to the W.R. are not currently known).
However, please refer to the set notes to see from what set (or ’loose’) the
coach was withdrawn.
|
‘L’ Set No. |
Coach |
Coach |
SR |
BR(S) |
BR(S) |
Wdn |
|
770 |
4301 |
BTK |
14-Nov-47 |
18-Sep-55 |
11-Jun-57 |
Dec-67 |
|
(14-Nov-47) |
5751 |
CK |
26-Sep-45 |
18-Sep-55 |
11-Jun-57 |
Jul-67 |
|
|
4302 |
BTK |
14-Nov-47 |
18-Sep-55 |
11-Jun-57 |
May-67 |
|
|
1452‡2 |
SO |
Yes |
n/k |
Yes |
Oct-68 |
|
|
1465‡3 |
SO |
No |
10-Nov-50 |
21-Nov-57 |
May-67 |
|
|
1486‡4 |
SO |
No |
8-Dec-50 |
25-Jul-57 |
E.R. |
|
|
1491‡5 |
SO |
No |
15-Dec-50 |
17-May-57 |
E.R. |
|
|
1496‡6 |
SO |
No |
22-Dec-50 |
12-Dec-57 |
Oct-68 |
|
|
1501‡7 |
SO |
No |
5-Jan-51 |
14-Feb-58 |
Aug-67 |
|
|
1503‡8 |
SO |
No |
12-Jan-51 |
12-Dec-56 |
Sc.R. |
|
|
3504‡9 |
FO |
No |
May-53 |
12-Feb-57 |
E.R. |
|
|
7685 |
RFO |
19-Feb-48 |
11-Dec-54 |
31-May-57 |
27-Feb-65 |
|
771 |
4303 |
BTK |
5-Dec-46 |
8-Sep-55 |
24-Sep-57 |
Nov-66 |
|
(5-Dec-46) |
5752 |
CK |
5-Dec-46 |
8-Sep-55 |
24-Sep-57 |
Aug-67 |
|
|
4304 |
BTK |
5-Dec-46 |
8-Sep-55 |
24-Sep-57 |
Oct-66 |
|
772 |
4305 |
BTK |
11-Dec-46 |
No |
3-Jan-57 |
18-Apr-64 |
|
(11-Dec-46) |
5753 |
CK |
11-Dec-46 |
No |
3-Jan-57 |
18-Apr-64 |
|
|
4306 |
BTK |
11-Dec-46 |
No |
3-Jan-57 |
18-Apr-64 |
|
773 |
4307 |
BTK |
20-Dec-46 |
No |
31-Jul-57 |
W.R. |
|
(20-Dec-46) |
5754 |
CK |
20-Dec-46 |
No |
31-Jul-57 |
Oct-64 |
|
|
4308 |
BTK |
20-Dec-46 |
No |
31-Jul-57 |
W.R. |
|
774 |
4309 |
BTK |
28-Dec-47 |
24-Apr-56 |
30-May-58Ϯ |
W.R. |
|
(28-Dec-47) |
5755 |
CK |
28-Dec-47 |
19-Apr-56 |
30-May-58Ϯ |
Oct-64 |
|
|
4310 |
BTK |
28-Dec-47 |
8-May-56 |
30-May-58Ϯ |
Aug-67 |
|
|
4210 |
BTK |
3-Dec-47 |
No |
Dec-57 |
W.R. |
|
775 |
4311 |
BTK |
11-Jan-47 |
No |
21-May-57 |
W.R. |
|
(11-Jan-47) |
5756 |
CK |
11-Jan-47 |
No |
21-May-57 |
Oct-64 |
|
|
4312 |
BTK |
11-Jan-47 |
No |
21-May-57 |
W.R. |
|
776 |
4313 |
BTK |
22-Jan-47 |
No |
20-Aug-58 |
Jul-67 |
|
(22-Jan-47) |
5757 |
CK |
22-Jan-47 |
No |
20-Aug-58 |
Jan-68 |
|
|
4314 |
BTK |
22-Jan-47 |
No |
20-Aug-58 |
May-67 |
|
777 |
4315 |
BTK |
8-Feb-47 |
No |
2-Apr-58 |
Aug-67 |
|
(8-Feb-47) |
5758 |
CK |
8-Feb-47 |
No |
2-Apr-58 |
Dec-67 |
|
|
4316 |
BTK |
8-Feb-47 |
No |
2-Apr-58 |
Sep-67 |
|
778 |
4317 |
BTK |
11-Feb-47 |
No |
9-Sep-57 |
W.R. |
|
(11-Feb-47) |
5759 |
CK |
11-Feb-47 |
No |
9-Sep-57 |
Oct-64 |
|
|
4319 |
BTK |
11-Feb-47 |
No |
9-Sep-57 |
W.R. |
|
779 |
4319 |
BTK |
21-Feb-47 |
No |
25-Jul-57 |
W.R. |
|
(21-Feb-47) |
5760 |
CK |
21-Feb-47 |
No |
25-Jul-57 |
Nov-64 |
|
|
4320 |
BTK |
21-Feb-47 |
No |
25-Jul-57 |
W.R. |
|
780 |
4321 |
BTK |
27-Feb-47 |
25-May-55 |
26-Jul-57 |
Nov-67 |
|
(27-Feb-47) |
5761 |
CK |
27-Feb-47 |
25-May-55 |
26-Jul-57 |
Dec-68 |
|
|
4322 |
BTK |
27-Feb-47 |
25-May-55 |
26-Jul-57 |
Sep-67 |
|
781 |
4323 |
BTK |
6-Mar-47 |
20-Jul-56 |
1-Jul-57 |
Aug-67 |
|
(6-Mar-47) |
5762 |
CK |
6-Mar-47 |
20-Jul-56 |
1-Jul-57 |
Sep-67 |
|
|
4324 |
BTK |
6-Mar-47 |
20-Jul-56 |
1-Jul-57 |
Dec-67 |
|
782 |
4325 |
BTK |
21-Mar-47 |
No |
24-Oct-56 |
16-Mar-64 |
|
(21-Mar-47) |
5763 |
CK |
21-Mar-47 |
No |
24-Oct-56 |
16-Mar-64 |
|
|
4326 |
BTK |
21-Mar-47 |
No |
2-Nov-56 |
16-Mar-64 |
|
783 |
4327 |
BTK |
27-Mar-47 |
No |
9-Jan-57 |
W.R. |
|
(27-Mar-47) |
5764 |
CK |
27-Mar-47 |
No |
9-Jan-57 |
Nov-64 |
|
|
4328 |
BTK |
27-Mar-47 |
No |
9-Jan-57 |
W.R. |
|
784 |
4329 |
BTK |
8-Apr-47 |
No |
24-Jun-58 |
W.R. |
|
(8-Apr-47) |
5765 |
CK |
8-Apr-47 |
No |
24-Jun-58 |
Nov-64 |
|
|
4330 |
BTK |
8-Apr-47 |
No |
24-Jun-58 |
W.R. |
|
785 |
4331 |
BTK |
1-May-47 |
No |
22-Apr-58 |
W.R. |
|
(1-May-47) |
5766 |
CK |
1-May-47 |
No |
22-Apr-58 |
Nov-64 |
|
|
4332 |
BTK |
1-May-47 |
No |
22-Apr-58 |
W.R. |
|
786 |
4333 |
BTK |
9-May-47 |
No |
19-May-57 |
Jul-66 |
|
(9-May-47) |
5767 |
CK |
9-May-47 |
No |
19-May-57 |
Aug-67 |
|
|
4334 |
BSK |
9-May-47 |
No |
19-May-57 |
Oct-67 |
|
787 |
4335 |
BTK |
17-May-47 |
No |
17-Oct-57 |
Nov-67 |
|
(17-May-47) |
5768 |
CK |
17-May-47 |
No |
17-Oct-57 |
Oct-68 |
|
|
4336 |
BSK |
17-May-47 |
No |
17-Oct-57 |
Aug-67 |
|
788 |
4337 |
BTK |
5-Jun-47* |
27-Aug-53 |
26-Aug-57 |
Nov-66 |
|
(5-Jun-47) |
5769 |
CK |
5-Jun-47* |
27-Aug-53 |
26-Aug-57 |
Aug-67 |
|
|
4338 |
BSK |
5-Jun-47* |
27-Aug-53 |
26-Aug-57 |
Nov-66 |
|
789 |
4339 |
BTK |
17-Oct-47 |
No |
1-May-58 |
W.R. |
|
(17-Oct-47) |
5770 |
CK |
17-Oct-47 |
No |
1-May-58 |
Nov-64 |
|
|
4340 |
BSK |
17-Oct-47 |
No |
1-May-58 |
W.R. |
|
790 |
4341 |
BTK |
17-Oct-47 |
17-Oct-55 |
1-Jul-57 |
Sep-67 |
|
(17-Oct-47) |
5771 |
CK |
17-Oct-47 |
17-Oct-55 |
1-Jul-57 |
Sep-67 |
|
|
4342 |
BSK |
17-Oct-47 |
17-Oct-55 |
1-Jul-57 |
Sep-67 |
|
791 |
4343 |
BTK |
27-Oct-47 |
No |
17-May-57 |
Sep-66 |
|
(27-Oct-47) |
5772 |
CK |
27-Oct-47 |
No |
17-May-57 |
27-Feb-65 |
|
|
4344 |
BSK |
27-Oct-47 |
No |
17-May-57 |
Dec-65 |
|
792 |
4345 |
BTK |
30-Oct-47 |
No |
3-Oct-56 |
Aug-67 |
|
(30-Oct-47) |
5773 |
CK |
30-Oct-47 |
No |
3-Oct-56 |
Aug-67 |
|
|
4346 |
BSK |
30-Oct-47 |
No |
3-Oct-56 |
Aug-67 |
|
793 |
4347 |
BTK |
14-Nov-47 |
18-Jan-56 |
12-Dec-57 |
Aug-67 |
|
(14-Nov-47) |
5774 |
CK |
14-Nov-47 |
20-Jan-56 |
12-Dec-57 |
Jul-67 |
|
|
4348 |
BSK |
14-Nov-47 |
18-Jan-56 |
12-Dec-57 |
Jul-67 |
|

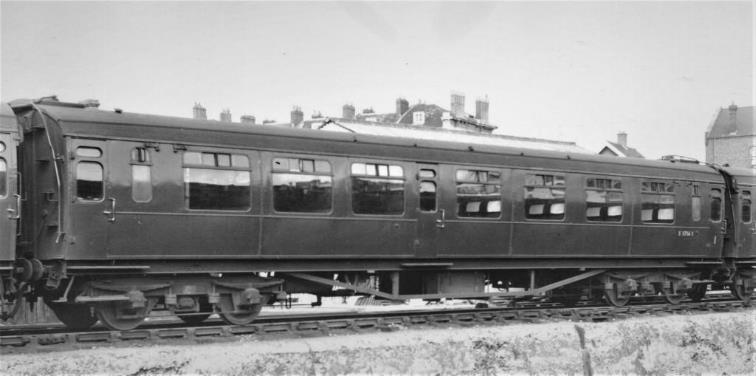

CK S5756 in
set 775 at Exeter Central on Thursday, 4th September 1958. ©
(Mike King collection) |
Diagram Numbers
Notes for ‘L’ Set
Coaches
|
Diag. |
|
|
|
|
|
|
90 |
BR Mk1 Third Open Lot no.30053 H.O.3672 dated
Oct-51. Delivered to SR Mar-53 to Jul-53 reclassified FO c.Jun-59. Nos.3500-3514. |
||||
|
2017 |
Bulleid TO (Third Open) Nos.1456-1461 had 10¼” sliding sidelight vents
and extended side panels. Nos.1462-1503 had 15” sliding sidelight vents. |
||||
|
2123 |
Bulleid BTK (Semi-open Brake Third). Nos.2501-2532, 3943-3962 & 3971-4040 had 15”
sliding sidelight vents. Nos.4301-4383 had 10¼” sliding sidelight vents. Nos.4349-4370 had extended side panels. |
||||
|
2124 |
Bulleid BTK (Semi-open Brake Third) with
coupé compartment. Nos.4209-4228 had 10¼” sliding sidelight vents. |
||||
|
2318 |
Bulleid CK (Seven-compartment Corridor
Composite) Nos.5823-5837 /5848-5923 had 15” sliding
sidelight vents. Nos.5740-5750 /5752-5754 & 5799–5811 had 10¼”
sliding sidelight vents. Nos.5740-5750 had extended side panels. |
||||
|
2507 |
Bulleid RFO (Three-compartment Restaurant
First plus saloon). Nos.7677-7687 with extended side panels. |
||||
|

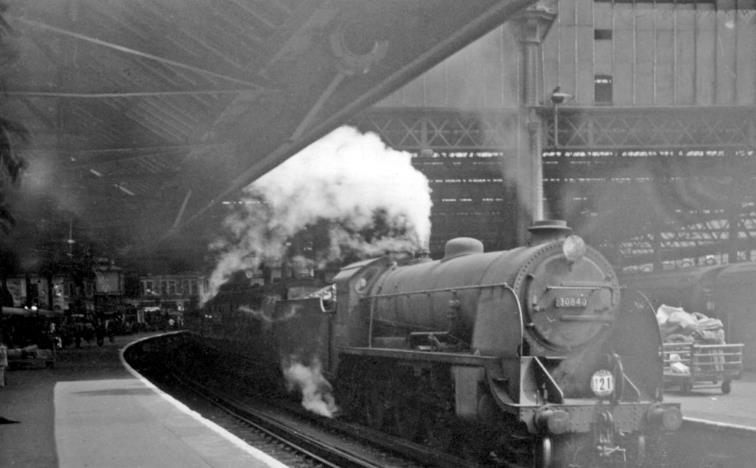

Towards
the barriers along Waterloo’s platform 13 on Wednesday 5th August 1964. In platform
12, set
775 heads the coaches of the 11.54 semi-fast to Basingstoke hauled by S15 no.
30840 (wdn the following month). © Ben Brooksbank
(Geograph/CC-by-SA) |
|
|
|
|
|
|
|
|
Recommended
reading is as follows: |
|||||
|
The Illustrated
History of Southern Coaches |
|||||
|
Bulleid’s SR Steam Carriage Stock |
|||||
|
Southern
Coaches Survey – Pre-grouping and BR MK1 Stock |
|||||
|
Lancing 1956 |
|||||
|
|
|||||
|
Prepared by C. Watts with much
thanks to the late Glen Woods, historical author Mike King (including
permission to use photographs from his collection) and the excellent work
of David Gould. |
|||||
Blood and Custard Blood & Custard
Crimson & Cream Crimson and Cream W-sets W sets North Cornwall West of
England Maunsell
Brake Corridor Composite Second Third Blood and Custard Blood & Custard Crimson &
Cream Crimson and Cream W-sets W sets North Cornwall West of England Maunsell Brake
Corridor Composite Second Third Blood and Custard Blood & Custard Crimson &
Cream Crimson and Cream W-sets W sets North Cornwall West of England Maunsell Brake
Corridor Composite Second Third Blood and Custard Blood & Custard Crimson &
Cream Crimson and Cream W-sets W sets North Cornwall West of England Maunsell Brake
Corridor Composite Second Third Blood and Custard Blood & Custard Crimson &
Cream Crimson and Cream W-sets W sets North Cornwall West of England Maunsell Brake
Corridor Composite Second Third Blood and Custard Blood & Custard Crimson &
Cream Crimson and Cream W-sets W sets North Cornwall West of England Maunsell Brake
Corridor Composite Second Third Blood and Custard Blood & Custard Crimson &
Cream Crimson and Cream W-sets W sets North Cornwall West of England Maunsell Brake
Corridor Composite Second Third Blood and Custard Blood & Custard Crimson &
Cream Crimson and Cream W-sets W sets North Cornwall West of England Maunsell Brake
Corridor Composite Second Third Blood and Custard Blood & Custard Crimson &
Cream Crimson and Cream W-sets W sets North Cornwall West of England Maunsell Brake
Corridor Composite Second Third Blood and Custard Blood & Custard Crimson &
Cream Crimson and Cream W-sets W sets North Cornwall West of England Maunsell Brake
Corridor Composite Second Third Blood and Custard Blood & Custard Crimson &
Cream Crimson and Cream W-sets W sets North Cornwall West of England Maunsell Brake
Corridor Composite Second Third Blood and Custard Blood & Custard Crimson &
Cream Crimson and Cream W-sets W sets North Cornwall West of England Maunsell Brake
Corridor Composite Second Third Blood and Custard Blood & Custard Crimson &
Cream Crimson and Cream W-sets W sets North Cornwall West of England Maunsell Brake
Corridor Composite Second Third Blood and Custard Blood & Custard Crimson &
Cream Crimson and Cream W-sets W sets North Cornwall West of England Maunsell Brake
Corridor Composite Second Third Blood and Custard Blood & Custard Crimson &
Cream Crimson and Cream W-sets W sets North Cornwall West of England Maunsell Brake
Corridor Composite Second Third Blood and Custard Blood & Custard Crimson &
Cream Crimson and Cream W-sets W sets North Cornwall West of England Maunsell Brake Corridor
Composite Second Third Blood and Custard Blood & Custard
Crimson & Cream Crimson and Cream W-sets W sets North Cornwall West of
England Maunsell
Brake Corridor Composite Second Third Blood and Custard Blood & Custard Crimson &
Cream Crimson and Cream W-sets W sets North Cornwall West of England Maunsell Brake
Corridor Composite Second Third Blood and Custard Blood & Custard Crimson &
Cream Crimson and Cream W-sets W sets North Cornwall West of England Maunsell Brake
Corridor Composite Second Third Blood and Custard Blood & Custard Crimson &
Cream Crimson and Cream W-sets W sets North Cornwall West of England Maunsell Brake
Corridor Composite Second Third Blood and Custard Blood & Custard Crimson &
Cream Crimson and Cream W-sets W sets North Cornwall West of England Maunsell Brake
Corridor Composite Second Third Blood and Custard Blood & Custard Crimson &
Cream Crimson and Cream W-sets W sets North Cornwall West of England Maunsell Brake
Corridor Composite Second Third Blood and Custard Blood & Custard Crimson &
Cream Crimson and Cream W-sets W sets North Cornwall West of England Maunsell Brake
Corridor Composite Second Third Blood and Custard Blood & Custard Crimson &
Cream Crimson and Cream W-sets W sets North Cornwall West of England Maunsell Brake
Corridor Composite Second Third Blood and Custard Blood & Custard Crimson &
Cream Crimson and Cream W-sets W sets North Cornwall West of England Maunsell Brake
Corridor Composite Second Third
