British Rail (Southern Railway Design)
4 EPB Units

(Nos.5001 - 5053 & 5101 – 5264)



With type-JB no.73 105 on the Down Main and ‘350’ shunter on the up,
SR-design 4 EPB unit no.5035 enters down platform 3 at Tonbridge.

© BloodandCustard



New 4 EPB units
(
Southern Railway design on reconditioned underframes)

During October 1951 the first of a new type of 4-car suburban unit was completed at Eastleigh. Numbered 5001 it was constructed on reconditioned underframes from Lancing. The building continued until 1957 when two-hundred & thirteen units had been completed, these being numbered 5001 - 5053 & 5101 - 5260. Overall dimensions and internal layout were very similar to contemporary 4 SUB units. However, units were fitted with a self-lapping electro-pneumatic brake in addition to the Westinghouse automatic air brake fitted to all earlier electric multiple units, this led to the unit designation ‘4 EPB’.

Externally the units closely resembled the 4 SUB units still being constructed, except at the unit ends where the cab and brake area were redesigned. In order to reduce draughts, the cab had no external doors, the driver entering via the guard’s brake. Sliding side windows were fitted along with a roller blind route indicator replacing the opal glass and stencil arrangement of earlier units. The route indicator had two main apertures capable of showing a single number each, these were surmounted by a horizontal aperture fitted with a blind capable of showing different lengths of bar or dots as appropriate.

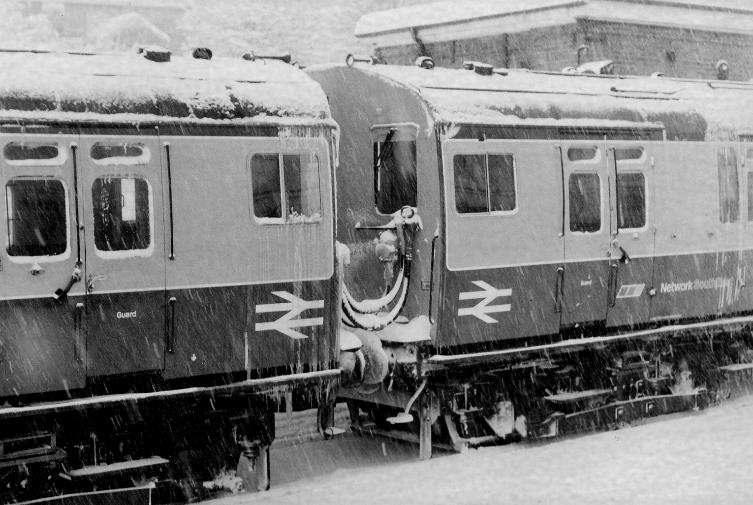

Buckeye automatic couplers were fitted at unit ends, above which was a Pullman type rubbing plate, the side buffers provided being usually in the retracted position out of use. The buckeye could be lowered revealing a central drawhook; this being used with the side buffers for coupling to non-buckeye fitted stock or locomotives, although the units could only run in multiple with buckeye fitted stock. High level air pipes and 27-way control jumpers were provided, so staff did not need to go between units at track level to couple and uncouple them. However, the centre buffer and chain coupling between coaches within the unit were retained.

Each unit was 257' 5" long, identical to the 4 SUB units. Trailers were 62' 0" long and motor coaches 62' 6". Units weighed 136 tons, motor coaches weighing 40 tons and trailers 28. Two EE507 250hp motors were located in the motor bogie which was at unit ends below the guard’s brake, units nos.5001 - 5053 being fitted with ‘Eastern’ type motor bogies (recovered from withdrawn units in the no.1401 - 1534 batch) whilst the remainder had the ‘Central’ type; nos.5001 - 5053 being altered also to this type between 1961 and 1964.

With suburban gear ratio, the units had a balancing speed of 63 mph on level track and the maximum permitted speed was 75 mph. A motor-generator (MG) was fitted to each motor coach which provided current at 70 volts for control and lighting purposes and charged the batteries carried on each motor coach (which provided current for control and emergency lighting for a limited period when the traction current was not available). Each motor coach also carried a Westinghouse DH25 air compressor for the air braking supply.

The internal layout of the units was similar to the main batches of 4 SUB units with two eight-bay saloon motor coaches each seating 82, a 10-compartment trailer seating 120 and a ten-bay saloon trailer seating 102, giving a unit total of 386. Motor coaches had the gangway offset to the opposite side compared with 4 SUB motor coaches, this being a result of different floor-trap layouts, the gangway being offset to the left when looking along the coach from the cab end. The saloon trailer had its gangway offset to the same side as the adjacent motor coach.



4 EPB Order Batches

The 50xx units were ordered in three sub-batches, 5001 - 5015 to order number HO 3638 (this order included the last batch of forty-five 4 SUB units nos.4710 - 4754), 5016 - 5033 and 5034 - 5053 to order number HO 3756, units from no.5016 upwards having different interior fittings with plywood veneer side panels and white plastic ceilings and modified luggage racks with an upwards extension to anchor them to the ceilings; the first fifteen having identical interior fittings to the last built 4 SUB units from no.4735 upwards (i.e. cream coloured ceilings and rexine covered side panelling). The cabside ventilators on unit nos.5016 upwards (above the drivers sliding side window) were also to a modified design.

The compartment trailers of nos.5001 - 5033 were modified vehicles removed from ‘augmented’ 4 SUB units; those in nos.5034 - 5053 were new. The saloon vehicles were new bodies mounted mostly on reconditioned underframes, though a few were new underframes. The first nine units were all completed with their coaches numbered onwards in the 4 SUB series but all were altered prior to the units entering traffic (nos.5001 & 5002 at Selhurst, the others before leaving Eastleigh works).

Further batches of units were ordered as nos.5101 - 5105 (HO 3756), 5106 - 5117, 5118 - 5137, 5138 - 5155 (all to HO 4016), 5156 - 5205 (HO 4099), 5206 - 5215 (HO 4172) & 5216 - 5260 (HO 4173). Interiors of all units were similar to those of no.5016 upwards, but all units from 5101 upwards were fitted from new with ‘Central’ type motor bogies.

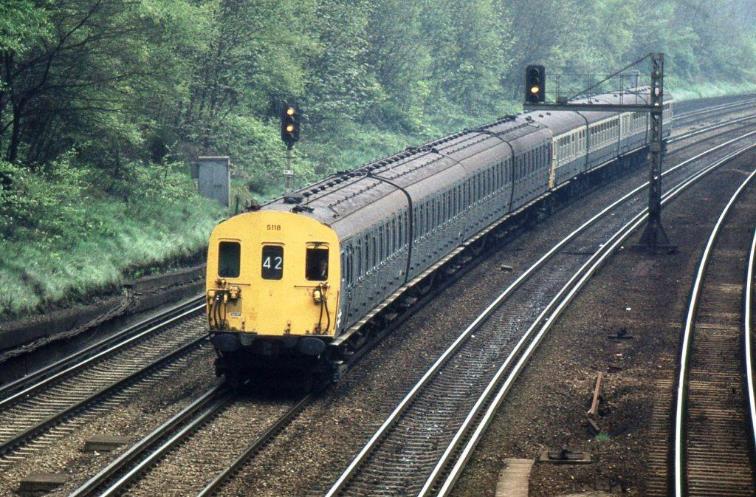

Units from no.5118 upwards had the whistles mounted horizontally (not vertically) and those from no.5138 upwards had cantrail rainstrips and no bodyside MG air intake grille on motor coach bodysides (earlier units later had this panelled over during overhaul) as this was found to allow water to get into the MG causing flashovers.



Summary 4 EPB Batches

1951 programme

HO 3638 dated 16-Jan-50

MBS and TSO vehicles for units 5001 ‑ 5015 (45 coaches)

1952 programme

HO 3756 dated 2-Feb-51

HO 3757 dated 2-Feb-51

MBS and TSO vehicles for units 5016 ‑ 5033

All vehicles for units 5034 ‑ 5053 &         5101 ‑ 5105 (154 coaches).

1953 programme

HO 4016 dated 14-Jul-53

HO 4099 dated 30-Mar-54

HO 4172 dated 11-Feb-55

HO 4173 dated 11-Feb-55

All vehicles for units 5106 ‑ 5155 (200 coaches).

All vehicles for units 5156 ‑ 5205 (200 coaches).

All vehicles for units 5206 ‑ 5215 (40 coaches).

MBS and TSO vehicles for units 5216 ‑ 5260 (135 coaches).





Total coaches ordered 769.



Units from number 5186 upwards did not have a duplicate jumper set on the cab end and units 5216 upwards again included a compartment trailer modified on removal from withdrawn ‘augmented’ 4 SUB units. Unit numbers 5001 - 5050 and 5101 - 5104 were new with SR style seating upholstery; nos.5051 - 5053 and no.5105 upwards having a BR pattern, though many different varieties of seat coverings appeared later during overhauls.

With the exception of the ‘augmentation trailers’ converted from 4 SUB to 4 EPB operation, all the vehicles of these units utilised reconditioned underframes which had originally run under wooden bodied coaches in the 3-car suburban fleet; these latterly having been themselves augmented to 4 SUB by the insertion of an all-steel trailer. Many of these frames were originally newly built at Lancing. However, the batch which had been constructed at Ashford were also utilised, with some small dimensional differences between these and the Lancing product being eliminated during their reconditioning at Lancing prior to the 4 EPB bodies being constructed upon them.

Disposal of the wooden bodied vehicles took place mostly at Newhaven though some earlier ones were broken-up at either Horley or Lancing works; their underframes were taken to Lancing, partly dismantled, overhauled and rebuilt with additional strengthening. Underframes were then moved to Eastleigh where the new 4 EPB bodies were built onto them. A few of the underframes came from 2 NOL units; in a few instances former motor coach frames were used under trailer coaches, although the reverse did not happen.

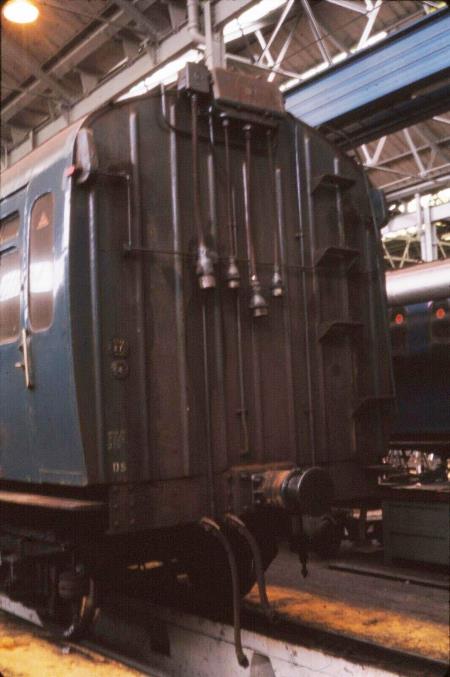

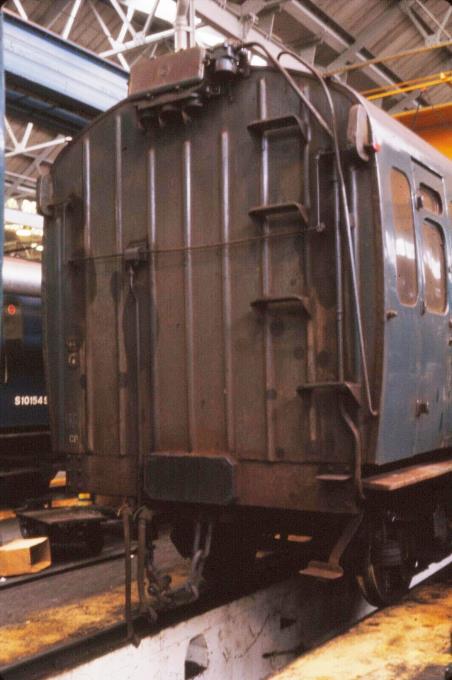

4 EPB Inner-ends
Behind is S10154S of SWD 4 SUB unit no.4287

Trailer Second Open
(Code DS)

Motor Brake Second Open
(Code CP)

© BloodandCustard



Into Service

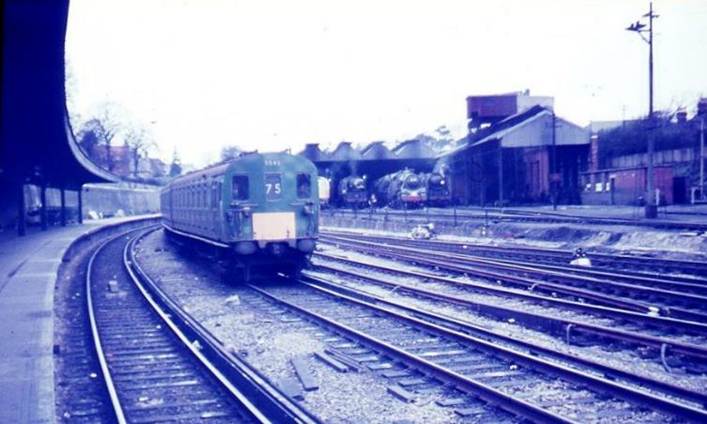

Unit number 5001 was released from Eastleigh Works on 19th November 1951 (to undertake testing) and entered service in February 1952 with units gradually took over the Waterloo - Guildford (via Cobham) service; all of the first fifteen being in service by October 1952. Unit nos.5002 & 5005 entered traffic from 28th April 1952, unit nos.5003 & 5004 from 5th May 1952, nos.5006 & 5007 from 6th May 1952 and nos.5008 & 5009 from c.26th May 1952. Unit nos.5001 /5002 /5006 /5007 were delivered in a lighter yellowish green livery, all others being in SR green. Unit no.5016 upwards started to be delivered from April 1953, the pause in construction being due to a steel shortage; units were then delivered steadily until the last (no. 5260) arrived in March 1957.

About fifty-five units were required on the SWD, initially unit nos.5001 - 5053 & 5101 - 5104 but subsequent deliveries displaced the ‘Eastern’ bogie fitted nos.5001 - 5053 batch to the SED from the highest numbered downwards until the SWD had unit nos.5101 - 5155. 4 EPB units took over the Hounslow Loop service for a while to release 4 SUB units to cover for 2 NOL units being modified at this time with the fitting of compressor governors.

The influx of 4 EPB units onto the SED enabled a start to be made with the ‘10-car scheme’. This scheme also required the delivery of the BR pattern 2 EPB units to run in conjunction with the SR type 4 EPBs and was introduced in stages as engineering works were completed on the routes concerned. The first phase was ready in June 1954 when the Charing Cross to Dartford via Bexleyheath, and Orpington & Bromley North routes were turned over to 10-car trains in the peak hours. This was followed in June 1955 by the Sidcup route to Dartford and operation on some Caterham & Tattenham Corner services.

The next stage was inaugurated from the 11th June 1956 involving the Woolwich and Greenwich lines to Dartford and the lines onwards to Gillingham, the final stage was ready in April 1957, this clearing the lines into Cannon Street and the Mid-Kent and Sevenoaks lines. On completion of the 10-car scheme, 132 units were required on the SED and 10-car trains were all diagrammed to be formed of two 4 EPB and one 2 EPB unit, though trains with one 4 EPB and three 2 EPB units were not uncommon.

Ten new units delivered early in 1956 had gone to the Central Division for the Caterham & Tattenham Corner lines where 10-car trains were operated between London Bridge & Purley where they split into two portions. The allocation on the SWD had also risen to about 75 by the time all the units were in service.

Electrical codes, first used on new Kent Coast stock were allocated to all EPB vehicles from about 1963.

Re-diagramming of units to simplify the stock workings took place, and by the Summer 1960 timetable only four 4 EPB units (nos.5120, 5167, 5193 and 5253) were working on the SWD (alongside 2 EPB unit nos.5651 – 5684), all others being concentrated on CD and SED workings, there were still some ‘augmented’ 4 SUB units running at this stage, soon to be replaced by the final deliveries of BR type 4 EPB unit nos.5345 – 5370. The allocation on the SWD rose again to about 33 units by 1972.



London Bridge to Crawley train at Redhill with 4 EPB no.5025 on 3-May-79
© John Atkinson



Liveries

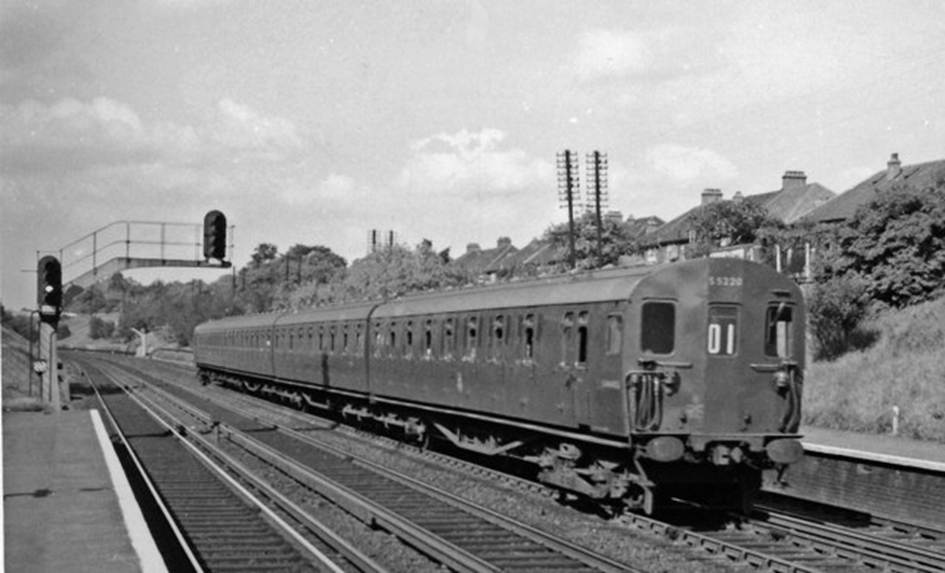

All units were delivered with the unit number preceded by an ‘S’ and a larger gap the usual before the first ‘5’ digit of the unit number, these were removed at first repaint and the 4-digit unit number centralised on the cab front. Unit nos.5001 /5002 /5006 /5007 were delivered in a lighter yellowish green livery, all others being in SR green.

Unit no.5048 was subject to trials with yellow warning panels and full width panel below cab windows applied c. January 1962.

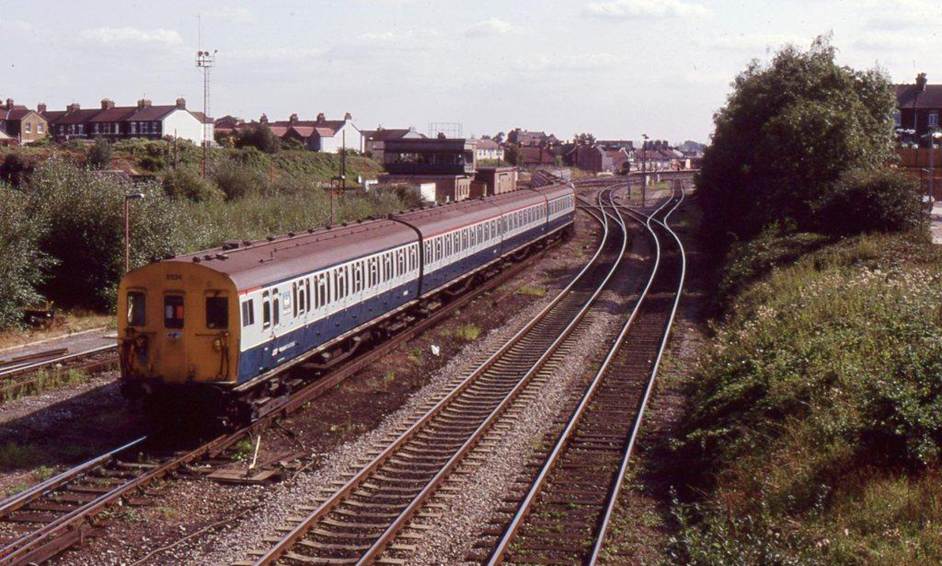

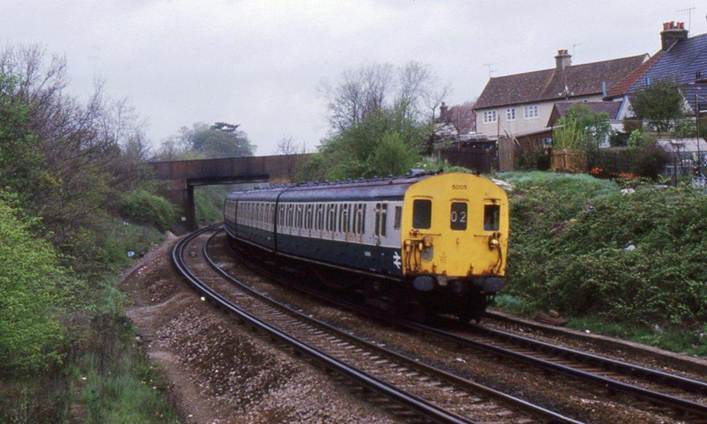

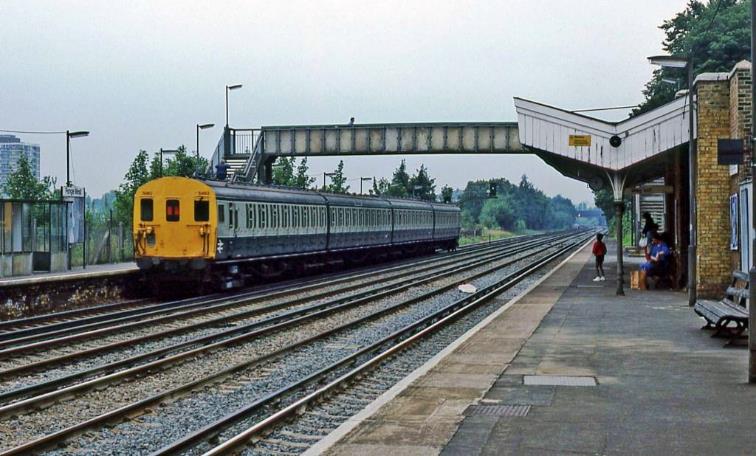

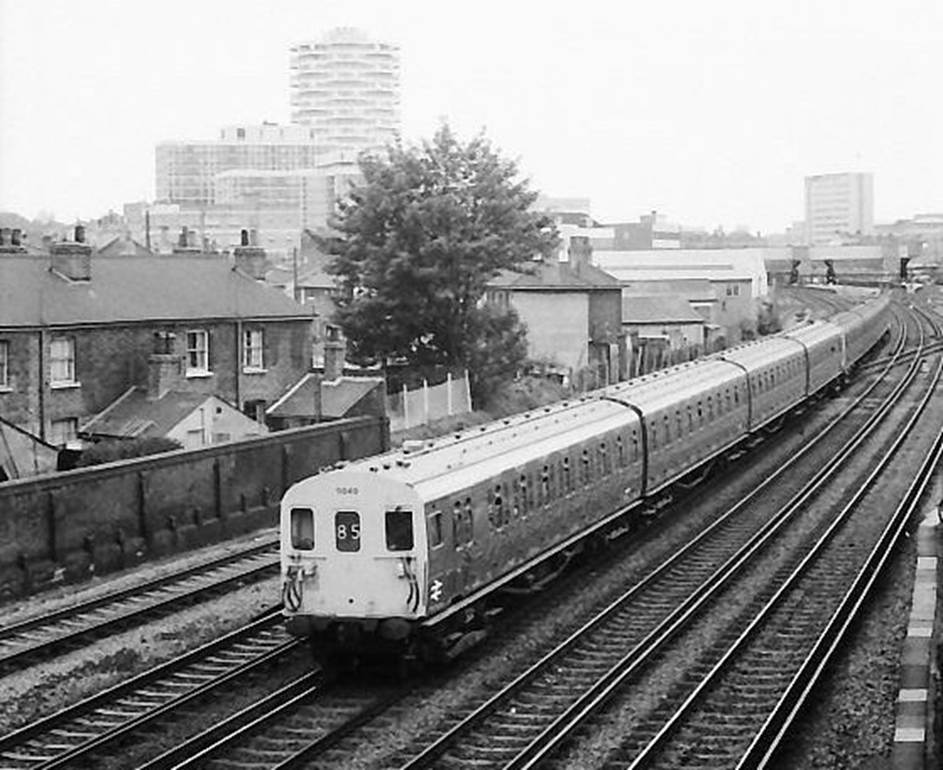

Units painted in the intermediate livery of blue with blue ends in 1966 were as follows (all eventually gained all blue with full yellow ends, and later all were painted blue /grey):

5177

5205

5212

5215

5219

5241

5243

5246

5253

5258

5260







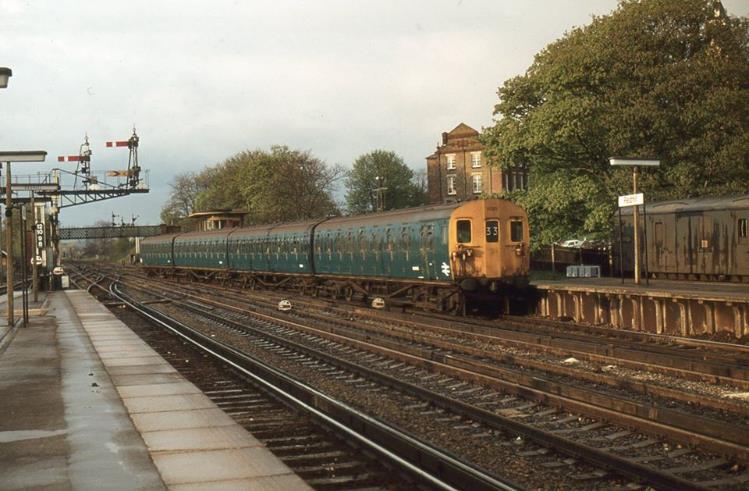

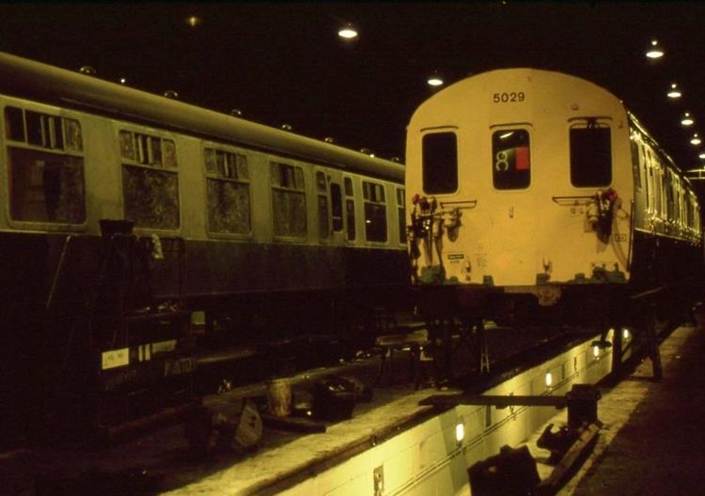

A large number of units had full yellow ends applied whilst still in green, these being:

5002

5003

5004

5006

5007

5008

5009

5010

5011

5012

5015

5017

5018

5019

5020

5024

5027

5028

5030

5031

5032

5033

5036

5038

5039

5043

5046

5047

5053

5101

5102

5103

5105

5106

5112

5113

5114

5115

5117

5120

5121

5124

5125

5126

5128

5129

5132

5136

5138

5142

5143

5144

5147

5152

5153

5154

5156

5157

5159

5160

5161

5162

5164

5167

5170

5175

5176

5181

5182

5183

5185

5186

5190

5192

5193

5195

5196

5198

5199

5200

5201

5203

5208

5211

5213

5216

5217

5218

5220

5221

5222

5223

5224

5229

5230

5231

5233

5234

5235

5236

5237

5238

5239

5240

5242

5244

5245

5247

5249

5251

5254

5262



Unit no.5218 was the last SR unit to run in normal service in green livery and was repainted blue in January 1972.

Unit no.5223 was the last 4 EPB to run in plain blue livery in February 1984.

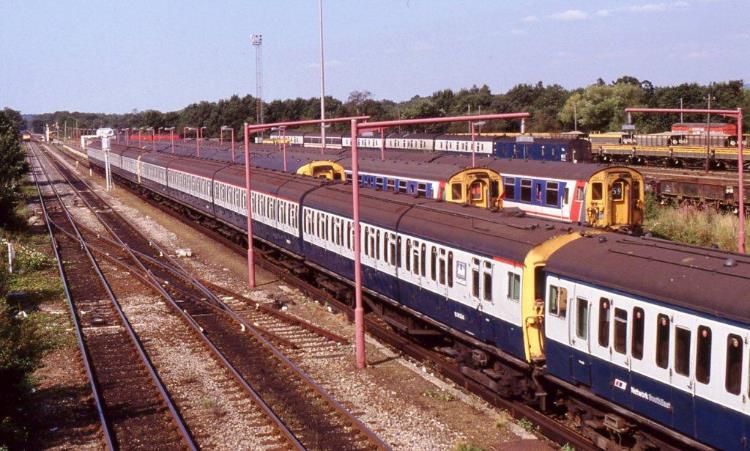

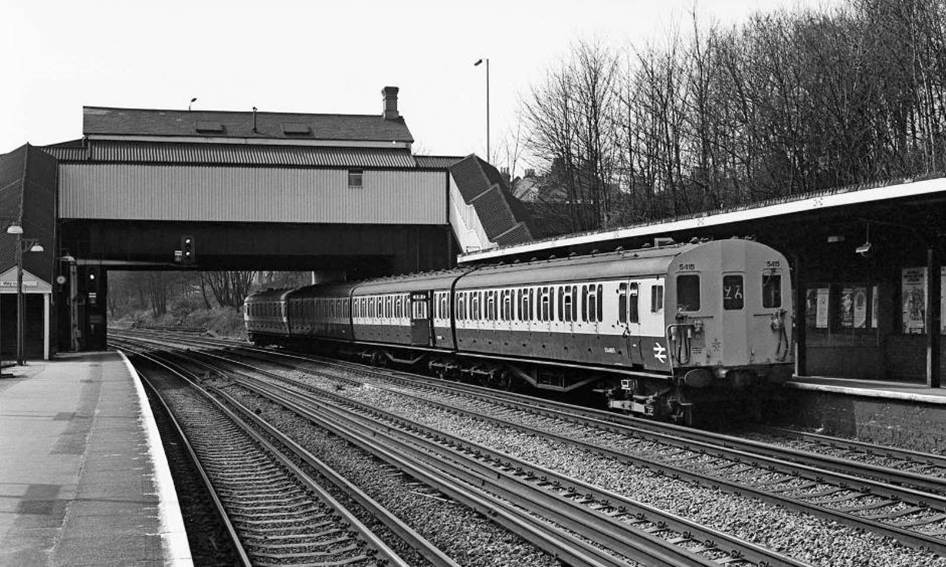

Of the facelifted units numbered nos.5401 to 5497 the Network SouthEast livery was the later version (darker blue with curved upsweeps).



Nos.5001 – 5260
