British Rail Southern Region design
2H, 3H & 3T

(Nos.1101-1133)

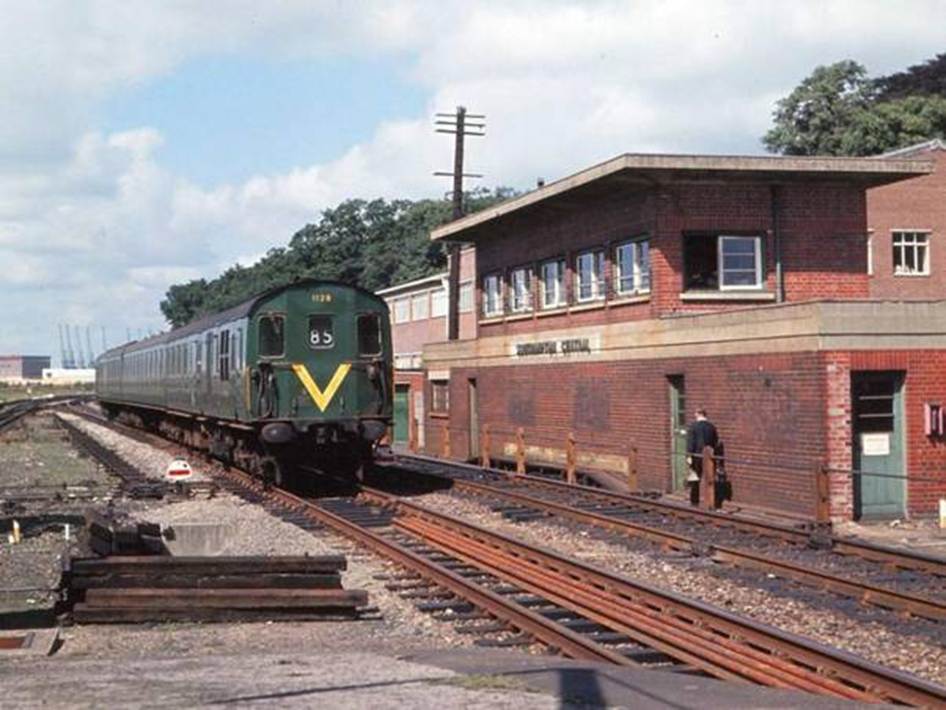

3H 1128 passes Southampton Central signal box 7 August 1965 Copyright BloodandCustard web.jpg

7th August 1965 3H ‘Berkshire’ unit no. 1128
passes Southampton Central signal box

© BloodandCustard



‘Hampshire’, ‘Hastings’ & ‘Berkshire’
Diesel-Electric Multiple-Units





Contents



1957 2H ‘Hampshire’ units 1101-1118

1958 2H ‘Hastings’ units 1119-1122

1959 3H ‘Hampshire’ units 1123-1126

1962 3H ‘Berkshire’ units 1127-1133

1979 3T units 1401-1404

1979 3H(M) unit 1111

Operations

Oxted Tunnel & Window Bars

Renumbering & Reformations

Liveries

Privatisation

Models





1957-built 2H ‘Hampshire’ units

Nos.1101-1118

During 1957 a batch of eighteen two-car diesel-electric multiple units (DEMU) were constructed at Eastleigh on frames from Ashford for the dieselisation of various services in Hampshire. Numbered 1101 – 1118 they were classified as 2H units and were basically a diesel version of a 2 HAP electric unit which were being built concurrently. Each diesel unit consisted of a motor brake second and a driving trailer composite.

Lot numbers allocated to these vehicles were MBS 30332 and DTC 30333; these having been ordered on 16th November 1955.

Overall 2-car unit length was 133' 3½" and they weighed 88 tons, seating 13 first and 114 second class passengers. The units were mounted on BR Mark 2A bogies and were finished in all over green livery, all entering service between August and October 1957. The two coaches were coupled by buckeye couplers with rubbing plates; not the central buffer and three link chain arrangement used to restrict the overall length of the 2 HAP /EPB units. The external appearance closely resembled the BR ‘1951 type’ 2 HAP and 2 EPB units with external lighting trunking along the coach roofs. This batch were not fitted with a wiper on the secondman’s observation light.

In order to service these new diesel units a new diesel depot and engine repair shop were established at Eastleigh (on a site adjacent to the main works) with the engine repair shop taking on all heavy repairs to the 4SRKT engines (including those units allocated to St Leonards).

The engines being moved between the depots on four special wagons built for the purpose. Protected by a special cover each wagon could carry a complete engine and generator set (one of these wagons is now preserved by Hastings Diesels Ltd at St Leonards). These wagons were colloquially known as “sewing machines” due to the shape of the cover looking similar to that which fitted the older Singer sewing machines.

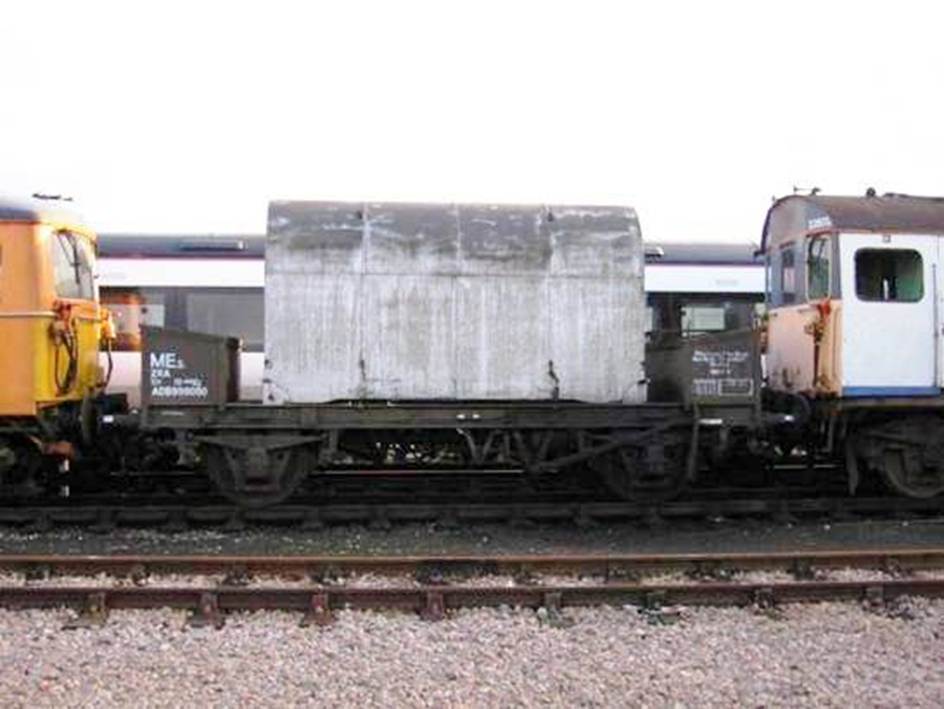

Preserved “sewing machine” wagon at St Leonards

© BloodandCustard



Motor Brake Seconds

The motor brake seconds (MBS) consisted of a full width drivers' cab entered via the engine room and fitted with an offside emergency exit door (as in the 6-car ‘Hastings’ units). Situated in the engine room was the English Electric 4SRKT engine and generators, these being identical to those fitted into the 6S & 6L ‘Hastings’ units completed earlier in 1957 at Eastleigh.

This engine powered a motor bogie located at the inner end of the coach (to assist weight distribution) which was fitted with two EE507 motors driving through a suburban gear ratio.

Behind the engine and radiator compartments was the guards' brake, this being 8' 2½" wide and being provided with access via a side passageway through the engine room to the drivers' cab (as in the 6-car ‘Hastings’ units. However, no access was provided into the adjacent passenger saloon.

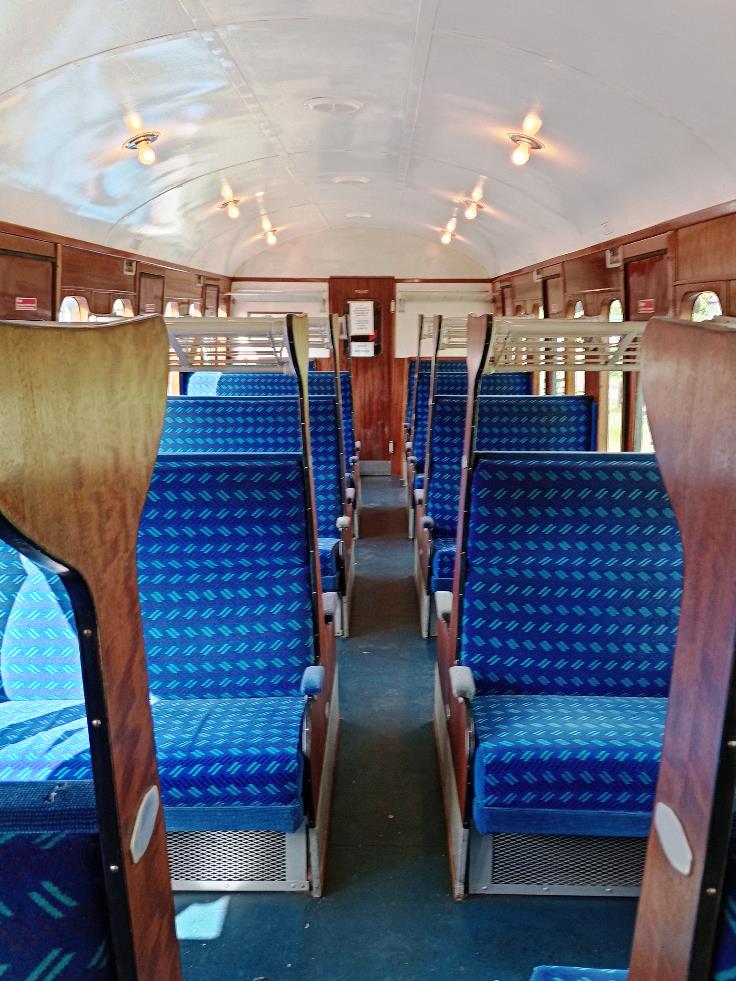

The passenger saloon had seating five bays with 3 & 2 person seating either side of the gangway; the ends of the saloon having full width 6-person benches, with side doors to each seating bay the motor brake seconds provided seating for 52 persons; three‑aside seating units being on the offside when the driver’s cab was leading.

When introduced none of the seating bays in the motor coaches were designated non-smoking.

Built to Diagram No. 652 the motor coaches were 64' 0" long and weighed 56 tons (split about 32 tons on the leading bogie and 24 tons on the motor bogie). They were similarly equipped to the 6-car ‘Hastings’ motor coaches with battery boxes, fuel tanks, compressor and switchgear cabinets mounted below the underframe between the bogies.

Driving Trailer Composites

The driving trailer composites (DTC) were similar in layout to those used in the 2 HAP electric units (also being built at this time) but instead of having three first-class compartments, the outermost compartment behind the driving cab entrance vestibule was fitted out as a twelve seat second class compartment with no through access to the adjacent first class side corridor. The two remaining compartments were first class, one seating seven and the innermost six persons. Both these compartments had access via the short side (driver’s side) corridor to a lavatory.

The remainder of this coach was to the same layout as the 2 HAP DTC coaches with a five-bay saloon seating 50 and lavatory access via a very short central corridor into the toilet compartment. There was no through access between first and second class. The three‑aside seating units were on the nearside when the cab was leading.

When introduced the second-class seating was designated non-smoking as was the first-class compartment immediately adjacent to the lavatory.

Built to Diagram No. 679 this 64' 0" long coach weighed 32 tons and seated 13 first and 62 second class passengers.

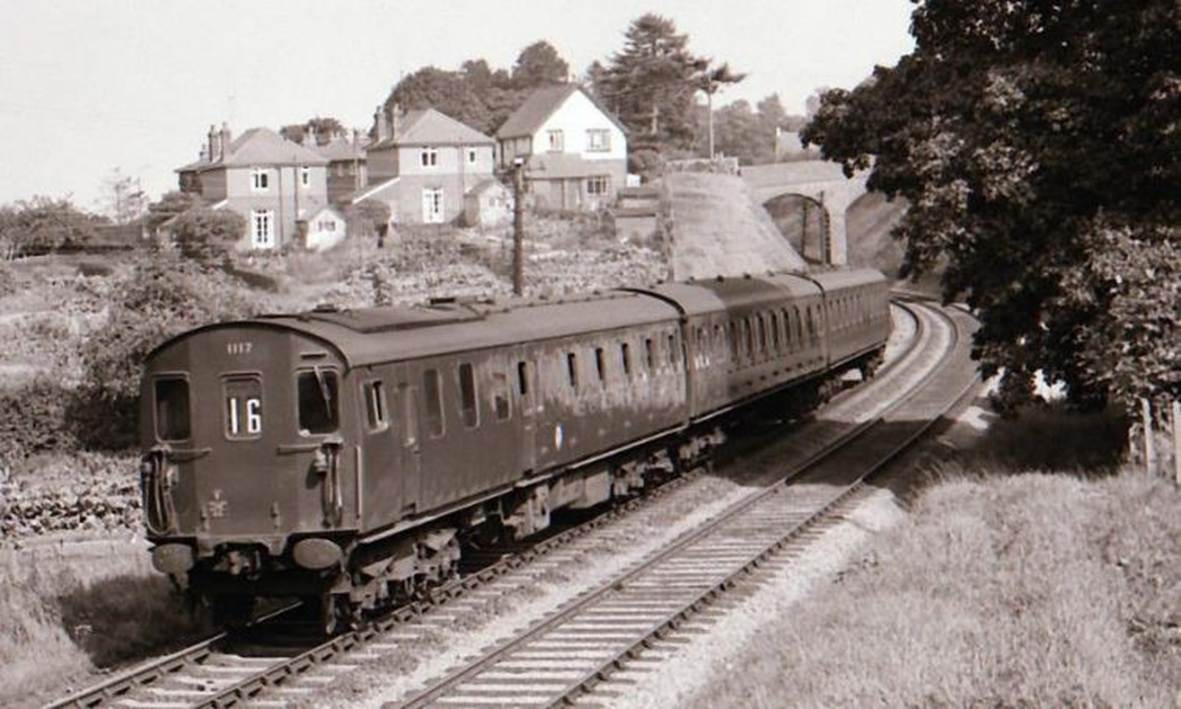

3H 1117 on the 13.45 Alton to Southampton Terminus service Sep 1960 copyright BloodandCustard.jpg

Having passed under Mount Pleasant Road 3H ‘Hampshire’ unit no. 1117 on the 13.45 Alton to Southampton Terminus service in Sep 1960

© BloodandCustard





Introduction into Service

An almost-complete unit number 1101 was exhibited at the Eastleigh works open day on 7th August 1957. It commenced its first test running on 12th August 1957 with four trips from Eastleigh to Fareham and back; the following day running two trips to Basingstoke. Unit number 1102 began its testing on 16th August with a similar programme (which all subsequent units followed as released from the works).

Early crew training runs took place from Eastleigh onto the Andover Jct. line (6S ‘Hastings’ unit no.1005 had been used similarly earlier in May 1957). Nine 2H units had been delivered and commissioned by mid-September 1957 when passenger services were planned to commence.

The first 2H units took over the Portsmouth/Southampton to Salisbury service from 16th September 1957, though on the first day unit no.1103 was slightly damaged in a collision with a Western Region 6-set at Eastleigh; the following day unit no.1110 being put into traffic as a replacement. All eighteen were in service from 4th November 1957 covering the Portsmouth /Southampton to Alton and Andover services.

The first phase of the scheme saw an hourly semi‑fast service from Portsmouth Harbour to Salisbury calling at Portsmouth & Southsea, Fratton, Cosham, Fareham, Netley, Woolston, St Denys, Southampton Central, Romsey, Dunbridge, Dean & Salisbury in a scheduled time of 84 minutes; this comparing with steam timings of about 105 minutes. This service was supplemented by an hourly Portsmouth Harbour to Southampton Central service calling at all stations; this taking 55 minutes reduced from the 70 minutes for steam traction. In general, the basis of operation was a twenty to twenty-five percent acceleration in timings with more frequent trains at regular intervals.

The second phase from 4th November 1957 saw further services introduced (all at hourly frequencies) as follows:

Portsmouth Harbour - Eastleigh - Andover Junction

(96 minutes reduced from 130)

Southampton Terminus - Winchester - Alton

(55 minutes reduced from 77)

Southampton Terminus - Winchester City

(24 minutes reduced from 35)

These combined services gave a ½ hourly frequency between Southampton and Winchester.



Once the 2H units had settled down and despite intensive diagramming, occasionally units were spared for Special Traffic workings; one of the first being unit number 1102 used for a special from Cranleigh to Swindon on 5th October 1958. Of the eighteen units, seventeen could be in use at any given time. However, as mileages of 70,000 to 75,000 were attained it was necessary to reduce this number to sixteen as tyre-turning became necessary.

The Sunday service on the Fawley branch was operated by 2H units from October 1958, these then being officially diagrammed on this day from 16th November 1958.

Fuel consumption of these units averaged around 0.4 gallons per train-mile.

In general, the units were based at Eastleigh but a few sets were berthed overnight at Salisbury and Fratton. The new maintenance depot comprised 160ft long building with each track able to take a two-car unit under cover for normal servicing and light maintenance duties; there were also carriage sidings and cleaning stages. At Fratton the units used the existing carriage washer.

It is believed that the first Hampshire unit to work from Waterloo was 3H unit number 1116 on the 10:54hrs Waterloo to Salisbury service; the motor coach (sporting an orange Vee) being country end. (Did this run solo?)

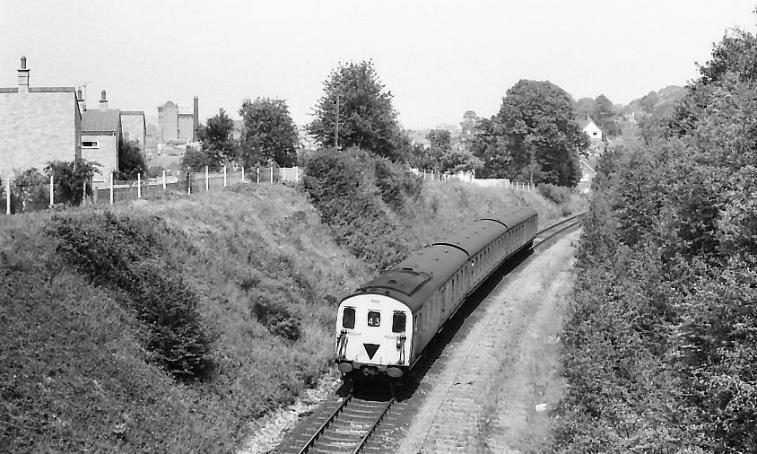

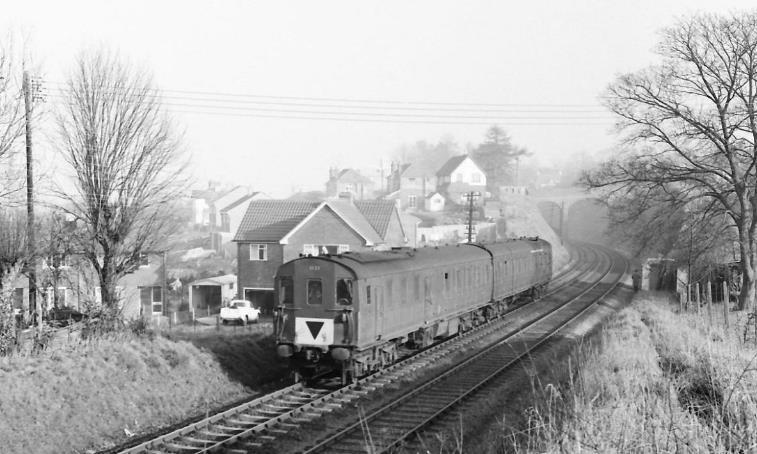

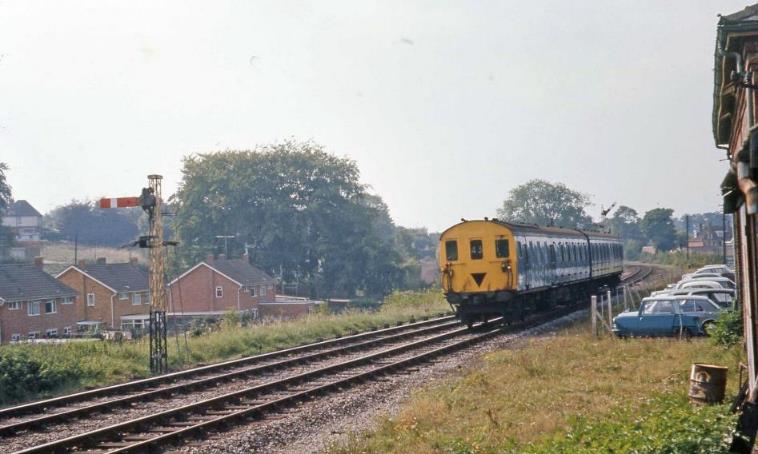

3H 1133 Alton on 15.02 to Southampton 22 July 1972 Copyright BloodandCustard web.jpg

3H ‘Berkshire’ unit no. 1133 about to pass under Borovere lane
(Alton) on the 15.02 service to Southampton (22nd July 1972).

The inverted black triangle provided an early indication to station and
postal staff that there was
no brake van at the other end of the unit.

© BloodandCustard



Initial Modifications

Such was the success of these more-frequent diesel services that overcrowding soon became a problem and the units were taken off the Andover line to augment trains between Southampton and Portsmouth. Consideration was then given to making up all units to three cars by inserting a new trailer second and in readiness for this unit number 1114 had its engine (with its 10” by 12” cylinders) uprated from 500bhp to 600bhp by exchanging the Napier MS100 turbocharger for an MS200 type as well as slight modifications to the fuel delivery system. The modified unit ran tests during week /ending 22nd February 1958 coupled to new 6-car ‘Hastings’ unit 1016.

This proved to be successful so to enable all 2H units to be modified as quickly as possible, the 500bhp engines fitted into the motor coaches of yet to be delivered 6-car ‘Hastings’ units numbers 1018 /1019 & 1031‑1037 were converted, uprated and tested in these coaches prior to being exchanged with an unmodified engine from a 2H unit.

Problems with the bogies (similar to those experienced with the 6-car ‘Hastings’ sets and BR type 2 EPB & 2 HAP units) led to the uprating of the bogies with reinforcement, new side-spring hanger brackets and additional VTR vibro-dampers to Mark 4 standards. This was undertaken at Eastleigh works during 1958 with later built units having these fitted from new. The first units completed were numbers 1103 & 1107.

Following complaints of noise, all the units were fitted with a Burgess ‘straight-through’ silencer from late in 1957; unit number 1113 being the last to be done. In order to reduce internal pressure in the crankcase the crankcase breather pipes were carried to a position just under the radiator fan. The bi-metal thermostats were proving inadequate so were replaced by wax-type thermostats.

These modification programmes reduced unit availability and alternate Andover line trains were terminated at Eastleigh with steam working beyond.



Red Blinds and Whistles

The original headcode blinds did not include red blanks and units carried a tail-lamp. In 1958 trials commenced on some 6-car Hastings sets using red blanks instead of a tail lamp. Once these were accepted from May 1960 the roller blinds on the demus were slowly changed; this included the use of a different (visually more-squat) font. At least one 2H retained the early style headcode blinds into 1962.

Her Majesty’s Railway Inspectorate required the red blanks /tail-lamps to be illuminated for at least 30 minutes after any traction failure and some units such as the 4 SUB units (which were never equipped with a battery backup) ended their working lives still using oil-lit tail-lamps.

Today the preserved Hasting unit no.1001 carries a tail-lamp when away from the ‘Southern’ as there have been instances of staff not understanding the red blinds and reporting the train as passing ‘without tail-lamp’.

Around 1963 the whistles started being replaced with two-tone air horns; some retaining their whistles into 1966. Often their fitment was accompanied yellow warning panels and 1st class UIC yellow banding.

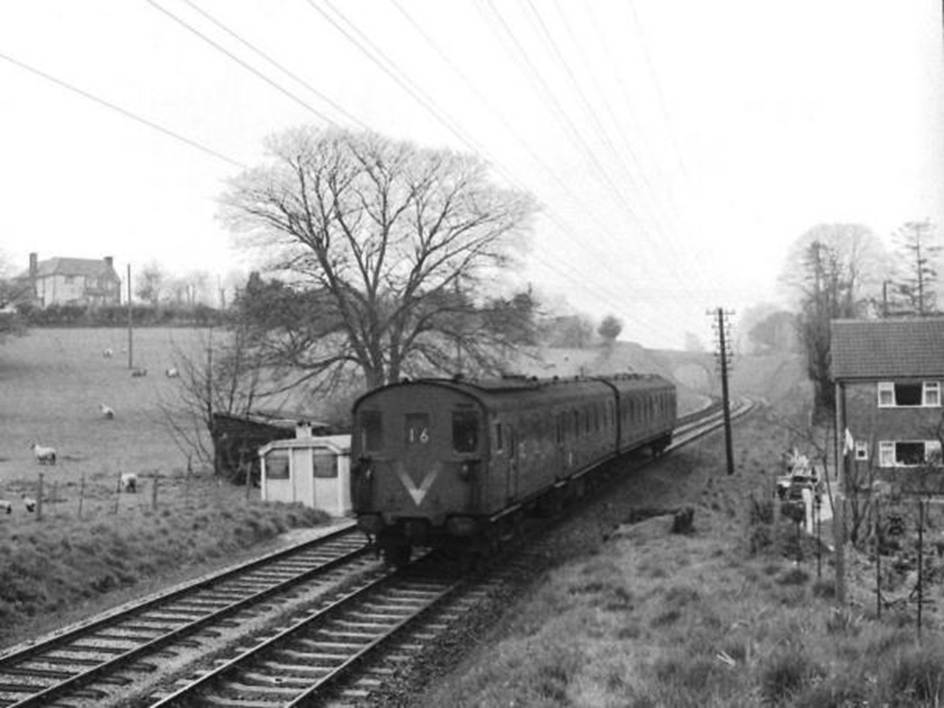

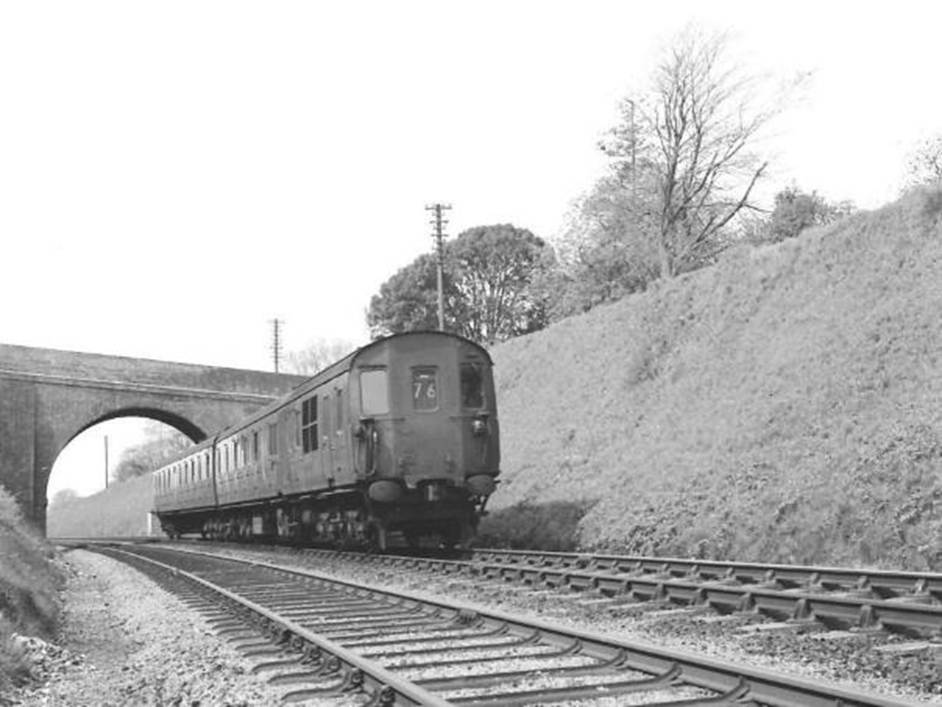

2H 1102 climbing from Alton 25th April 1964 copyright BloodandCustard web.jpg

3H ‘Hampshire’ unit no. 1102 climbing from Alton on the 25th April 1964
(at this time its motor coach was equipped with an orange-Vee)

© BloodandCustard



Strengthening to 3-Cars

Further strengthening of the Hampshire fleet took place from August 1959 when the first of the trailer second (TS) coaches were completed at Eastleigh (again using underframes from Ashford). Each coach was 63' 6" long and weighed 30 tons; none had roof conduits. The Lot number for these coaches was 30542 (this also included the centre trailers of units 1123 ‑ 1126), this order being placed on 13th October 1958, and these vehicles were to Diagram No. 672.

These coaches consisted of two saloons of five bays each and seated 104 second-class passengers. These coaches were marshalled with the three‑aside seating on the opposite side to those in the MBS & DTC vehicles. This meant the five non-smoking seating bays were adjacent to the driving trailer coaches; that is when the seating was 3 (left) plus 2 (right hand side) as viewed looking down the gangway from the end of the coach.

Overall unit weight was now 118 tons; they were now 199' 6" long and seated 13 first and 218 second class passengers. Units nos.1101 ‑ 1118 were then reclassified as 3H but no renumbering took place. The trailer seconds were not inserted into units in numerical order, but were built with “out of sequence numbers” so that their numbers did run in sequence when all units were correctly augmented.

Trailer number 60650 (the first built) was renumbered as 60664 before entering service on 12th August 1959 in unit number 1115 and spent a short while in unit number 1105 before going back into its ‘correct’ unit number 1115. The actual 60650 came later in the batch.



Release dates for Trailer Seconds from Eastleigh Works

TS

Unit

Released from Eastleigh
week ending

Diagram

HOO no.

Lot no.

60650

1101

3-Oct-59

BR672

4514

30542

60651

1102

22-Aug-59

BR672

4514

30542

60652

1103

26-Sep-59

BR672

4514

30542

60653

1104

26-Sep-59

BR672

4514

30542

60654

1105

3-Oct-59

BR672

4514

30542

60655

1106

3-Oct-59

BR672

4514

30542

60656

1107

26-Sep-59

BR672

4514

30542

60657

1108

3-Oct-59

BR672

4514

30542

60658

1109

3-Oct-59

BR672

4514

30542

60659

1110

17-Oct-59

BR672

4514

30542

60660

1111

12-Oct-59

BR672

4514

30542

60661

1112

17-Oct-59

BR672

4514

30542

60662

1113

17-Oct-59

BR672

4514

30542

60663

1114

24-Oct-59

BR672

4514

30542

60664

1115

8-Aug-59

BR672

4514

30542

60665

1116

17-Oct-59

BR672

4514

30542

60666

1117

24-Oct-59

BR672

4514

30542

60667

1118

29-Aug-59

BR672

4514

30542

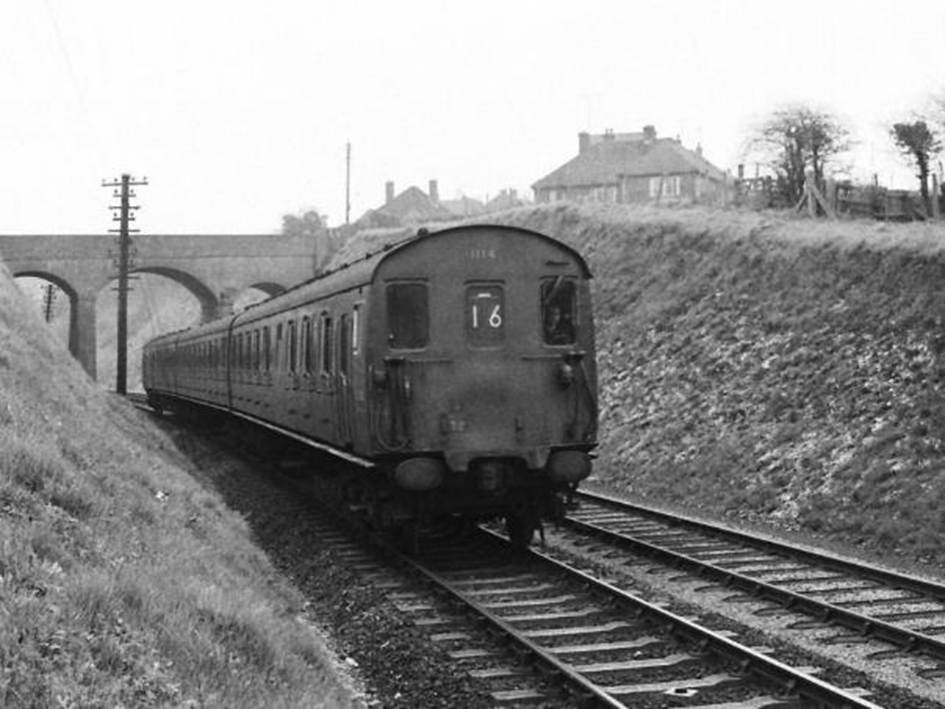

3H 1114 Climbing from Alton 25 April 1964 copyright BloodandCustard web.jpg

3H ‘Hampshire’ unit no.1114 climbing from Alton on the 25th April 1964
Mount Pleasant Road (bridge) is in the background

© BloodandCustard



Changes of Gear Ratios

During 1959 and prior to the augmentation to 3-cars, the motor-bogies of unit numbers 1101 ‑ 1118 were removed for use in new 4 EPB units in the 5301 ‑ 5356 batch then being built. These motor-bogies were replaced with new equipped with express gear ratios.

However, the combination of three coaches and the express gear ratios did not prove successful on the steeply graded Winchester to Alton line, particularly with train heating in operation and autumn leaf fall causing wheelslip problems. Accordingly, from 13th November 1959 five units (nos.1105 /1107 /1111 /1112 /1114) were hastily reduced to 2H again and restricted to this route whilst trials took place with refitting suburban gear ratio.

This was partly successful and initially eight units were reconverted to suburban gear ratio and those reduced to 2H made back up to 3H again. All units were modified back to suburban ratios by February 1961.



Further Modifications

During 1963-1964 the odd second-class compartment in the driving trailer of the earlier units was stripped of seating to become a luggage compartment, reducing the seating in this coach by twelve to 13 first and 50 second (unit capacity 13 first and 206 second) though St Leonards based no.1119 missed out on this modification. However, there was no amendment to the Diagram No. which remained 679.

Some of those allocated to Eastleigh depot also had AWS equipment fitted during this overhaul, these units having the second type ‘Baldwin’ equipment fitted, unit numbers 1101 /1102 /1103 /1104 /1105 /1110 /1111 /1112 also 1121 /1122 were done although it is not certain if 1106 /1107 /1108 /1109 /1113 were fitted at this time. However, but these units were later moved to St Leonards where the equipment was not needed.

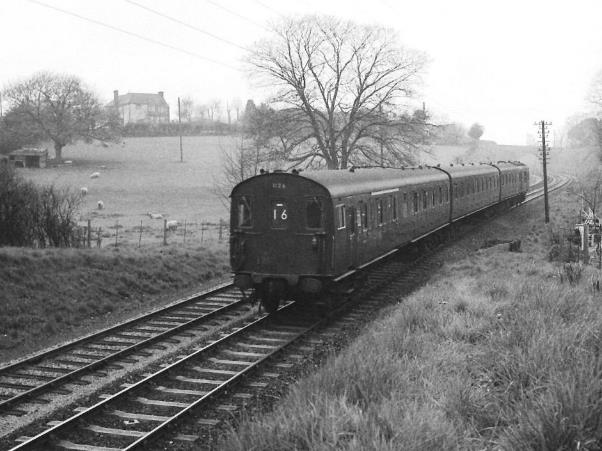

3H 1106 & 1129 to Southampton Terminus from Alton May 1964 copyright BloodandCustard web.jpg

3H ‘Hampshire’ unit no.1106 leading 3H ‘Berkshire’ unit no.1129 approaching
Borovere Lane (Alton) en-route to Southampton Terminus in May 1964

© BloodandCustard



Summer 1960-1961 Winchester Chesil

The termination of the summer Saturday services at Winchester City was causing operating difficulties. Although Winchester Chesil had closed on 7th March 1960 it was reopened for the next two summers from 18th June 1960 to 10th September 1960 and 17th June 1961 to 9th September 1961 to enable the diversion of seven demu services a day from Southampton Terminus.



Winter 1960 Reduction to Two-cars

Despite the return to suburban gear ratios units still had some difficulties between Winchester and Alton so from the Winter 1960 timetable this route was again diagrammed to be worked by 2H units; the centre trailers being removed at random from two units at any one time for this service.

Where information on reduction to two-car is known for 1960-on it is included in the individual unit histories.

Back to Top



2H 1122 from Southampton Central nearing Alton on August 1965 copyright BloodanandCustard web.jpg

2H ‘Hastings’ unit no.1122 passing under Borovere Lane (Alton)
on a service from Southampton Central in August 1965

© BloodandCustard



1958-built 2H ‘Hastings’ Units
Nos.1119 - 1122

During 1958 four more 2H units were built for use based at St Leonards depot on the Ashford ‑ Hastings, Appledore ‑ New Romney and Crowhurst ‑ Bexhill West lines although loco-hauled services on these lines didn’t cease until 1961.

These units were ordered as Lots MBS 30398 and DTC 30399; the MBS order being placed on 13th December 1956, though the DTCs were ordered earlier on 16th May 1956 with all being delivered from June 1958. However, the planned introduction of these units (from 7th June 1958) had to be postponed as only one unit had been delivered by this date. These units lacked the external lighting trunking along the coach roofs but retained the external water filler pipes on the driving trailers. However, no.1121 gained external lighting trunking when its identity was exchanged with no.1108 in May 1974. Of this batch only no.1119 was not fitted with a wiper on the secondman’s observation light.

As introduced, none of the seating bays in the motor coaches were designated non-smoking; in the driving trailer the second-class seating was designated non-smoking as was the first-class compartment immediately adjacent to the lavatory.

Initially these 2H units were referred to as ‘Hastings’ units. However, this term fell into disuse as they moved back into Hampshire and they too were simply referred to as ‘Hampshire’ units.



2H 1122 from Southampton Central nearing Alton 20 September 1964 copyright BloodandCustard web.jpg

2H ‘Hastings’ unit no.1122 nearing Alton from Southampton Central in September 1965

© BloodandCustard





Release dates for Units from Eastleigh Works

Type

No.

Unit

Released from Eastleigh week ending

Diagram

HOO no.

Lot no.

MBS

60118

1119

7-Jun-58

BR652

4279

30398

DTC

60818

1119

7-Jun-58

BR680

4279

30399

MBS

60119

1120

7-Jun-58

BR652

4279

30398

DTC

60819

1120

7-Jun-58

BR680

4279

30399

MBS

60120

1121

14-Jun-58

BR652

4279

30398

DTC

60820

1121

14-Jun-58

BR680

4279

30399

MBS

60121

1122

14-Jun-58

BR652

4279

30398

DTC

60821

1122

14-Jun-58

BR680

4279

30399



Back to Top



2H 1118 Southampton Terminus to Alton  at Eastleigh June 1958 close up copyright BloodandCustard.jpg

2H ‘Hampshire’ unit no.1118 arriving at Eastleigh on a northbound service in June 1958. Note the early radiator grill.

© BloodandCustard



1959-built 3H ‘Hampshire’ units
Nos.1123 - 1126

All units to be augmented were completed by November 1959 and were followed a further batch of new 3H units numbered 1123 – 1126; these entering service as three-car units between December 1959 and February 1960. These ‘1959’units were virtually identical to the earlier units, but they lacked the external lighting trunking along the coach roofs (as did the new centre trailers in unit numbers 1101 to 1118) but retained the external water filler pipes on the driving trailers. All this batch were fitted with a wiper on the secondman’s observation light.

As introduced, none of the seating bays in the motor coaches were designated non-smoking; in the driving trailer the second-class seating was designated non-smoking as was the first-class compartment immediately adjacent to the lavatory. In the centre-trailer the non-smoking arrangements were unaltered from the earlier batch, that is when the seating was 3 (left) plus 2 (right hand side) as viewed looking down the gangway from the end of the coach.

Lot numbers were MBS 30540 and DTC 30541 with the centre trailers being ordered as part of Lot 30542 (which included the new trailers used to augment units nos.1101 ‑ 1118 to 3-car). All three Lots were ordered on 13th October 1958.

Unit number 1123 commenced trials from 14th December 1959 running two trips to Fareham followed by a trip to Bournemouth West. When all of the 1123 to 1126 batch were available for traffic the remaining steam services on the Portsmouth - Eastleigh - Andover Jct. route were turned-over to diesel operation from 2nd January 1960.



Release dates for Units from Eastleigh Works

Type

No.

Unit

Released from Eastleigh (week ending)

Diagram

HOO no.

Lot no.

MBS

60122

1123

5-Dec-59

BR652

4513

30540

TS

60668

1123

5-Dec-59

BR672

4514

30542

DTC

60822

1123

5-Dec-59

BR679

4513

30541

MBS

60123

1124

5-Dec-59

BR652

4513

30540

TS

60669

1124

5-Dec-59

BR672

4514

30542

DTC

60823

1124

5-Dec-59

BR679

4513

30541

MBS

60124

1125

12-Dec-59

BR652

4513

30540

TS

60670

1125

12-Dec-59

BR672

4514

30542

DTC

60824

1125

12-Dec-59

BR679

4513

30541

MBS

60125

1126

26-Dec-59

BR652

4513

30540

TS

60671

1126

26-Dec-59

BR672

4514

30542

DTC

60825

1126

26-Dec-59

BR679

4513

30541



Back to Top



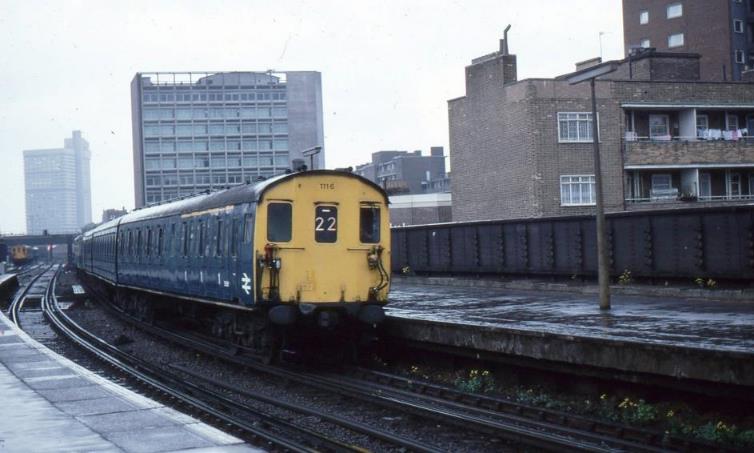

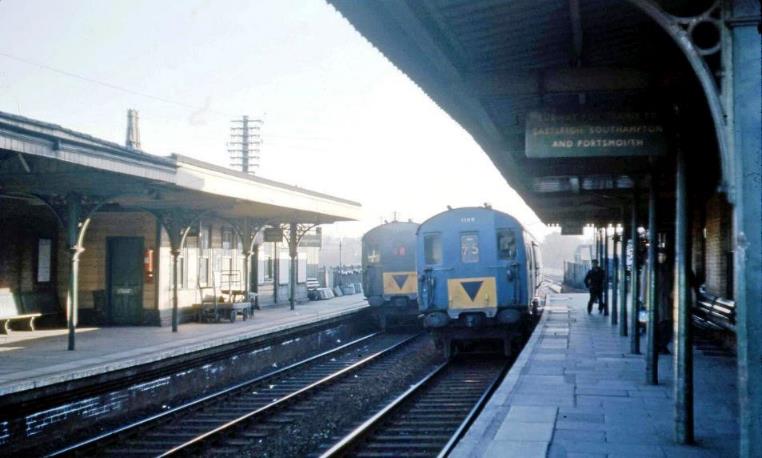

End of 1978 and early-1979 a short-lived working of 3 car DEMU units into Charing Cross took place for a few weeks. The 08.40 Hastings to Charing Cross was overcrowded into London, just rostered 6L.

By this date Eastleigh based 3H units were replacing the loco-hauled 3-Sets on the Reading - Tonbridge line and one 3H stood spare during the middle of the day at Redhill.

For a few weeks it was rostered to be attached to the rear of 07.24 Reading to Tonbridge (3R) from Redhill at 09.04, at Tonbridge it was rapidly shunted off and put into Platform 2 where the 08.40 ex Hastings then attached to it.

It returned from London on the 10.45 from Charing Cross and was detached at Tonbridge and put onto the front of the 11.46 to Reading to be knocked-off again at Redhill.

In this view taken on Wednesday 27th December 1978 unit no.1103 is on this duty standing in Platform 2 at Tonbridge with 6L 1016 is being attached to the rear. Note the 'EH' depot code on the Hampshire.

 © John Atkinson



The 1962-built 3H ‘Berkshire’ units
Nos. 1127 - 1133

The Reading to Salisbury services, the Fawley branch and the hourly Reading to Basingstoke service (with some services continuing on to Southampton Terminus) were to be dieselised during 1962. Accordingly, a further batch of 3H units was ordered for these routes.

These were delivered between May and August 1962 as unit numbers 1127 – 1133 to Lot numbers MBS 30671, TS 30672 & DTC 30673; these orders being placed on 26th April 1960. These units had amended diagram numbers; the MBS being to Diagram No. 656, TS retaining Diagram No. 672 and the DTC having Diagram No. 680.

These units had a number of detail differences from the earlier units, principally that the guards' brake was larger at 14' 5½" wide reducing the passenger saloon in the motor-coach to four bays reducing the seating to 42 second class seats.

Bodywork was similar to the 1957-type ‘Phase 2’ 1963-build 2 HAP units with smaller headcode panels, slightly tapered windscreens and windows fitted from outside the coach (with a window frame as a result) as well as altered lavatory windows. They lacked both the external lighting trunking and water filler pipes along the coach roofs.

Unit numbers 1127 to 1130 had short sections of guttering above each passenger door whilst units nos.1131 to 1133 had continuous gutters with downpipes at the cab ends.

As introduced, none of the seating bays in the motor coaches were designated non-smoking; in the driving trailer the second-class seating was designated non-smoking as was the first-class compartment immediately adjacent to the lavatory. In the centre-trailer the non-smoking arrangements were unaltered from the earlier batch, that is when the seating was 3 (left) plus 2 (right hand side) as viewed looking down the gangway from the end of the coach.

These units were fitted new with two-tone warning horns, the earlier units having been delivered with whistles (though these were altered to horns by 1964). They also had wiring and conduits for Westinghouse AWS equipment though this was sealed out of use until 1963 /1964.

Although they were also classified as 3H these units seated 13 first but only 208 second-class passengers and were referred to as ‘Berkshire’ units to distinguish them from the older sets. However, they worked on all routes operated by the earlier ‘Hampshire’ sets.



Release dates for Units from Eastleigh Works

Type

No.

Unit

Released from Eastleigh week ending

Diagram

HOO no.

Lot no.

MBS

60145

1127

9-Jun-1962

BR656

4769

30671

TS

60672

1127

9-Jun-1962

BR672

4769

30672

DTC

60826

1127

9-Jun-1962

BR680

4769

30673

MBS

60146

1128

16-Jun-1962

BR656

4769

30671

TS

60673

1128

16-Jun-1962

BR672

4769

30672

DTC

60827

1128

16-Jun-1962

BR680

4769

30673

MBS

60147

1129

16-Jun-1962

BR656

4769

30671

TS

60674

1129

16-Jun-1962

BR672

4769

30672

DTC

60828

1129

16-Jun-1962

BR680

4769

30673

MBS

60148

1130

16-Jun-1962

BR656

4769

30671

TS

60675

1130

16-Jun-1962

BR672

4769

30672

DTC

60829

1130

16-Jun-1962

BR680

4769

30673

MBS

60149

1131

16-Jun-1962

BR656

4769

30671

TS

60676

1131

16-Jun-1962

BR672

4769

30672

DTC

60830

1131

16-Jun-1962

BR680

4769

30673

MBS

60150

1132

30-Jun-1962

BR656

4769

30671

TS

60677

1132

30-Jun-1962

BR672

4769

30672

DTC

60831

1132

30-Jun-1962

BR680

4769

30673

MBS

60151

1133

14-Jul-1962

BR656

4769

30671

TS

60678

1133

14-Jul-1962

BR672

4769

30672

DTC

60832

1133

14-Jul-1962

BR680

4769

30673





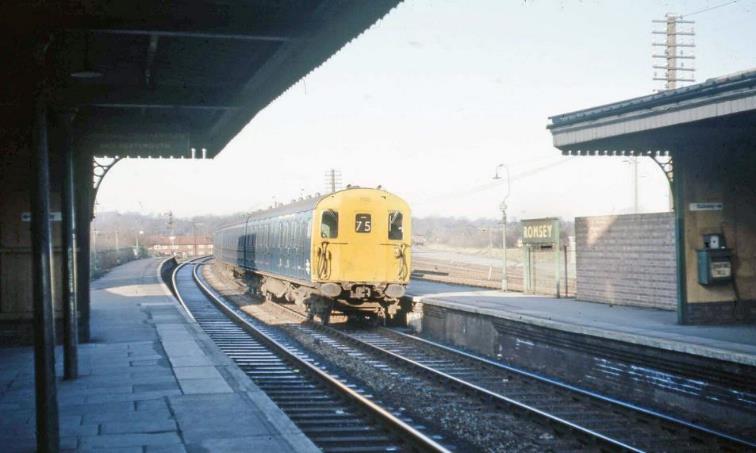

3H ‘Berkshire’ unit no.1130 entering Romsey station in 1969

© BloodandCustard





Electrical Classifications

Around 1960 all these units were allocated electrical codes, these being:

MBS                                        Code NA

MBS (units 1123-1126)       Code NA-1A

TS                                            Code TA

DTC                                         Code VA

DTC (units 1123-1126)        Code VA-1A

Unit numbers 1123 to 1126 had slight electrical differences hence the ‘1A’ coding.

The later 1962-built ‘Berkshire’ units had amended diagram numbers:

MBS                                        Code NA-2B

TS                                            Code TA -1A

DTC                                         Code VA-2B



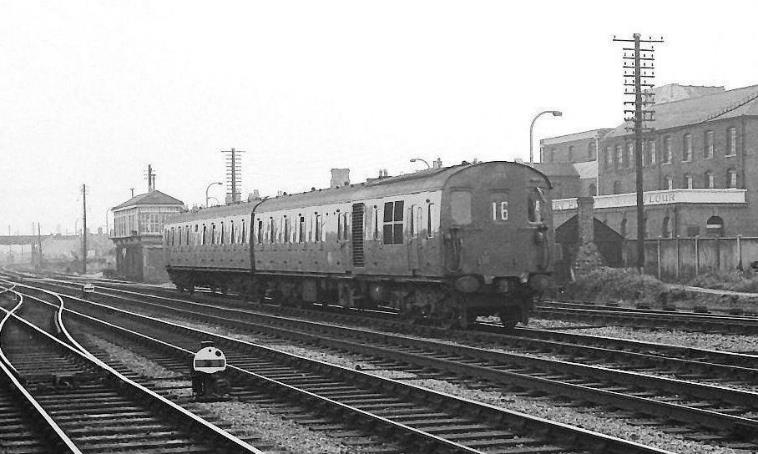

2H 1118 Southampton Terminus to Alton  at Eastleigh June 1958 copyright BloodandCustard.jpg

2H ‘Hampshire’ unit no.1118 (operating a Southampton
Terminus to Alton service) enters Eastleigh station in June 1958

© BloodandCustard


Individual Unit Notes

Original Numbers 1101 - 1133

Notes

During the winter timetables of 1960 to 1963, the Mid‑Hants line from Winchester to Alton was diagrammed for operation with 2H units and the centre trailers were removed at random from two 3H units at any one time; these reforms being of only short-term duration were not recorded officially.

St Leonards based units were occasionally temporarily reformed with motor coaches from Hastings or Oxted units, ran as 2H with the centre trailer removed or as second class only with an Oxted or Tadpole DTS due to individual vehicle defects; these again being only short-term formations and the unit usually restricted to the Ashford ‑ Hastings line whilst so formed.



1101

Unit had received an orange Vee by 4-Feb-61.

Yellow warning panels add, AWS fitted and second-class compartment in DTC 60800 converted to luggage space 7‑Mar‑64 with seating reduced to 13 first and 50 second.

DTC 60800 slightly damaged in collision (with what?) at Eastleigh Diesel depot late 1964.

Unit ran briefly with DTC 60802 & TS 60652 (ex 1103) 5‑Jul‑74 to 16‑Jul‑74 due to defects, also ran briefly in Apr-1976 with DTC 60804 (ex.1105).

Unit ran with both trailers of 1104 between 16‑Dec‑77 and 31‑Dec‑77.

Unit for C1 overhaul at Swindon including asbestos strip between Aug‑85 and 17‑Feb‑86.



1102

Yellow warning panels added 5-Aug-64 (unit was previously equipped with orange Vee).

AWS fitted and second-class compartment in DTC 60801 converted to luggage space 19‑Sep‑64 and seating reduced to 13 first and 50 second.

1102 was used in the comedy film ‘The Great St Trinian’s Train Robbery’ which was released by British Lion Films on 4th April 1966; the railway scenes having been filmed on the Longmoor Military Railway in Hampshire. The unit appeared as in its 3-car formation sporting air-horns and an inverted black triangle on the DTC.

Unit reduced to 2H during 1974 and restored to 3H c.Apr‑75.

Unit to Swindon for C1 overhaul including asbestos strip 7‑Mar‑84, released Aug‑85.



1103

AWS fitted and second-class compartment in DTC 60802 converted to luggage space 21‑Dec‑63 and seating reduced to 13 first and 50 second.

Unit had orange Vee & air horns by Mar-61 and yellow warning panels by 3-Apr-67.

Unit reduced to 2H from May‑64 for Mid‑Hants line and TS 60652 spare, although used for a time in unit no.1115 in place of 60664. Reverted to original formation Dec‑64.

DTC 60802 & TS 60652 both used briefly in no.1101 5‑Jul‑74 to 16‑Jul‑74 due to defects on 60102.

Unit temporarily reduced to 2H in Jul‑76 for a short period and DTC 60802 defective in Dec‑76 so temporarily exchanged with 60829 (ex.1130) again for a short period.

DTC 60802 also used in no.1104 Feb‑79 to Mar‑79.

TS 60652 to 2H no.1120 Mar‑80, this unit then reclassified as 3H.

Replaced by DTS (as TS) 77507 (ex. disbanded 3R 1203) and unit reclassified as 3T, renumbered 1403 Mar‑80.



1104

Unit had received an orange Vee by 9-Feb-61.

AWS fitted and second-class compartment in DTC 60803 converted to luggage space 26‑Sep‑64 and seating reduced to 13 first and 50 second.

Observed in green livery with air-horns (and orange Vee) 25-Mar-65. Yellow warning panels added 9-Oct-65.

Unit damaged in shunting collision (with what?) at Fratton depot c.Sep‑65 and repaired at Eastleigh.

Unit reverted to 2H from Jan‑67 until Jun‑67 and TS 60653 spare.

Unit damaged again in a collision with a Class 35 locomotive at Eastleigh depot early in 1972, the MBS being back in use formed in unit no.1127 in Jun-72 and no.1124 in Jul-72 whilst repairs to the trailers were completed.

Unit briefly ran as 2H during Sep‑76 and both trailers used in no.1101 from 16‑Dec‑77 to 31‑Dec‑77.

DTC 60803 defective and temporarily exchanged with 60804 (ex.1105) Jan‑79 then 60802 (ex.1103) Feb‑79 to Mar‑79 when the unit reverted to back normal. Unit reduced to 2H from May‑79 and in May-79 TS 60653 was temporarily loaned to 2H no.1122 until c.Jul‑79 when it was placed in no.1119 (this unit being reclassified as 3H).

Unit ran as 2H until about c.Jul‑79 when both coaches to Eastleigh for overhaul and released including DTS (as TS) 77503 (ex. disbanded 3R no.1202). Unit then reclassified as 3T and renumbered no.1404 c.17‑Sep‑79.



1105

Unit made up to 3H in Aug‑59 by inclusion of TS 60664 (ex.1115), but this vehicle then returned to no.1115 and unit reverted to 2H until Oct‑59 when ‘own’ 60654 was completed. Unit reverted to 2H again Nov‑59 until suburban gear ratio motors refitted early in 1960 when 60654 again formed back into unit.

Second-class compartment in DTC 60804 converted to luggage space 19‑Oct‑63 and seating reduced to 13 first and 50 second. AWS fitted Nov‑64.

Orange-Vee by Jul-61; yellow warning panels added Nov-64.

DTC 60804 used briefly in no.1101 Apr‑76. TS 60654 slightly damaged at Eastleigh Diesel depot 22‑May‑76 and unit ran as 2H for two days. Unit ran with DTC 60809 (ex.1110) briefly from 3‑Nov‑78 then 60803 (ex.1104) from Jan‑79 whilst 60804 defective.



1106

Observed on mid-Hants line May-64 with orange Vee (working with no.1129).

Second-class compartment in DTC 60805 converted to luggage space Dec‑66 and seating reduced to 13 first and 50 second. TS 60655 damaged in collision with 33 117 at Eastleigh Diesel depot 2‑Apr‑74 and to Slade Green for repairs, unit running as 2H in meantime.

Unit ran temporarily in Oct‑75 with 60815 (ex.1116) whilst 60805 had seating modified; the luggage compartment being converted into first class seating and now seated 19 first and 50 second.



1107

Unit reduced to 2H Nov‑59 until suburban gear ratio motors refitted early in 1960 when 60656 again formed back into unit. Orange-Vee by 24-Jul-61.

Second-class compartment in DTC 60806 converted to luggage space 10‑Aug‑63 and seating reduced to 13 first and 50 second.

60806 was impounded by the police from Jun‑64 until Dec‑64 following the murder of a schoolgirl in its lavatory at Basingstoke on 29‑Jun‑64. Remaining two coaches ran coupled to another 3H unit as a 5H formation until Aug‑64 when following damage to the DTC of unit no.1129 a second class only 4H was formed as follows: 60106 (MBS 1107) + 60656 (TS 1107) + 60674 (TS ex.1129) + 60147 (MBS ex.1129). Unit reverted to booked formation from Dec‑64.

Yellow warning panels added 23-Mar-66.

During 1975 /1976 the luggage space in DTC 60806 was converted to first class seating and DTC now seated 19 first and 50 second.

MBS 60106 condemned 25‑Jul‑85 due to severe roof corrosion and defective door pillars; replaced by ‘long’ Hastings MBS 60037 (ex. disbanded 3R no.1206) this coach seating 30 giving a unit total of 19 first and 184 second.

After stripping at St Leonards MBS 60106 was moved for storage at Mountfield 24‑Sep‑85 thence to Chart Leacon 15‑Oct‑85 for further stripping. Coach then stored at Tonbridge by Jun‑86, later moving from Chart Leacon 30‑Jun‑87 for scrapping at Mayer Newman (Snailwell) (burnt 26‑Oct‑87 though frame remains not cut‑up until Sep‑90).

MBS 60037 condemned 7‑Apr‑86 and stored at Mountfield thence to Chart Leacon for stripping 17‑Jul‑87. Moved to Mayer Newman (Snailwell) from Tonbridge 2‑Oct‑87 arriving 16‑Nov‑87 and burnt 18‑Mar‑88. Replaced in unit by similar 60022 (ex. disbanded 6L no.1015).



1108

MBS 60107 badly damaged in collision with light engine 30480 at Eastleigh w/e 6‑May‑61 but repaired.

Yellow warning panels added 7-Feb-64.

Second-class compartment in DTC 60807 converted to luggage space 31‑Jul‑65 and seating reduced to 13 first and 50 second.

In May‑74 MBS 60107 & DTC 60807 both exchanged with 60120 & 60820 (ex.2H no.1121) and units swapped identities. Luggage space in DTC 60820 converted to first class seating during 1975 /1976 and DTC now seated 19 first and 50 second.

Unit to Eastleigh for C1 overhaul including asbestos strip 8‑Nov‑84 and released 20‑Apr‑85.



1109

Unit ran briefly as part of ‘4H’ in Mar‑63 with 60108 and 60657 formed with 60665 + 60115 (ex.1116).

Orange-Vee by Jan-61; yellow warning panels added 18-Dec-63.

Second-class compartment in DTC 60808 converted to luggage space 2‑Jul‑66 and seating reduced to 13 first and 50 second. Unit temporarily reduced to 2H again from May‑67 to Jun‑67 and TS 60658 spare.

Luggage space in DTC 60808 converted to first class seating Jul‑74 and DTC now seated 19 first and 50 second.

Unit to Swindon for C1 overhaul including asbestos strip 16‑Nov‑84 and released c.5‑Jul‑85.



1110

Second-class compartment in DTC 60809 converted to luggage space in 1963 /1964 and seating reduced to 13 first and 50 second. Unit released from first C1 overhaul 18‑Dec‑65 fitted with AWS and ran temporarily as 2H for most of Jan-66 on Alton service before reverting to 3H.

Yellow warning panels added 9-Oct-65.

Unit had air horns by 29-May-66 and was temporarily reduced to 2H for a short period in Jan‑67.

DTC 60809 exchanged briefly with 60804 (ex.1105) from 3‑Nov‑78 though unit out of use in this formation.



1111

Unit reduced to 2H from Nov‑59 until suburban gear ratio motors refitted early in 1960 when TS 60660 again formed into unit.

Yellow warning panels added 11-Jun-65.

Unit ran with DTC 60827 (ex.1128) for a while about Jul-65 in connection with AWS tests. AWS fitted and second-class compartment in DTC 60810 converted to luggage space 24‑Dec‑65 and seating reduced to 13 first and 50 second.

MBS 60110 moved from Eastleigh to St Leonards 16‑Dec‑72 and temporarily exchanged with damaged 3D MBS 60132 (ex.1307) until Jan‑73. In this formation unit seated 13 first and 196 second.

Unit to Eastleigh 4‑May‑78 and extensively modified as prototype refurbished unit and reclassified as 3H (M). Revised seating capacities (all second class) were now MBS 60110 ‑ 39, TSO 60660 ‑ 98, DTS 60810 ‑ 76 giving a unit total of 213.

The first coach released was DTS 60810 which was inspected at Waterloo 7‑Jun‑79, this being followed by TS 60660 worked from Eastleigh to Wimbledon Park between 4 CIG & EPB units 14‑Jun‑79 and MBS 60110 which was released from Eastleigh 20‑Aug‑79 and hauled by unit no.1103 to Strawberry Hill where the unit was then formed-up and tested. The complete unit ran on test to Stewarts Lane 30‑Nov‑79 and was also used on tests coupled to a 4 CIG unit on the Shepperton branch 30‑Dec‑79.

With testing completed the unit was released to St Leonards for commissioning 27‑Feb‑80 and entered passenger service soon afterwards. Unit then normally restricted to Ashford ‑ Hastings services due to lack of first-class accommodation.



1112

Unit reduced to 2H Nov‑59 until suburban gear ratio motors refitted early in 1960 and TS 60661 formed back into unit.

Yellow warning panels added 11-Jan-64.

AWS fitted and second-class compartment in DTC 60811 converted to luggage space 8‑Feb‑64 and seating reduced to 13 first and 50 second.

This luggage area converted to first class seating Nov‑75 and DTC now seated 19 first and 50 second. Unit ran temporarily with 60815 (ex.1116) replacing 60811 during these seating modifications.

Unit to Eastleigh for C1 overhaul and asbestos strip Mar‑83.



1113

Unit briefly exchanged DTC 60812 with 60816 (ex.1117) c. Aug‑59 and also ran for a short while in late 1959 without a silencer, though this was refitted w/e 30‑Oct‑59 when unit was made-up to three coaches.

Observed in green livery with orange Vee 10-Oct-65 and may not have received (?) yellow warning panels before repainting into blue with yellow warning panels 21-Nov-66.

Second-class compartment in DTC 60812 converted to luggage space Dec‑66 and seating reduced to 13 first and 50 second.

DTC 60812 temporarily exchanged with 60816 (ex.1117) c.Aug‑70 (possibly due to damage as unit to Swindon misformed).

Unit damaged in collision with 1318 c.May‑75 (where?) and ran for a while formed with 3D MBS 60143 (ex.1318).

The luggage area in DTC 60812 converted to first class seating Mar‑76 and DTC now seated 19 first and 50 second. Unit ran temporarily with 60815 (ex.1116) replacing 60812 during these seating modifications.

Unit damaged in Battersea Park collision with Railair set 31‑May‑85 and withdrawn. Following a period in store at Selhurst depot, it was moved to St Leonards for stripping 27‑Jan‑86. MBS 60112 & TS 60662 both condemned and stored at Mountfield thence to Chart Leacon for bogie recovery 17‑Jul‑87. Moved from Tonbridge to Mayer Newman (Snailwell) for scrapping 2‑Oct‑87 arriving there 16‑Nov‑87. TS 60662 burnt 27‑Nov‑87 and MBS 60112 burnt 21‑Dec‑87.

Unit reinstated from Apr‑86 using two ex. 6-car Hastings vehicles from disbanded 5L no.1037 MBS 60044 (then running in 3D no.1319) & TSO 60561. Unit still numbered 1113 but now reclassified as Class 206. Seating 19 first /140 second and used mainly on Ashford to Hastings route.

When all the units were renumbered this unit became no.206101 from Aug‑86.



1114

Unit reduced to 2H from Nov‑59 until suburban gear ratio motors refitted early in 1960 when TS 60663 again formed into unit.

Second-class compartment in DTC 60813 converted to luggage space in 1963/4 and seating reduced to 13 first and 50 second.

Unit had yellow warning panels by 7-Sep-68.

This luggage area converted to first class seating in Apr‑76 and DTC now seated 19 first and 50 second.

Unit temporarily reduced to 2H from Mar‑71 to Apr‑71 whilst floor repairs made to TS 60663.



1115

Unit the first made up to 3H from 12‑Aug‑59 by inclusion of TS 60664, this vehicle having been built as 60650 and renumbered 60664 prior to entering traffic, though 60664 then formed briefly into unit no.1105 whilst other two coaches undergoing bogie modifications.

No.1115 had not yet received an orange Vee in 2-Feb-60 but was carrying one on 3-Nov-63 and again on 30-Oct-66.

Second-class compartment in DTC 60814 converted to luggage space 13‑Jul‑63 and seating reduced to 13 first and 50 second. TS 60664 temporarily replaced by 60652 (ex.1103) during autumn 1964.

Unit recorded as running as a 2-car 3-Nov-63 and again 26-Apr-64 on Southampton Terminus to Alton services with air horns but the early blinds appeared to have been replaced between these two dates.

Luggage area converted to first class seating Sep‑74 and DTC now seated 19 first and 50 second.

Unit given C1 overhaul (at Eastleigh?) including asbestos strip c.Oct‑81, released 13‑Feb‑82.



1116

MBS 60115 fitted with drainpipes at cab end early in 1961, (this feature was then included in the last three ‘Berkshire’ units constructed).

Unit ran briefly as part of ‘4H’ in Mar‑63 with 60115 and 60665 formed with 60657 + 60108 (ex.1109).

Second-class compartment in DTC 60815 converted to luggage space in 1963 /1964 and seating reduced to 13 first and 50 second.

Observed in green livery with orange Vee 10-Oct-65.

MBS 60115 damaged in collision with no.1310 at Oxted 11‑Dec‑72 and unit out of service for a long period whilst this coach repaired at Slade Green. DTC 60815 used temporarily in other St Leonards based 3H units whilst their own DTCs having the luggage to first class compartment modification at Selhurst. 60815 itself so modified in Jul‑74 now seating 19 first and 50 second. TS 60665 spare, though used in no.1119 from Oct‑75 to Aug‑76.

After repair MBS 60115 used in no.1129 from May‑76 until unit reinstated to traffic in original formation Aug‑76.

Unit given C1 overhaul including asbestos strip in early 1980's (details unknown).



1117

Unit briefly exchanged DTC 60816 with 60812 (ex.1113) c.Aug‑59. Second-class compartment in DTC 60816 converted to luggage space 24‑Aug‑63 and seating reduced to 13 first and 50 second.

Yellow warning panels added 8-Feb-66.

This luggage area converted to first class seating Apr‑74 and DTC now seated 19 first and 50 second.

DTC 60816 temporarily exchanged with 60812 (ex.1113) c.Aug‑70 (possibly due to damage to 60816).



1118

Unit had not yet received an orange Vee in 30-Apr-60 nor had it received a yellow warning panel 10-Nov-66.

Second class compartment in DTC 60817 converted to luggage space Nov‑67 and seating reduced to 13 first and 50 second.

This luggage space converted to first class seating Jul‑74 and DTC now seated 19 first and 50 second.

Unit ran temporarily with 3D MBS 60143 (ex.1318) late 1975, seating 19 first and 196 second in this temporary formation.

Unit to Eastleigh for C1 overhaul including asbestos strip 5‑Feb‑82, released c.June‑82.



1119

Possible unit ran as three car for a while c.Aug-75 with TC 60611 (ex 1312), in this formation seating 37 first and 144 second.

Yellow warning panels added 26-Jan-65. Air horns fitted by 24-Apr-66.

Unit ran as 3H Oct‑75 to Aug‑76 with TS 60665 (spare ex. damaged no.1116).

Unit made up to 3H in Jul‑79 by inclusion of TS 60653 (ex.1104 via 1122).

Observed in blue /grey livery 10-Aug-82.



1120

Second-class compartment in DTC 60819 converted to luggage space Jun‑67 and seating reduced to 13 first and 50 second.

Unit ran as three-car for a period from Mar‑76 with 3D TC 60617 (ex.1318), in this formation seating 37 first and 144 second.

Unit made up to three-car in May‑79 by inclusion of 3D TC 60603 (ex.1304), this being replaced by similar 60612 (ex 1313) from Sep‑79 to 24‑Nov‑79, seating capacity as above.

Unit reclassified as 3H from Nov‑79 by inclusion of TS 60652 (ex.1103). Unit ran briefly in Dec‑80 with DTC 77509 (ex.1205) replacing 60652.

Believed to be the blue ‘St Leonards’ unit.



1121

Yellow warning panels added 11-Jun-65. It is possible that as a 2H ‘Hastings’ unit no.1121 was never equipped with an orange-Vee.

AWS fitted and second-class compartment in DTC 60820 converted to luggage space Jul‑67 and seating reduced to 13 first and 50 second.

In May‑74 unit made up to 3H by inclusion of TS 60657 (ex.1108) and units swapped identities, the ‘new’ no.1121 now formed of MBS 60107 & DTC 60807.

Unit ran briefly as 3H from St Leonards in Dec‑76 with TS 60670 (ex.1125).

DTC 60807 exchanged briefly in May‑77 with 60821 (ex.1122).

In Jul‑79 2H 1121 disbanded and both coaches reformed with DTS 77500 (ex.3R 1201) to form ‘new’ 3T unit 1401.



1122

Observed running Southampton Central to Alton services 20-Sep-64 without orange Vee; it is always possible this unit was never painted with one. Yellow warning panels added 30-Oct-65.

AWS fitted and second-class compartment in DTC 60821 converted to luggage space Nov‑65 and seating reduced to 13 first and 50 second.

Observed in green livery with whistle /without orange-Vee in August 1965 and with yellow warning panels 25-Jul-66. It is possible that as a 2H ‘Hastings’ unit no.1122 was never equipped with an orange-Vee.

DTC 60821 briefly exchanged with 60823 (ex.1124) from 12‑Nov‑76 to 16‑Nov‑76 and again with 60807 (ex.1121) for a few days in May‑77, though unit out of use both times during these temporary formations.

Unit made up to 3H May‑79 with TS 60653 (ex.1104) until Jul‑79 when 60653 to intended no.1119.

Unit disbanded c.Sep‑79 and both coaches reformed with DTS 77508 (ex.3R no.1204) to form ‘new’ 3T unit no.1402.



1123

Yellow warning panels added 31-Jan-63.

Second class compartment in DTC 60822 converted to luggage space 30‑Nov‑65 and seating reduced to 13 first and 50 second.

Whistles fitted by 20-Aug-66.

This luggage space converted to first class seating Mar‑76 and DTC now seated 19 first and 50 second.

60822 temporarily replaced by 60815 (ex.1116) during these seating modifications. MBS 60122 temporarily replaced by 3D MBS 60137 (ex.1312) during early 1976, reverted to normal about May-76. Unit seated 19 first and 196 second for duration of this change.

Unit to Eastleigh for C1 overhaul including asbestos strip early 1982, released 7‑Aug‑82.



1124

Orange-Vee by 29-Mar-61; yellow warning panels added 27-Jan-65.

Second class compartment in DTC 60823 converted to luggage space 8‑Jun‑63 and seating reduced to 13 first and 50 second. AWS equipment fitted Apr‑65.

Observed in green livery with yellow warning panels 21-Feb-67.

Unit temporarily reduced to 2H from Jan‑67 until Jun‑67 and TS 60669 spare.

DTC 60823 defective and exchanged with 60821 (ex.1122) from 12‑Nov‑76 to 16‑Nov‑76.

Unit to Eastleigh for C1 overhaul including asbestos strip 18‑Aug‑83, released c.2‑Feb‑84.



1125

Second-class compartment in DTC 60824 converted to luggage space 11‑May‑63 and seating reduced to 13 first and 50 second.

Yellow warning panels added 30-Sept-64. AWS equipment fitted Oct‑64.

TS 60670 defective Aug‑76 and unit ran as 2H until made up to three cars with TS 60673 (ex.1128). Back to 2H again Oct‑76 to Dec‑76 when 60670 returned to unit, having been used briefly in unit no.1122.

Unit to Eastleigh for C1 overhaul including asbestos strip 14‑Nov‑83, released Jun‑84.



1126

Second-class compartment in DTC 60825 converted to luggage space 1‑Jun‑63 and seating reduced to 13 first and 50 second. AWS equipment fitted Jan‑65.

Yellow warning panels added 19-Jul-66.

Unit ran as 2H between 19‑Jun‑71 and c.Aug‑71 whilst TS 60671 under repair.

Unit again reduced to 2H 18‑Aug‑74 to 29‑Aug‑74 whilst vandalism damage to TS 60671 was repaired.

DTC 60825 defective Nov‑84 and temporarily exchanged with 60828 (ex.1129).

Unit to Eastleigh for C1 overhaul including asbestos strip 16‑May‑83, released c.13‑Oct‑83.



1127

AWS equipment made operational from 13‑Apr‑63.

Yellow warning panels added 5-Aug-65. Observed air horns 25-Jul-66.

TS 60672 damaged in open-door collision with no.1104 at Fareham Dec‑72 and ran as 2H for a while whilst repairs completed. MBS 60145 damaged (where?) c.Dec‑79 and to Slade Green for repairs. Unit ran with 3D MBS 60131 (ex.1306) until reverted to normal from 17‑Feb‑80.

Unit ran with both trailers of no.1130 during Feb‑83, own trailers being formed as part of no.1130 at this time.

Unit to Swindon for C1 overhaul including asbestos strip 19‑Apr‑85, released Oct‑85.



1128

AWS equipment made operational from 13‑Apr‑63. DTC 60827 used temporarily in no.1111 during July 1965 in connection with AWS tests.

Observed in green livery with orange Vee Summer 1962 and on 22-Jun-63 (with air horns).

Yellow warning panels added 27-Jan-66.

Unit ran briefly as 2H in Jan‑75. TS 60673 used in no.1125 Aug‑76 to Oct‑76 and unit out of use.

Unit ran briefly as 2H in May‑80.

Unit to Eastleigh for C1 overhaul including asbestos strip 13‑Dec‑82, released Mar‑83.



1129

AWS equipment made operational from 2‑May‑64 and Dorman engine installed at this time.

DTC 60828 damaged in collision with tender of 75066 at Eastleigh 21‑Sep‑64 and remaining two coaches formed with MBS & TS of no.1107 as second class only 4H was formed as follows: 60106 (MBS 1107) + 60656 (TS 1107) + 60674 (TS ex.1129) + 60147 (MBS ex.1129). Unit reverted to booked formation from Dec‑64.

Yellow warning panels added and Dorman engine removed 10-Sep-65.

Unit temporarily reduced to 2H May‑67 to Jun‑67 and TS 60674 spare.

Unit damaged in collision with DMMU B486 at Eastleigh Diesel depot May‑75 and repaired at Selhurst.

MBS 60147 damaged in collision with derailed tank wagon near Bursledon 4‑Oct‑75 and sent to Slade Green for repairs 26‑Feb‑76. Temporarily replaced by 3D MBS 60143 (ex.1318) and then 60115 (ex. damage repairs from no.1116) from early 1976. Seating capacity unchanged with 60143, altered to 13 first and 218 second with 60115. Reverted to original formation c.10‑Aug‑76.

TS 60674 damaged early 1978 sent to Slade Green for repairs with unit running as 2H from 25‑Jan‑78 to Apr‑78.

Unit reduced to 2H from mid Oct‑84 to 3‑Nov‑84 then DTC 60828 temporarily exchanged with 60825 (ex.1126) though unit out of use. Unit to Swindon for C1 overhaul including asbestos strip Jan-86, released May‑86.

Believed to be the last (original) green unit and last blue Eastleigh unit.



1130

Yellow warning panels added 26-Apr-66.

MBS 60148 derailed and damaged after hitting cattle near Itchen Abbas 28‑Dec‑72 and replaced by 3D MBS 60132 (ex.1307) for a few days whilst 60148 repaired.

Unit defective and DTC 60829 temporarily exchanged with 60802 (ex.1103) Dec‑76.

MBS 60148 defective and both trailers temporarily exchanged with those of no.1127 during Feb‑83.

Unit to Swindon for C1 overhaul including asbestos strip Oct‑85, released May‑86.



1131

AWS made operational from 30‑May‑64.

Yellow warning panels added 7-Apr-66.

MBS 60149 damaged in collision with 4 TC unit number 415 (damaging TC’s DTS 76297) at Portsmouth & Southsea 27‑Nov‑71 but repaired.

Unit ran with MBS 60146 (ex.1128) 9‑May‑75 to 14‑May‑75. Both trailers briefly exchanged with no.1111 Mar‑77 and unit ran for short periods as 2H in Jul‑78 and again Jun‑83.

Unit to Swindon for C1 overhaul including asbestos strip Jun‑85, released Jan‑86.



1132

Yellow warning panels added 11-Jun-64. AWS made operational from 13‑Jun‑64.

Unit reduced to 2H from Jan‑67 to Jun‑67 and TS 60677 spare.

Unit ran as 2H again from c.1‑Sep‑81 to 15‑Sep‑81.

MBS 60151 used in unit no.1402 during Nov‑83.

C1 overhaul including asbestos strip (at Eastleigh ?) Dec‑84, released May‑85.

Unit damaged in collision with no.7817 at Portsmouth Harbour 13‑Sep‑85 but repaired.



1133

Second class compartment in DTC 60832 converted to luggage space (date unknown) and seating reduced to 13 first and 50 second.

Observed in green livery with orange Vee & air horns 2-Feb-64.

Yellow warning panels added 27-May-66.

Ran with DTC 60803 (ex.1404) briefly Jan‑82.

Unit to Eastleigh for C1 overhaul including asbestos strip 21‑May‑84, released c.Dec‑84.



1401



1402

Unit ran with MBS 60151 (ex.1132) during Nov‑83.



1403



1404

Unit ex. works 17‑Sep‑79 as no.1404 formed as 2H as 77503 not ready.

Unit made up to 3T c.Nov‑79.

Unit in collision with no.6062 at Portsmouth Harbour 26‑Sep‑79.

DTC 60803 ran briefly in no.1133 Jan‑82.





3H 1107 Uckfield 1971 copyright BloodandCustard web.jpg

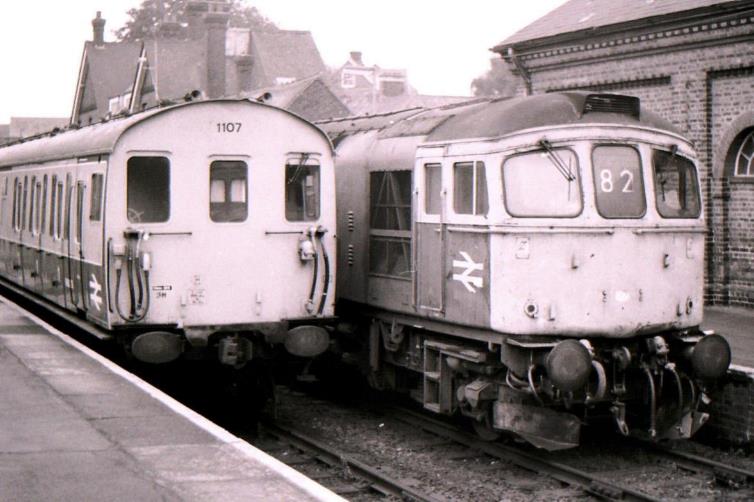

3H ‘Hampshire’ unit no. 1107 waiting to depart from Uckfield station
Alongside a class 33 has arrived hauling a peak-hour service

© BloodandCustard



Unit Maintenance

Usually at Eastleigh units received major overhauls though latterly some were dealt with at Swindon; most bogie changes took place at Chart Leacon (Ashford). Certain intermediate bodywork attention was also done at Selhurst from time to time and during the 1970s cabs were stripped of blue asbestos insulation at Strawberry Hill.

Around May 1964 unit number 1129 was experimentally fitted with a Dorman 12QTCW V12 engine of 725bhp, but the standard 4SRKT was refitted after about one year.

Back to Top



2H 1121 to Southampton Central climbing from Alton August 1965 copyright BloodandCustard web.jpg

2H ‘Hastings’ unit no. 1121 climbing towards Borovere Lane
(Alton) en-route to Southampton Central in August 1965
(note the steel sleepering on the adjacent road)

© BloodandCustard



AWS

During 1985 many of the units based at St Leonards were fitted with simplified AWS leaving just nos.1107/13/19 & 20 outstanding.

AWS equipment was made operational on these units as follows:



Unit number

Date fitted

Position
May-81

Position
Sep-81

1101

7-Mar-64

EH in use

EH in use

1102

19-Sep-64

EH in use

EH in use

1103

21-Dec-63

now 1403

now 1403

1104

26-Sep-64

now 1404

now 1404

1105

Nov-64

SE isolated

EH in use

1106

Nov-85

SE n/f

SE n/f

1107

Withdrawn

SE n/f

SE n/f

1108

Jun-85

SE n/f

SE n/f

1109

Jul-85

SE n/f

SE n/f

1110

18-Dec-65

SE isolated

SE in use

1111

Jul-65 MBS
24-Dec-65 DTC

SE in use

SE in use

1112

8-Feb-64

SE n/f

SE isolated

1113

Withdrawn

SE n/f

SE n/f

1114

Dec-85

SE n/f

SE n/f

1115

Dec-85
(Operational Sep-87)

SE n/f

SE n/f

1116

Nov-85

SE n/f

SE n/f

1117

Nov-81?

SE n/f

SE isolated

1118

Nov-85

SE n/f

SE n/f

1119

Withdrawn

SE n/f

SE n/f

1120

Withdrawn

SE n/f

SE n/f

1121

Jul-67

now 1401

now 1401

1122

Nov-65

now 1402

now 1402

1123

Oct-85

SE n/f

SE n/f

1124

Apr-65

EH in use

EH in use

1125

Oct-64

EH in use

EH in use

1126

Jan-65

EH in use

EH in use

1127

13-Apr-63

EH in use

EH in use

1128

13-Apr-63

EH in use

EH in use

1129

2-May-64

EH in use

EH in use

1130

?-64

EH in use

EH in use

1131

30-May-64

EH in use

EH in use

1132

13-Jun-64

EH in use

EH in use

1133

?-64

EH in use

EH in use

1401

From ‘new’

EH in use

EH in use

1402

From ‘new’

EH in use

EH in use

1403

From ‘new’

EH in use

EH in use

1404

From ‘new’

EH in use

EH in use



Back to Top

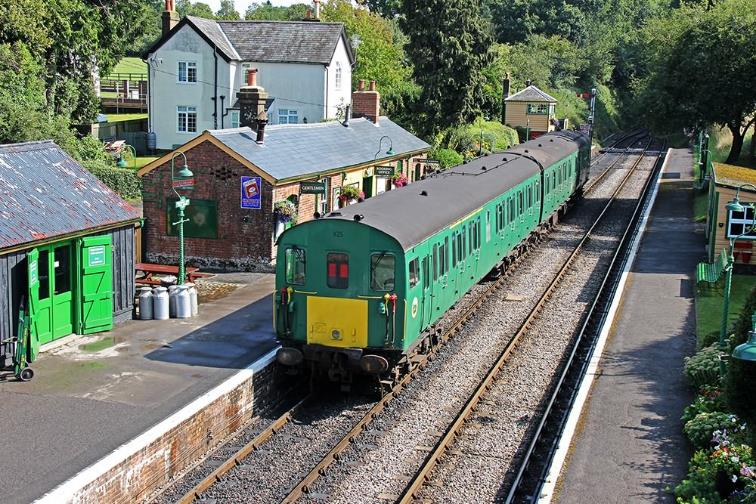

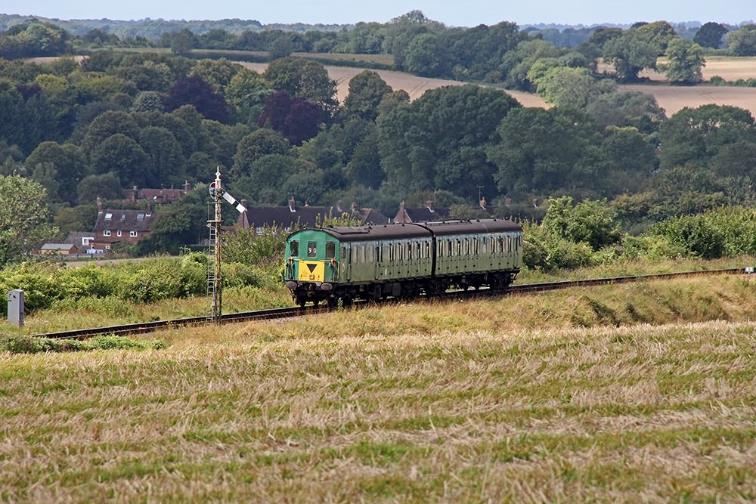

18th August 2019 preserved 2H ‘Hampshire’ unit no. 1125 approaching
Ropley with the
11:30hrs departure from Alresford to Ropley (only)

© Colin Duff



Liveries

Orange Vees

During 1960 the units started to have a large luminous orange ‘Vee’ painted on the cab ends, unit no.1102 being the first done. When the yellow warning panels were applied (1964-65) the motor-coach ends received a black triangle instead; unit no.1112 being the first about March 1964. Some units were still sporting orange Vees in the last quarter of 1965.

The imperative for the orange ‘Vee’ is believed to come from mail pick-ups at Winchester City following the introduction of 2H /3H units on the Alton to Southampton services. These units only had a brake van at one end (the motor coach) whereas the steam hauled carriage sets had brake vans at each end with the guard riding in the rear.

Postal staff would traditionally be waiting to load mail into the rear of the train but with a 2H/3H unit the only brake van might arrive at the front of the unit. As a consequence, this could cause service delays as postal staff had to move the mail along the platform to the front of the train.

Accordingly, the orange-Vee would provide an early indication to station /postal staff that there was no brake van at the other end of the unit.

As this problem did not exist on the Central Division the 3D ‘East Sussex’ units (latterly referred to as ‘Oxted’ units) were not equipped with orange-Vees.

In terms of the carriage of mail the brake van provision on 2H /3H units wasn’t generous and on later 3H ‘Berkshire’ builds a seating bay was sacrificed to provide a larger baggage area.

Inverted Black Triangles

With the introduction of small warning panels (trialled on BR(S) in 1962) the first 2-EPB units started received theirs in late 1963 with 1964 seeing a great rush to equip most units; some yellow warning panels were hastily applied in sidings. A decision was made to replace the orange-Vee with a black inverted triangle and that this useful indicator to staff should become standard for all 2 and 3-car demu /emu stock on the BR(S).

Like the orange-Vee the inverted black provided an early indication to station /postal staff that there was no brake van at the other end of the unit.

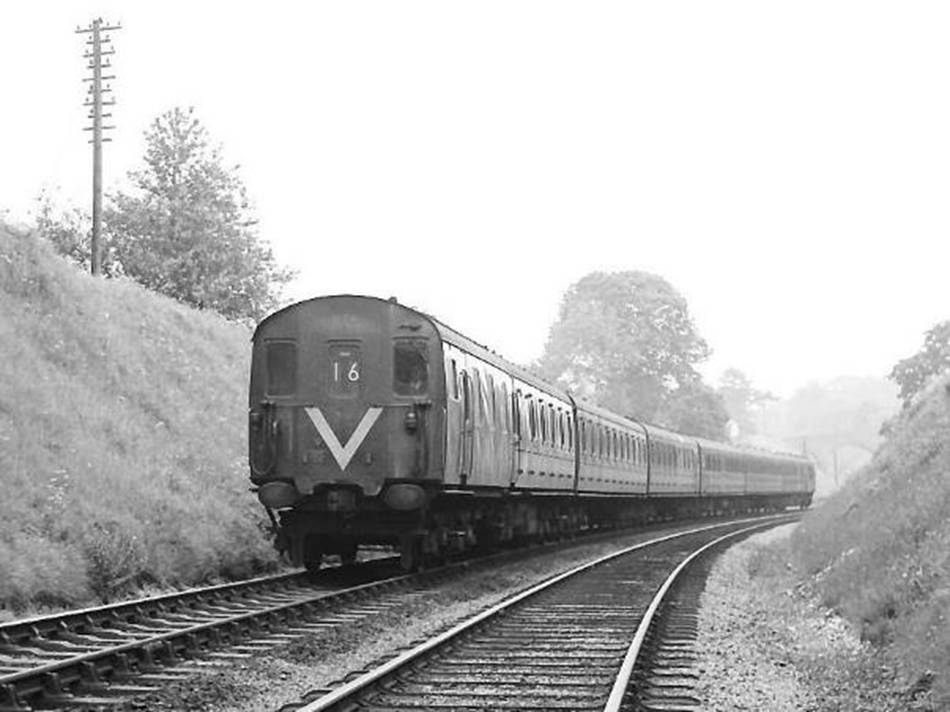

2H 1102 nearing Alton 25th April 1964 copyright BloodandCustard web.jpg

Sporting a rather grubby orange-Vee 2H ‘Hampshire’
unit no. 1102 nears Alton on the 25th April 1964
Borovere Lane (bridge) is in the distance

© BloodandCustard



Changes of Livery

From mid-1966 units started to be painted all over blue; unit number 1103 was the first being outshopped on 5th July 1966. The first few blue units (nos.1103/06/13/14) had yellow warning panels (similar to those of the green units) but subsequent blue units had full yellow ends. Motor coaches still had the small black triangle to denote ‘no brake van at the other end’.

During 1980 units started to be repainted in blue /grey, all eventually being done.

Units started to be repainted into Network South East livery with no.205001 in May 1988, all except no.205031 being done. Unit number 205029 was returned to all over green livery during August 1992, but with full yellow ends.

NB. There are observations on individual unit liveries included within the unit notes.



3H ‘Hampshire’ units nos.1106 (blue) and 1124 (green) passing at Romsey station
No.1106 received blue livery on 24-Nov-66 and no.1124 lost its green livery on 27-Feb-69.

© BloodandCustard



Liveries of Original Units
Nos.1101 - 1133

Unit

Green yellow warning panels

Blue yellow warning panels

Blue full yellow ends

Blue /Grey

Renumbered

1101

c.6-Mar-64



1-Nov-67

Aug-82

205001

1102

No record located



By Nov-67

Feb-82

205002

1103

No record located

5-Jul-66

30-Oct-68

Disbanded to 3T



1104

9-Oct-65



20-Nov-68

Disbanded to 3T



1105

Nov-64



By Nov-70

Apr-82

205005

1106

Believed not

24-Nov-66

By Nov-69

c.Nov-80

205006

1107

23-Mar-66



20-Feb-68

c.Aug-82

205007

1108

7-Feb-64



By Oct-70

By May-81

205008

1109

c.18-Dec-63



24-Dec-70

c.Apr-82

205009

1110

18-Dec-65



21-May-68

Aug-82

205010

1111

11-Jun-65



9-Oct-67

By May-81

205101

1112

31-Jan-64



11-Mar-69

Jun-83

205012

1113

Believed not

21-Nov-66

19-Dec-69

c.Dec-80

206101

1114

Believed not

9-Jan-67

c.2-Apr-69

Jul-83

205014

1115

No record located



30-Jun-67

c.May-82

205015

1116

No record located



5-Dec-67

c.Nov-81

205016

1117

8-Feb-66



18-Apr-68

Nov-82

205017

1118

No record located



10-Oct-67

c.Jun-81

205018

1119

26-Jan-65



By May-69

c.May-82

205019

1120

No record located



By Nov-68

Apr-84

205020

1121

11-Jun-65



c.May-67

Disbanded to 3T



1122

30-Oct-65



26-Jun-68

Disbanded to 3T



1123

22-Feb-66



27-Jun-68

Aug-82

205023

1124

c.27-Jan-65



27-Feb-69

Feb-84

205024

1125

c.30-Sep-64



19-Aug-69

Jun-84

205025

1126

19-Jul-66



30-12-68

c.13-Oct-83

205026

1127

5-Apr-65



By Nov-70

Dec-80

205027

1128

27-Jan-66



4-Oct-68

Mar-83

205028

1129

10-Sep-65



24-Mar-71

Jul-84

205029

1130

26-Apr-66



19-Aug-70

c.May-81

205030

1131

7-Apr-66



By Nov-70

c.Nov-81

205031

1132

c.11-Jun-64



By Jun-70

c.Jul-81

205032

1133

27-May-66



20-Jan-71

c.May-81

205033









Renumbered Units Dates of Repainting

No.

Blue /Grey

NSE (early)#1

NSE (late)#2

Connex

Green full yellow ends

Renumbered

205001

*Aug-86

11-May-88



18-Jan-99



Withdrawn

205002

*Aug-86









Withdrawn

205005

*Jul-86









Withdrawn

205006

*Jul-86









Withdrawn

205007

*Oct-86









Withdrawn

205008

*Aug-86



2-Oct-91





Withdrawn

205009

*Jun-86



9-Sep-88





Withdrawn

205010

*Aug-86









Withdrawn

205012

*Aug-86



c.Jun-88

9-Oct-98



Withdrawn

205014

*Aug-86









Withdrawn

205015

*Aug-86



14-Aug-89





Withdrawn

205016

*Aug-86



26-Jun-89





Withdrawn

205017

*May-86









Withdrawn

205018

*Jun-86



c.Apr-90





Withdrawn

205019

*Oct-86









Withdrawn

205020

*Aug-86









Withdrawn

205023

*Aug-86



31-Aug-90





Withdrawn

205024

*Jun-86



29-Apr-90





Withdrawn

205025

*Oct-86



c.Jan-90





Withdrawn

205026

*Oct-86



c.Sep-89





Withdrawn

205027

*Jun-86



c.Jan-90





Withdrawn

205028

*May-86



c.May-90

1997



Withdrawn

205029

*May-86



Aug-88



10-Aug-92

Withdrawn

205030

*Oct-86



20-Feb-89





Withdrawn

205031

*Oct-86









Withdrawn

205032

*Jun-86



Dec-89

22-Mar-00



Withdrawn

205033

*Jul-86



c.Nov-90

1997



Withdrawn

205101

*Jul-86



c.Jun-89





205205

205205





*Jun-95





Withdrawn

206101

*Jun-86









Withdrawn

Notes



*

See original unit number for the livery being carried when the unit was renumbered /reformed.

#1

Network SouthEast (First version, lighter blue, angled upsweeps).

#2

Network SouthEast (Later version, darker blue, curved upsweeps).





Back to Top

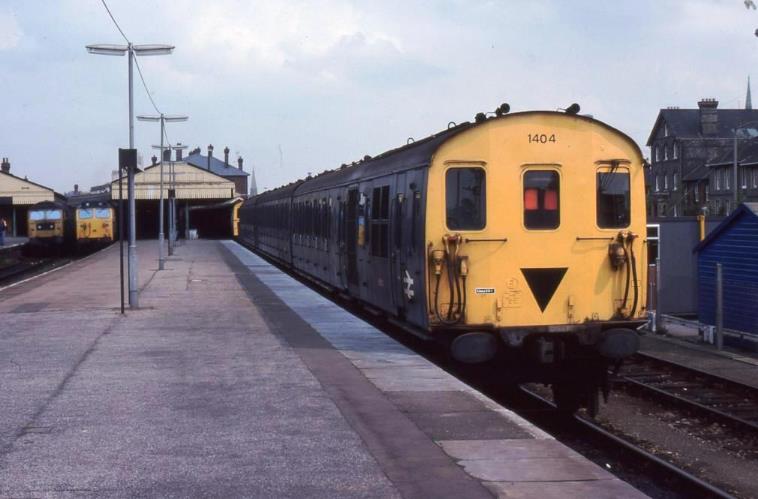

Against the feint backdrop of the Cathedral spire, Tuesday, 6th May 1980 saw 3T unit no.1404 berthed in the West End Bay platform at Salisbury between duties. An unidentified Class 47 is passing with a stone train empties heading back to Westbury whilst 50027 'Lion' is heading a Waterloo to Exeter train. Behind the DEMU is 4 TC unit no.418, probably undergoing a 'heavy clean'.

Unit no.1404 was formed in November 1979 with two coaches of old 3H unit no.1104 and the DTS 77503 from disbanded 3R no.1202 inserted between them. It appears to be carrying a '2T' designation below the 'Class 204' sticker on the cab end; it had run as a 2-car from September 1979 to November 1979.

© John Atkinson



3T Units ‘New’
(in all-blue livery)



No.

Date

Renumbered

1401

c.Nov-81

204001

1402

Jun-82

204002

1403

Mar-82

204003

1404

Oct-82

204004





Renumbered 3T Units
Dates of Repainting

No.

Date

Livery

Fate

204001

*Oct-86

Blue /grey

Withdrawn

204002

*May-86

Blue /grey

Withdrawn

204003

*May-86

Blue /grey

Withdrawn

204004

*Jun-86

Blue /grey

Withdrawn





Back to Top

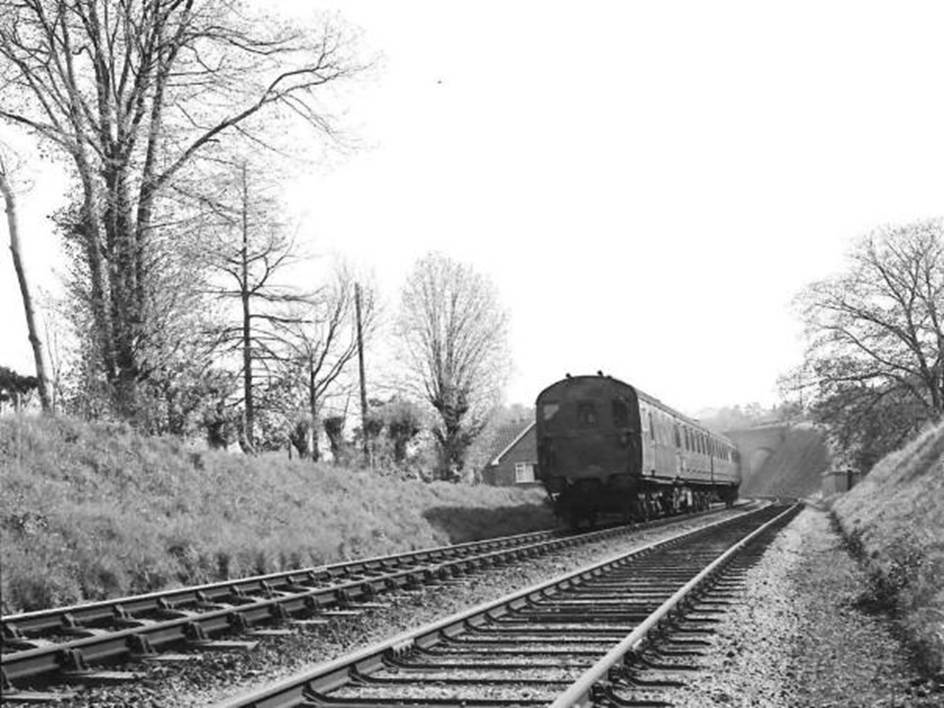

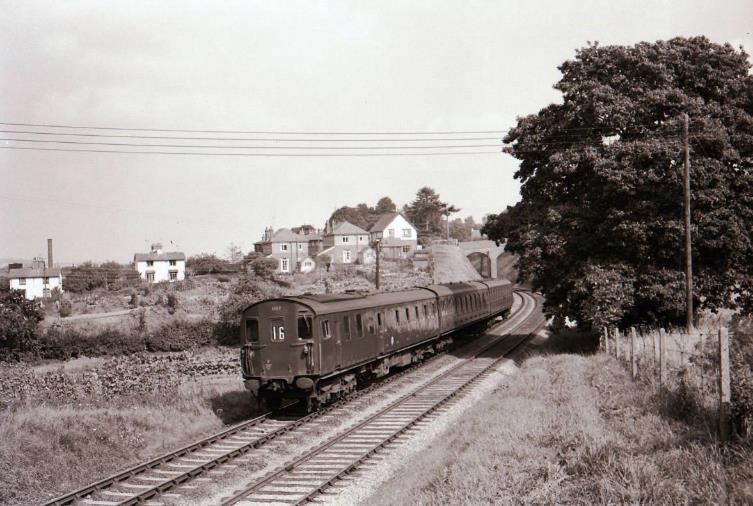

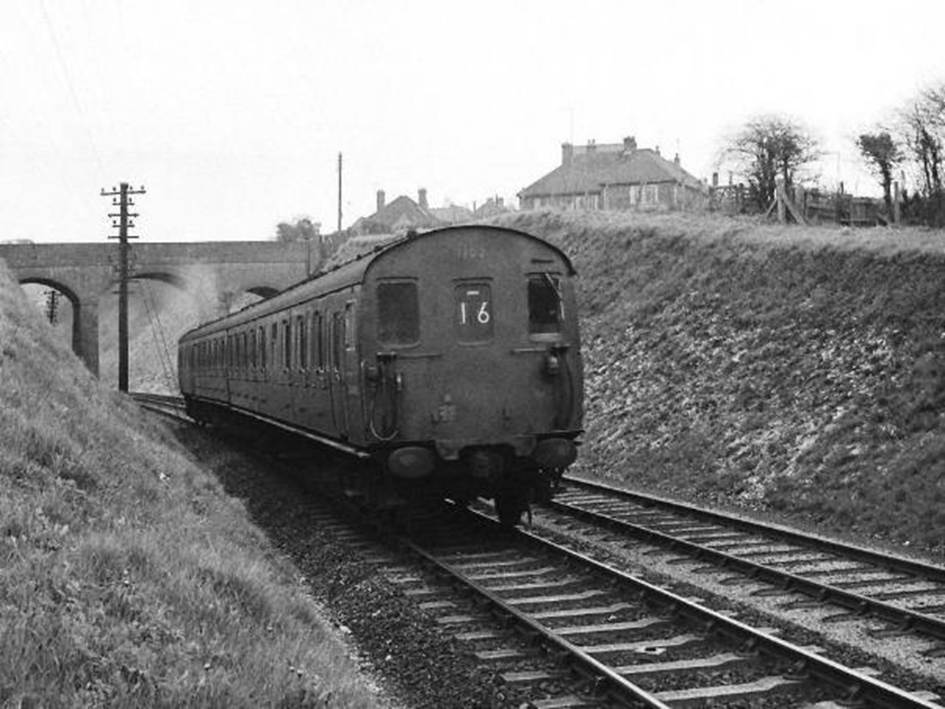

3H 1126 nearing Alton 25th April 1964 copyright BloodandCustard web.jpg

3H ‘Hampshire’ unit no. 1126 nearing Alton on the 25th April 1964
The field is now a housing estate!

© BloodandCustard



2H /3H unit Operations

Unit no.1115 was used for trials on the ‘Oxted’ lines from 27th January 1960, returning to Eastleigh from 9th February 1960.

The introduction of the ‘Berkshire’ units saw the hourly Reading - Basingstoke - Southampton Terminus services (during 1961 had been operated by WR mechanical units) incorporate the Winchester – Southampton trains. At this time the Andover – Portsmouth trains were diverted to run via Southampton in an attempt to increase traffic along the Test valley, while the service via Eastleigh was cut back to Romsey.

From Winter 1962 /63 diesel trains took over the Fawley branch services and on Sundays operated a Woking – Basingstoke service formerly operated as a steam-hauled train from Waterloo.

From May 1964 unit number 1122 (2H) was transferred to Eastleigh and along with no.1103 (which was running as 2H) these units were used for the Mid‑Hants service. In December that year unit number 1121 joined no.1122 from the St Leonards fleet and these two 2H units then worked the Mid‑Hants line until closure, though 3H units still appeared occasionally to cover for them.

Tightening up the diagrams on the Netley line (to release units nos.1114 ‑ 1118 from Eastleigh to St Leonards) enabled dieselisation of the Brighton to Horsham service in May 1964. On 3rd May 1964 these three car units were delivered to Brighton as a 15-car train unit; around this time unit number 1122 was sent to Eastleigh.

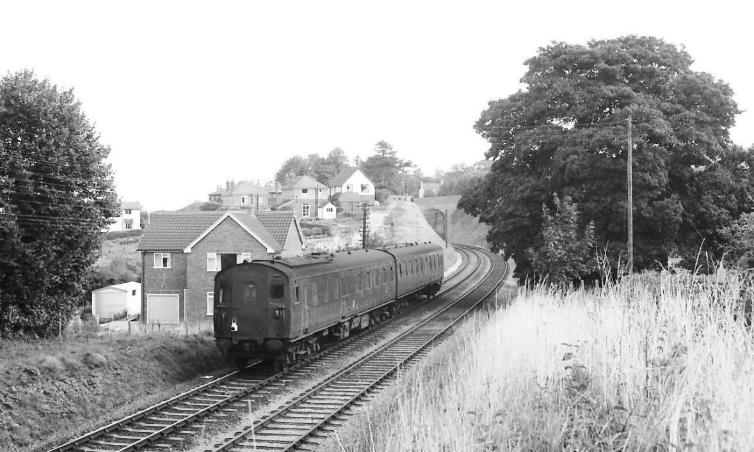

2H 1121 11.53 Alton to Southampton 9 January 1966 Copyright BloodandCustard web.jpg

2H ‘Hastings’ unit no.1121 on the 11.53 Alton to Southampton service 9th January 1966
Note the house behind the motor coach; built since the photograph was taken of no.1117 in Sep 1960
© BloodandCustard



Unit no.1115 was used for trials on East Sussex lines (as a 3H) seen at Oxted on 27th January 1960 returning to Eastleigh 9th February 1960; this was understood to be for timing trials in advance of ordering the new 3D units.

Closure of the Bexhill West branch on 15th June 1964 followed by the Romsey to Andover line from 15th September 1964 allowed a further exchange of units between St Leonards & Eastleigh in September 1964 and on 19th December 1964 units nos.1113 & 1121 were exchanged.

As other line closures affected the duties of the units, further reallocations took place. The Fawley branch closure on 14th February 1966 and Shoreham to Horsham on 7th March 1966 allowed the Swanage branch service to be worked by 3H units from 5th September 1966; this unit being exchanged each day by means of a Portsmouth – Poole working. Operations into Southampton Terminus ceased with its closure to scheduled passenger trains on 5th September 1966.

The service from Three Bridges to Tunbridge Wells was withdrawn from 2nd January 1967 and the New Romney branch closed on 6th March that year, units were then diagrammed briefly on the Lymington branch from 2nd April 1967 until electrification work was completed 2nd June 1967. During the electrification works units also worked through services from Eastleigh to Weymouth.

With the introduction of electric services from 10th July 1967 the Reading to Southampton stopping service became an electric service from Waterloo with about half the services from Reading reconfigured to work to Salisbury instead. From October 1971 the last of these Reading services was extended through to Yeovil Junction.

Other lines worked by these units to succumb to closure were Polegate to Hailsham from 9th September 1968, Uckfield - Lewes from 23rd February 1969 (though the line was not officially closed until 5th May 1969), Eastleigh – Romsey from 5th May 1969 and the Swanage branch from 1st January 1972.

By 1972 units nos.1110 ‑ 1112 were also based at St Leonards for Oxted line services, though by 1974 units at St Leonards were nos.1106‑09 /1112‑20 & 1123 with the remainder based at Eastleigh.

The closure of the Mid‑Hants line from Winchester to Alton from 5th February 1973 saw units nos.1109 and 1121 rendered spare; unit number 1109 was moved to St Leonards and number 1121 sent to Bristol for crew training, though it was regularly swapped with others from time to time for maintenance purposes.

This training of WR staff allowed the use of these units on the Portsmouth to Bristol route from May 1973 when a regular interval service was introduced; alternate hourly services from Portsmouth terminating at Salisbury. However, complaints about over-crowding and inadequate toilet provision led to this service was revised again from 1st July 1974 with joint operation by both SR & WR stock using 6-car trains wherever possible to alleviate overcrowding. The timings were also extended as the WR mechanical units couldn’t match the demu timings.

May 1973 also saw the Eastleigh – Portsmouth service reduced to an Eastleigh – Fareham shuttle.

The cessation of through workings from Portsmouth to Bristol led to an availability of Hampshire units thus enabling replacement of the loco-hauled trains on the Reading – Tonbridge line.

During 1980 and 1981 additional loco-hauled trains were introduced between Waterloo and Salisbury and most of the Reading – Salisbury demu services were diverted back to Portsmouth.

On the central division most of the Victoria services were diverted to London Bridge from October 1981 while the construction of a new air terminal took place; this diversion affected both diesel and electric operations.

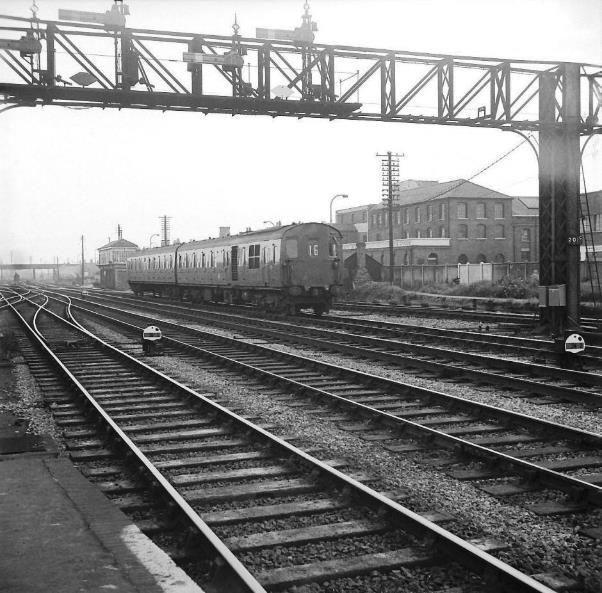

08.40 ex. Hastings with its 'Hampshire' attachment running into Waterloo East on Wednesday 7th June 1978 with unit no.1116 on the front. This was a Central Division unit so something had gone awry!

© John Atkinson



TOPS

Under the TOPS classification system, the 3H units became Class 205 & the 2H units Class 204. To exchange a 2H & 3H between these depots in May 1974, unit number 1108 lost its centre trailer to no.1121 and the units exchanged identities; this being done to keep all AWS fitted units at Eastleigh.

St Leonards based units were found to have insufficient first-class accommodation for the Oxted line peak hour trains and the former second-class compartment (now a luggage area) was converted to a seven seat first class compartment during 1975/6 on all the 3H units based there. Units involved were nos.1106 ‑ 1109, 1112 ‑ 1118 and 1123.

The centremost first-class compartment had its seating reduced to six by the cutting of a doorway from the end compartment to the side corridor, which was extended past this compartment by new partitions and sliding door to give lavatory access. The first-class seating capacity was now 19 with an identical seating layout to those in the 2 HAP units, this being reflected by the change of Diagram No. from 679 to 683.

Electrical codes were also amended from VA to VA‑3C, though unit no.1123 already having a VA‑1A coded DTC received the code VA‑1C. Whilst these conversions were carried out (usually at Selhurst during a C6 overhaul) units often ran temporarily with DTC 60815 of no.1116 which was out of service from collision damage at this time.

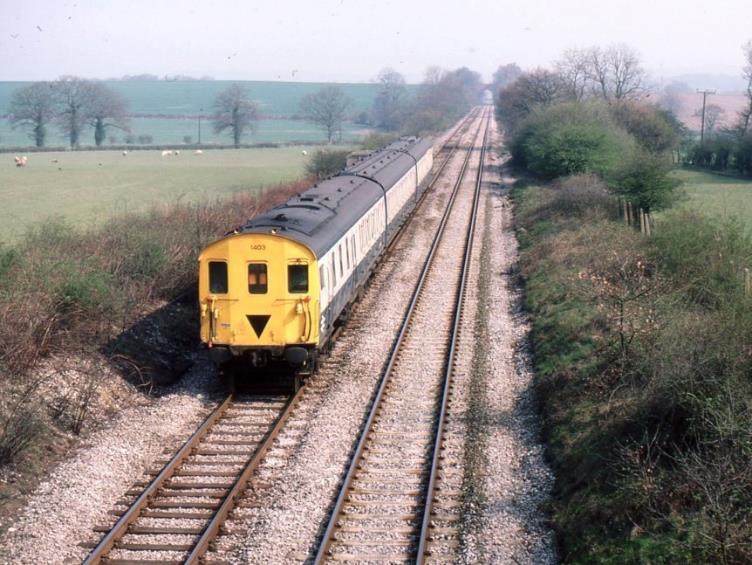

A fairly unusual appearance of a 3T unit working on the Oxted lines. In this view taken on Thursday, 18 April 1985 unit no.1403 is seen near Crowhurst Brickworks (between Lingfield and Hurst Green) with an East Grinstead to Victoria train.

Memories have long-forgotten why the unit was over on the 'Central', although it had been outshopped from Selhurst Paint Shop on 1st March 1985 in its second coat of blue /grey and so probably did not return ‘home’ between these dates.

© John Atkinson





3T & 3H(M) unit Operations

The 1979 conversion - 3T units nos.1401-1404

From May 1979, four 3R units were disbanded and their driving trailers used to augment the remaining four 2H units to three cars. Again, problems in keeping all AWS fitted units at Eastleigh led to a complex series of reforms involving units nos.1103/4, 1119/20 & 1201 ‑ 1204. As a result, four 3T units were formed; classified as Class 204 and numbered 1401 ‑ 1404, these replacing the remaining 2H units and were allocated to Eastleigh depot.

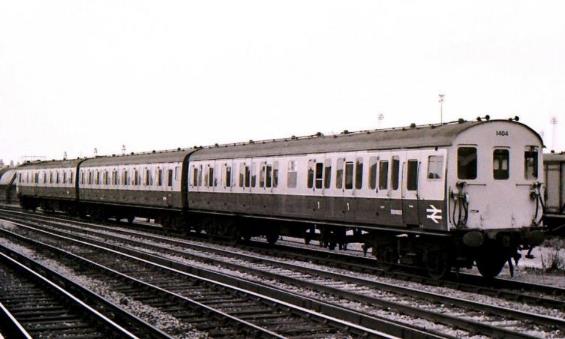

3T 1404 1971 copyright BloodandCustard web.jpg

3T unit no.1404
© BloodandCustard



The centre trailer in the 3T units was the former 3R DTS vehicle, this coach being a former 2 EPB DTS converted to DEMU operation in November 1964. This coach was formed into the unit with the redundant driving cab marshalled against the driving trailer. It seated 66 second class passengers in a four-bay open saloon and two 12 seat compartments towards the centre of the coach. The three former compartments (stripped out in 1964 to form a luggage area) remained, though rarely used now.

Various modifications to the former cab end were made and much equipment removed from this cab rendering it unusable. The yellow ends were repainted plain blue. The electrical code was amended from VC (in 3R format) to VC‑1A. These vehicles had external roof-mounted lighting trunking.

These 3T units therefore seated 13 first and 168 second and were at first given an operational distinction from the 3H units, though this was later abandoned and the units then interworked with 3H units on all services.

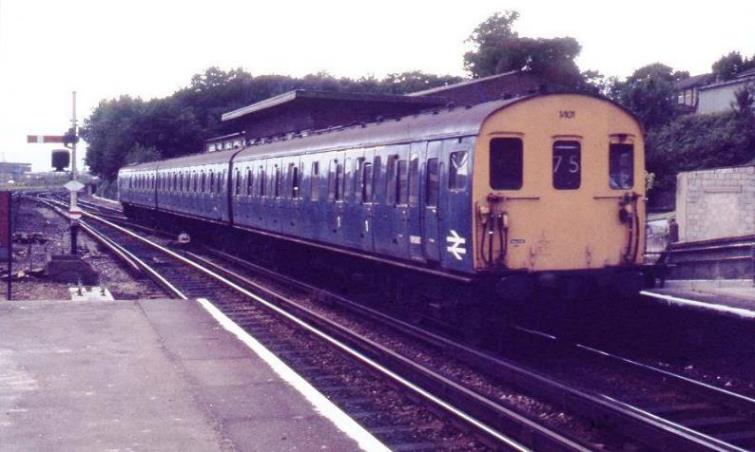

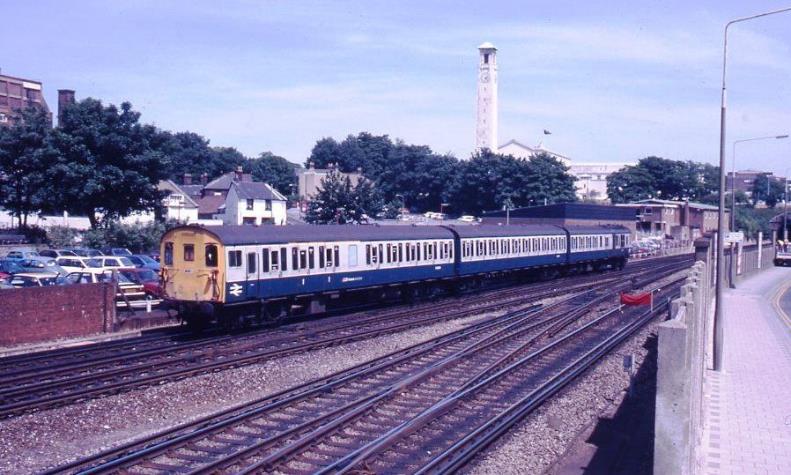

3T 1401 @ Southampton copyright BloodandCustard.JPG

3T unit no.1401 arriving at Southampton Central from Salisbury
© BloodandCustard



1979 prototype - 3H(M) unit 1111

During 1979, unit no.1111 was taken into Eastleigh works to become the prototype refurbish unit and as a consequence extensively modernised. It emerged for a series of tests during September and was classified as 3H (M), Class 205/1.

Gangways were fitted between the coaches within the unit (but not at cab ends) and false ceilings with fluorescent lighting as well as a public address system were installed throughout.

In the motor coach the passenger saloon was reduced to four bays seating 39 second with the remaining bay being converted as a new guard’s van area (although though this only occupied about half the width of the coach). The former guard’s brake became purely a luggage van with no through access to the remainder of the unit. The motor coach now weighed 56.95 tonnes.

The trailer second (TS) vehicle had the centre partition removed and with the cutting of gangways at the coach ends lost six seats overall, now seating 98 second-class. Its revised weight was 29.97 tonnes.

The Driving Trailer Composite (DTC) was converted to a DTS as the former first-class area was altered into a three bay second class saloon seating 28. The two lavatories remained towards the centre of the coach, albeit reconfigured either side of a centre through-gangway permitting access from the new three-bay saloon into the original five-bay saloon. In its modified form this coach now seated 76 second and weighed 32.31 tonnes.

This gave unit number 1111 a total of 213 second class seats and an overall weight of 119.23 tonnes. The lack of any first-class accommodation meant that unit no.1111 was usually restricted to Ashford ‑ Hastings line duties.

Unit no.1111 had its earlier ‘Baldwin’ AWS replaced by the later simplified type. The codes for the modified unit were MBS MB, TS SE, DTS UA.

During refurbishment all blue asbestos insulation was removed and various other modifications made to the cabs and control systems, each cab being fitted with new control desks similar to those in 4 VEP electric units. This included an automatic engine starter (which operated when a driver’s key was inserted) and a four-position master controller as opposed to the usual DEMU seven-position type.

The unit was made capable of easy modification to run in multiple with electric units, but as it was used with other DEMUs, this was not possible without alteration to the function of certain control wires; BR(S) diesel-electric units could only work in multiple with other diesel-electric units.

In terms of the conversion no.1111 had been rewired and fitted with a four-notch controller so it could be configured to run in multiple with electric units instead of diesel units.  The complete unit ran on test to Stewarts Lane 30th November 79 and was also used on tests coupled to a 4 CIG unit on the Shepperton branch 30th December 1979.

However, Southern Region’s CM&EE could only do one or other. So, the plan was to modify all the 2H /3H fleet as they went through works and leave the connections set as “multiple to Diesel only”. Only when the whole fleet had been through works would the units be switched over to the “EMU” method of operation.
Due to a lack of funds no further units were modified and so this fleet conversion did not come to fruition although many units (but not all) did have heavy C1 overhauls in the early 1980s when the blue asbestos insulation was stripped out.

With testing completed the unit was released to St Leonards for commissioning 27th February 1980 and entered passenger service. However, unit no.1111 (and in its subsequent no.205101 numbering) was unpopular on the Hastings – Ashford line as the four-notch controller was much less controllable than the seven-notch variant it replaced, particularly on Ham Street bank in the Autumn.  It could also be somewhat unpredictable when working in multiple with a seven-notch unit.

Back to Top





Unit Renumbering & Reformations

From June 1986 the units were renumbered into a new scheme with the class number forming part of the unit number; the 3H units becoming nos.205001 ‑ 205033 (with some gaps), the 3T units nos.204001 ‑ 204004, and no.1111 as 205101.

Following the electrification of the Hastings line in May 1986 certain badly corroded Hampshire coaches were withdrawn and replaced by former Hastings line coaches; unit no.1107 receiving ‘Hastings’ motor coach 60037 (ex. 6B unit no.1033 but received from 3R unit no.1202) in July 1985 before it was in turn replaced by 60022 (ex. 6L number no.1015) in April 1986 whilst in the same month unit number 1113 gained motor coach 60044 (ex. 6B number 1037 but received from reformed 3D unit no.1319) along with trailer second 60561 (ex. 6B number 1037). As a consequence, unit number 1113 was reclassified as Class 206 and numbered 206101.

Original unit formations are shown below, with details of subsequent renumbering.



2H 1119 app Hastings copyright BloodandCustard web.jpg

Running as a 3-car ‘Hastings’ unit no.1119 enters Hastings from Ashford

© BloodandCustard



Original Unit No.

Date Unit New

MDS

TS

Became
3-car from

DTC

New No.

Date No. change

Diagram no.
Code

652
NA

672
TA

679
VA









2H units made up to 3H during autumn 1959

1101

5-Aug-57

60100

60650

2-Oct-59

60800

205001

Aug-86

1102

7-Aug-57

60101

60651

22-Aug-59

60801

205002

Aug-86

1103

17-Aug-57

60102

60652

25-Sep-59

60802

Disbanded Mar-80



1104

23-Aug-57

60103

60653

25-Sep-59

60803

Disbanded Jul-79



1105

23-Aug-57

60104

60650
60654

6-Oct-59

60804

205005

Jul-86

1106

28-Aug-57

60105

60655

6-Oct-59

60805

205006

Jul-86

1107

30-Aug-57

60106
60037
[1]
60022 [2]

60656

25-Sep-59

60806

205007

c.Sep-86

1108

6-Sep-57

60107
60120

60657

10-Oct-59

60807
60820

205008

Aug-86

1109

6-Sep-57

60108

60658

16-Oct-59

60808

205009

Jun-86

1110

13-Sep-57

60109

60659

6-Oct-59

60809

205010

Aug-86

1111

20-Sep-57

60110
60132
[3]
60110

60660

18-Sep-59

60810

205101

Jul-86

1112

20-Sep-57

60111

60661

6-Oct-59

60811

205012

Aug-86

1113

27-Sep-57

60112
60044 [4]

60662
60561 [5]

16-Oct-59

60812

206101

Aug-86

1114

2-Oct-57

60113

60663

23-Oct-59

60813

205014

Aug-86

1115

5-Oct-57

60114

60664

8-Aug-59

60814

205015

Aug-86

1116

12-Oct-57

60115

60665

10-Oct-59

60815

205016

Aug-86

1117

19-Oct-57

60116

60666

23-Oct-59

60816

205017

?-86

1118

23-Oct-57

60117

60667

21-Sep-59

60817

205018

Jun-86

2H units made up to 3H during 1979

1119

7-Jun-58

60118

60653

Jul-79

60818

205019

c.Sep-86

1120

7-Jun-58

60119

60652

Nov-79

60819

205020

Aug-86

2H units made up to 3T during 1979

1121

7-Jun-58

60120



60820



Disbanded Jul-79



1122

7-Jun-58

60121



60821



Disbanded Jul-79





Units built as 3H

Diagram no.
Code

652
NA-1A

672
TA

679
VA-1A









1123

17-Nov-59

60122
60137
[6]
60122

60668

17-Nov-59

60822

205023

Aug=86

1124

30-Nov-59

60123

60669

30-Nov-59

60823

205024

Jun-86

1125

15-Dec-59

60124

60670

15-Dec-59

60824

205025

c.Sep-86

1126

21-Dec-59

60125

60671

21-Dec-59

60825

205026

c.Sep-86



‘Berkshire’ units

Diagram no.
Code

656
NA-2B

672
TA-1A

680
VA-2B









1127

14-May-62

60145
60131
[7]
60145

60672

14-May-62

60826

205027

Aug-86

1128

17-May-62

60146

60673

17-May-62

60827

205028

?-86

1129

31-May-62

60147
60143
[8]
60115
[9]
60147

60674

31-May-62

60828

205029

?-86

1130

6-Jun-62

60148

60675

6-Jun-62

60829

205030

c.Sep-86

1131

6-Jun-62

60149

60676

6-Jun-62

60830

205031

c.Sep-86

1132

22-Jun-62

60150

60677

22-Jun-62

60831

205032

Jun-86

1133

29-Jun-62

60151

60678

29-Jun-62

60832

205033

Jul-86



3T units formed 1979/80

Diagram no.
Code

652
NA

420
VC-1A

679
VA









1401

Formed
c.19-Jul-79

60107
(1121)

77500
(1201)



60807
(1121)

204001

c.Sep-86

1402

Formed
c.Sep-79

60121
(1122)

77508
(1204)



60821
(1122)

204002

?-86

1403

Formed
Mar-80

60102
(1103)

77507
(1203)



60802
(1103)

204003

?-86

1404

Formed
17-Sep-79

60103
(1104)

77503
(1202)



60803
(1104)

204004

Jun-86



Notes

[1]  = ‘Hastings’ long frame MBS, Diagram 651, Code MA-1A.

2  = ‘Hastings’ long frame MBS, Diagram 651, Code MA-1A.

3  = ‘Oxted’ MBS, Diagram 655, Code NB.

4  = ‘Hastings’ long frame MBS, Diagram 651, Code MA-1A.

5  = ‘Hastings’ long frame TSO, Diagram 671, Code SB-1A.

6  = ‘Oxted’ MBS, Diagram 655, Code NB.

7  = ‘Oxted’ MBS, Diagram 655, Code NB.

8  = ‘Oxted’ MBS, Diagram 655, Code NB.

9  = ‘Hampshire’ MBS, Diagram 652, Code NA.





Notes
Codes were also altered for DTCs modified with additional first-class seating, becoming:

New diagram no. 683

DTC

1108 to 1109 and 1112 to 1118

VA-3C

1123

VA-1C



Notes
Codes for modified unit 1111:



MBS

TS

DTC

1111

MB

SE

UA



Back to Top

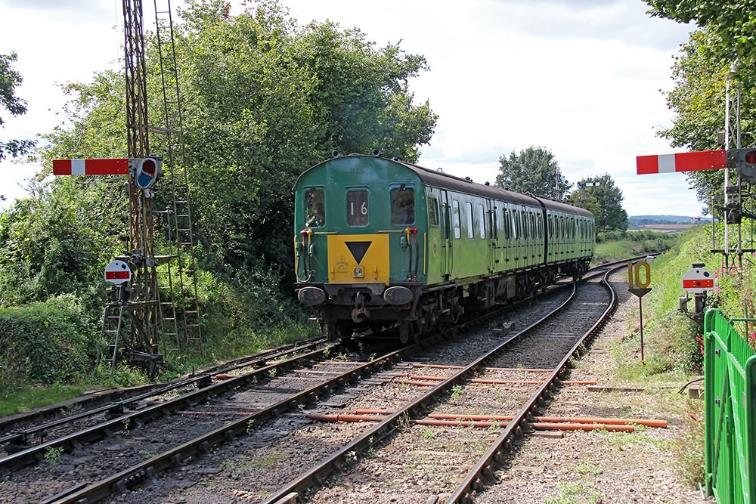

Devoid of unit end number, a 2H unit entering Alresford (from Itchen Abbas) in 1971. This is not believed to be unit no.1119 which had neither roof-mounted lighting conduit or secondman’s wiper as there appears to be a wiper drive visible above the secondman’s observation light.

Around this time both unit nos.1121 and 1122 were running around minus their secondman’s wiper. However, contemporary photographs appear to also shew no.1121 with a mis-angled air-horn – as can be seen above. At present the verdict remains open but the unit is most likely to be no.1121!

© BloodandCustard





Hampshire Units following the 1986 Renumbering

The electrification of the East Grinstead line in October 1987 led to the withdrawal (for scrapping) of most units still containing blue asbestos insulation, all the hybrid formation units going at this time along with all four 3T units. The three units still without AWS equipment (205007/19/20) were also withdrawn.

Units remaining at St Leonards depot were all transferred to Selhurst from this date.

The four 3T units were replaced by four 3D ‘Oxted’ units allocated to Eastleigh for the first time.

The May 1990 timetable change saw a reduction in DEMU diagrams at Eastleigh and units 205025 to 205027 were transferred to St Leonards. From 8th July 1991 new Class 155 ‘Sprinters’ took over the Salisbury - Southampton stopping trains and units 205028 & 205031 also followed to St Leonards. The only DEMU diagrams left on the SWD were now on the Salisbury - Reading route (some diagrams ran further west to Yeovil Jct) and the Kensington Olympia shuttle was also now provided from this fleet, a late evening Waterloo - Salisbury train being diagrammed for DEMU to circulate units for maintenance.

During 1993 a programme to convert the restricted opening droplights to alternate windows with full opening and bars was underway due to problems with interior temperatures during hot weather, though this was never completed leaving some unit retaining the initial arrangement.

Units had also been receiving fluorescent lighting and public address (PA) equipment during normal overhauls at Eastleigh and all survivors except 205008 & 205027 were done. A few other units with accident damage or body corrosion had been withdrawn from time to time and the centre trailers of units 205101 & 205015 removed; these units being reduced to 2H for use on the Ashford to Hastings service early in 1993.

Further timetable changes along with the introduction of Class 159 units at Salisbury led to virtually all remaining DEMU work at Eastleigh being removed, the final unit based there (205031) being withdrawn in July 1993; all remaining units then being maintained at Selhurst for Uckfield and Ashford ‑ Hastings line duties.

Following withdrawal and after a period in storage for component recovery, most units were disposed of for scrapping at Mayer Newman, Snailwell; many were not sold as complete units.

Back to Top



Oxted Tunnel
Restricted Openings & Window Bars

From May 1989 units allocated to Selhurst had the droplight opening restricted to about four inches due to an issue or window bars fitted surrounding tight clearances at the north portal of Oxted tunnel.

The 4 VEP units were similar fitted; these also had to have the gangways between units locked out of use whilst passing through the tunnel in order to prevent access to the droplights of the intermediate driving cab vestibules. Window bars were fitted over the droplights of alternate doors and to those doors with no interior handles.

The restriction at Oxted tunnel came about through a scheme to improve the alignment (and therefore raise the linespeed) at the northern portal; indeed, the scheme improved the clearances to the tunnel wall.

Unfortunately, when this was presented to Her Majesty’s Railway Inspectorate for approval the response was electrification constituted significant works and so the clearances should conform to the ‘blue book’.

Oxted tunnel was the Central Division’s longest so singling was not practical and slab-tracking prohibitively expensive. Although considered ‘passenger unfriendly’ restricted openings and window bars were the only solution.

Back to Top



18th August 2019 preserved 2H ‘Hampshire’ unit no. 1125
arriving at Ropley station

© Colin Duff



Hampshire Units into Privatisation

Units remaining in traffic on 1st April 1994 were all allocated to the ownership of the Porterbrook train leasing company under the BR privatisation arrangements and marked ‘P’ against the unit number.

3H(M) 205101 had been reduced to a two car from January 1993 and the TS vehicle converted to a Sandite trailer (being taken into departmental stock). However, this unit reverted to three cars again from June 1995 with the inclusion of a former 4 CEP TSO vehicle converted for DEMU operation; this vehicle actually being a former loco‑hauled TSO converted to EMU use in March 1982 during the 4 CEP refurbishing. At this time 205101 was renumbered as 205205.

The motor coaches of withdrawn units 205027 & 205031 also entered departmental stock, running as Sandite unit 951069 coupled each end of the former TS vehicle from 205101. This unit was outshopped in NSE livery, only the former blue/grey coach from 205031 being fully repainted. However, during 1997 the unit was overhauled at Chart Leacon and turned out in the new Railtrack brown based livery; it was renumbered 930301 at this time.

The only surviving single de-icing car (ex 4 SUB augmentation trailer) was modified to run with DEMU stock and on 6th June 1998 ran a trial trip formed into unit 930301 in place of the DEMU Sandite trailer. This unit was then available as a standby De‑Icing unit, extending its regular season of use.

In 1997 units 205028 and 205033 were both repainted into the Connex Yellow /White livery during overhauls at Eastleigh, and 205009 was similarly treated in September 1998. Unit 205205 was sent to Eastleigh in July 1998 for engine repair and overhaul and was also released in Connex Livery, returning to Selhurst depot in October 1998 where the ex-CEP trailer was removed and stored and the unit re-entered service as a two car once again.

Unit number 205012 was also reduced to two cars in October 1998 following lengthy repairs to its door pillars, though the TS was not repaired and 205024 was similarly reduced in January 1999 although the TS initially remained as a serviceable spare.

Three car unit number 205001 was sent for overhaul at Eastleigh December 1998 and was released as a two-car on 18th January 1999 in Connex livery, the trailer coach (TS) remained at Eastleigh having not been overhauled.

Unit number 205025 was also reduced to two cars from April 1998, having been out of traffic since November 1998 with extensive body repairs to the motor coach. This unit remained in NSE livery and the trailer (TS) was stored unserviceable at Selhurst.

Now reduced to two cars these four units were then reclassified as Class 205/1 and were intended for use on the all-day Oxted to Uckfield shuttle services with the remaining three car units (Class 205/0) being mostly used on the through Uckfield to London peak-hour services.

Unit 205205 was also reclassified, running as Class 205/3 when formed with the ex-CEP trailer in the formation but in the winter months as Class 205/2 when running as a two car unit without the ex-CEP trailer. Unit 205024 suffered a serious engine failure in June 1999 and was not repaired; all the coaches remaining at Selhurst for use as spare parts donors. The final unit remaining in NSE livery (205032) was taken in for repainting at Selhurst depot from 22nd March 2000.

Early in 2001 a number of units were out of traffic following the discovery of cracks in the wheel centres of some wheelsets. Unit 205001 was out of use from April to June 2001 whilst unit 205033 (which was out of traffic for an engine defect) had most of its wheelsets removed for use in other units. As a consequence 205033 wasn’t put back into traffic until mid-December 2001 after an engine change at St Leonards.

Defects in the wiring of former CEP trailer 71634 (in unit 205205) saw this coach removed from the unit in January 2001 and stored at Selhurst depot; the unit now running as 2H and restricted to the Uckfield line. Unit 205025 was subsequently out of use for about 8 weeks in the spring of 2001 following damage to one cab after collision with a fallen tree near Three Oaks.



18th August 2019 preserved 2H ‘Hampshire’ unit no. 1125
calls at Medstead and Four Marks station

© Colin Duff



TPWS

All units surviving in traffic beyond 31st March 2003 were required to be fitted with ‘Train Protection Warning System’ or TPWS, this being an enhanced form of AWS equipment to prevent trains overrunning red signals. Units began to be fitted by contractors at Selhurst as late as March 2003. However, during this work there were some problems following the exposure of blue asbestos material in one cab of unit 205028. Accordingly, all units had to be inspected resulting in an inability to meet the TPWS deadline. As a consequence, there was a short period during April 2003 when the two Uckfield line peak hour trains (am London Bridge up, am Victoria up, pm London Bridge down, pm Victoria down) had to be temporarily revised until sufficient units could be fitted.



3H 205030 @ Southampton copyright BloodandCustard.JPG

‘Berkshire’ 3H unit number 205030 departing from
Southampton Central with a Portsmouth & Southsea service

© BloodandCustard



170s & Last Mainline Operations

In the latter part of 2003, the delivery of the first batch of the new diesel trains; six two-car Class 170 units to Selhurst marked the beginning of the end for the DEMU units. One new 170 unit began operation on the Uckfield line in December and the whole of the Oxted - Uckfield shuttles were turned over to Class 170 operation from 1st March 2004, though the peak‑hour through trains to & from London remained DEMU operated. This allowed withdrawal of two units; 205012 with poor bodywork and 205025 which was due for a bogie overhaul.

From May 2004 further Class 170 diagrams on the Ashford - Hastings line saw most DEMU operation on that line finish, though units made odd appearances there until July. From August, the remaining 3H units were those mostly used on the two through Uckfield - London workings each weekday morning and evening with the two-car units being held in reserve. However, 205205 was taken out of traffic at the end of July 2004 with a generator defect, leaving only 205001 as a two-car; this being regularly used in place of three-car units.

Unit 205018 was last used on 17th August 2004 and 205033 was out-of-use early in September, leaving just units 205001 /09 /28 /32 serviceable. From Monday 27th September 2004, the Uckfield line peak hour trains were diagrammed for six-car Class 171 formations, whilst the Oxted - Uckfield shuttles went over to four-number class 171 units. However, at this stage none of the two‑car 170 units had had their couplers changed to the Dellner type to enable them to run with the four-car Class 171 units, so the DEMU units remained in service for another week. The 170 units were re-designated class 171 after conversion to Dellner couplings.





New Number

MBS

TS

DTC

Original number

Withdrawal



3T units, Class 204

Diagram no.
Code

652
NA

420
VC-1A

679
VA





204001

60107

77500
77503

60807
60802

1121 (TS 1201)

17-Aug-87

204002

60121

77508

60821

1122 (TS 1204)

9-Nov-87

204003

60102

77507

60802
60803

1103 (TS 1203)

5-Oct-87

204004

60103

77503
77500

60803
60807

1104 (TS 1202)

19-Nov-87



‘Hampshire’ units, Class 205/0
Units with two first and luggage compartment in DTC

Diagram no.
Code

652
NA

672
TA

679
VA





205001 P

60100 1
60154

60650
-
60658
-
60678 3
-

60800
60808
2
60800

1101

9-12-04

205002

60101 4
60155

60651
60657

60801
60813
5
60801
60814
6
60801
60820 7

1102

2-Sep-91

205005

60104

60654

60804

1105

31-Aug-87



Units with three first compartments in DTC

Diagram no.
Code

652
NA

672
TA

683
VA-3C





205006

60105

60655

60805

1106

5-Oct-87

205007

60022 8

60656

60806

1107

5-Oct-87



Units with three first compartments in DTC

Diagram no.
Code

652
NA

672
TA

683
VA-3C





205008 P

60120
60120

60657
60651

60820
60801
9
60826 10

1108

7-Apr-94

205009 P

60108

60658
-
60658

60808
60800
11
60808

1109

9-Dec-04



Unit with two first and luggage compartment in DTC

Diagram no.
Code

652
NA

672
TA

679
VA





205010

60109

60659

60809

1110

5-Oct-87



Units with three first compartments in DTC

Diagram no.
Code

652
NA

672
TA

679
VA-3C





205012 P

60111

60661
60811
60663
60661
-

60801 12
60811



1112

6-Feb-04

205014

60113

60663
60668
60661
60663

60813
60822
13
60811
60813

1114

15-May-88

205015 P

60114

60664
-

60814
60801
14
60814

1115

9-Jun-93

205016 P

60115

60665

60815

1116

9-Jun-93

205017

60116

60666

60816

1117

5-Oct-87

205018

60117

60667
60674 15

60817
60828 16

1118

17-Aug-04



Unit with two first and one second compartment in DTC

Diagram no.
Code

652
NA

672
TA

680
VA-3B





205019

60118

60653

60818

1119

31-Aug-87



Unit with two first and luggage compartment in DTC

Diagram no.
Code

652
NA

672
TA

679
VA





205020

60119

60652

60819

1120

5-Oct-87



Unit with three first compartments in DTC

Diagram no.
Code

652
NA-1A

672
TA

683
VA-1C





205023 P

60122

60668
60663
60668
60669
60668

60822
60801 17
60822
60823 18
60822

1123

19-Mar-94



Units with two first and luggage compartment in DTC

Diagram no.
Code

652
NA-1A

672
TA

679
VA-1A





205024 P

60123

60669
60668
60669
-

60823
60822
19
60823

1124

22-June-99

205025 P

60124

60670
60678 20

60824

1125

17-Feb-04

205026

60125

60671

60825

1126

26-Nov-90



‘Berkshire’ units, Class 205/0

Diagram no.
Code

656
NA-2B

672
TA-1A

680
VA-2B





205027 P

60145

60672

60826
60801 21

1127

Jun-94

205028 P

60146
60142
22
60146

60673

60827

1128

10-Nov-04

205029 P

60147

60674
60609 23
60674
60667

60828
60909
24
60828
60817

1129

7-Jan-95

205030

60148

60675

60829

1130

29-Aug-92

205031 P

60149

60676

60830

1131

14-Jul-93

205032 P

60150
60146
60150

60677

60831

1132

25-Nov-04

205033 P

60151

60678
_
60678

60832

1133

27-Nov-04


Facelifted ‘3H (M)’ unit, Class 205/1

Code

MB

SE

UA





205101 P

60110

60660
-

60810

1111

Renumbered
205205
12-Apr-95

Code

MB

BX-4E

UA





205205 P

60110

71634 25
­-
71634 26

60810

205101

26-Jul-04

Unit reformed with two ‘Hastings’ vehicles,
DTC three first compartments, Class 206/1

Diagram no.
Code

651
MA-1A

671
SB-1A

683
VA-3C





206101

60044

60561

60812

1113

5-Oct-87



Notes:

#1          Renumbered 60154 6‑89.

#2          DTC Diagram 683, Code VA‑5E.

#3          TS Code TA‑3C.

#4          Renumbered 60155 6‑89.

#5          DTC Diagram 683, Code VA‑3C.

#6          DTC Diagram 683, Code VA‑3C.

#7          DTC Diagram 683, Code VA‑3C.

#8          ‘Hastings’ Long frame MBS, Diagram 651, Code MA‑1A.

#9          DTC Diagram 679, Code VA.

#10       DTC Diagram 680, Code VA‑2B.

#11       DTC Diagram 679, Code VA‑4D.

#12       DTC Diagram 679, Code VA.

#13       DTC Code VA‑1C.

#14       DTC Diagram 679, Code VA.

#15       ‘Berkshire’ TS Code TA‑3C.

#16       ‘Berkshire’ DTC, Diagram 680, Code VA‑8F.

#17       DTC Diagram 679, Code VA.

#18       DTC Diagram 679, Code VA.

#19       DTC Diagram 683, Code VA‑1C.

#20       TS Code TA-3C.

#21       DTC Diagram 679, Code VA.

#22       ‘Oxted’ MBS Diagram 655, Code NB.

#23       ‘Oxted’ TC Diagram 667, Code TB.

#24       ‘Oxted’ DTS Diagram 681, Code VB.

#25       4 CEP TSO.

#26       4 CEP TSO.







Notes
Codes were also altered again when units fitted with fluorescent lighting and PA systems, becoming:



MBS

TS

DTC

205001

NA-3C

TA-2B

VA-4D

205009 /12 /18

NA-3C

TA-2B

VA-5E

205023

NA-4D

TA-2B

VA-7E

205024 /25

NA-4D

TA-2B

VA-6D

205028 /29 /32 /33

NA-5E

TA-3C

VA-8F

205205

MB

BX-4E

UA





Individual Unit Notes - Renumbered Units

204001

Unit withdrawn 17‑Aug‑87 and DTS 77500 & DTC 60807 both went to 204004, being replaced by 77503 (ex.204004) & 60802 (ex.204003).

Unit then stripped at Eastleigh and moved to Clapham Yard 19‑Oct‑87, thence to Canterbury West 26‑Oct‑87 pending stripping at Chart Leacon.

Moved to Mayer Newman (Snailwell) for scrapping 2‑Feb‑88 arriving there 11‑2‑88, though MBS 60107 was detached from the train at Bishops Stortford due to fire damage in DTC 60806 (of unit 205007). 60802 burnt 15‑Feb‑88 and 77503 burnt 17‑Feb‑88. MBS 60107 moved from Ely to Vic Berry, Leicester for scrapping 19‑Dec‑89.



204002

Unit officially withdrawn 5‑Oct‑87 but still in traffic and reinstated from 26‑Oct‑87 and reformed as part of a 4H unit 204004 from 9‑Nov‑87, DTS 77508 removed from unit and sent from Eastleigh to Chart Leacon for stripping 20‑Dec‑88, thence stored at Sevenoaks until moved to Mayer Newman (Snailwell) for scrapping 26‑Jan‑89. Burnt 13‑Apr‑89.



204003



DTC 60802 to withdrawn 204001 Jul‑87 and replaced by 60803 (ex stored 204004). Unit withdrawn 5‑Oct‑87 and moved to Clapham Yard 19‑Oct‑87 thence to Canterbury West 26‑Oct‑87 pending bogie recovery at Chart Leacon before returning to Eastleigh.

Moved from Eastleigh to Ore 25‑Aug‑88 and after further stripping at St Leonards and Chart Leacon unit stored at Sevenoaks until moved to Mayer Newman (Snailwell) for scrapping 9‑Dec‑88 arriving there 22‑Dec‑88. Coaches 60803 and 77507 both burnt 2‑Jan‑89, 60102 burnt 6‑Jan‑89.



204004



Unit stored from Jul‑87 and DTS 77503 exchanged with 77500 (ex withdrawn 204001). DTC 60803 to 204003 and replaced by DTC 60807 (also ex withdrawn 204001). Unit back to traffic Aug‑87.

Unit officially withdrawn 5‑Oct‑87 but still in traffic. Reinstated from 26‑Oct‑87 and reformed as 4H unit 204004 from 9‑Nov‑87 with two coaches from disbanded 204002. Formation now 60807 (DTC) + 60103 (MBS) + 60121 (MBS) + 60821 (DTS) though officially the motor coaches should have been placed at the outer ends. As 4H 204004, the former coaches of 204002 were not renumbered and this unit suffered a serious failure on 15‑Nov‑87 so was withdrawn again from 19‑Nov‑87 for disposal.

DTS 77500 stored withdrawn, later joined by motor coach 60103 with both sent to Chart Leacon for bogie recovery 20‑Dec‑88. Moved to Mayer Newman (Snailwell) for scrapping 26‑Jan‑89. 77500 burnt 13‑Apr‑89 and 60103 burnt 20‑Apr‑89.

DTCs 60807 & 60821 and MBS 60121 moved from Eastleigh to Ore 25‑Aug‑88 and then stripped at St Leonards and Chart Leacon before the DTCs were stored at Sevenoaks. Moved to Mayer Newman (Snailwell) for scrapping 9‑Dec‑88 arriving there 22‑12‑88. 60821 burnt 4‑Jan‑89 and 60807 burnt 5‑Jan‑89. MBS 60121 was heavily stripped of parts at Chart Leacon and Eastleigh with the Shell dispatched by road from Southampton Down Yard to Vic Berry, Leicester for scrapping 2‑Apr‑90. It was destroyed by fire in the large stack of bodies in this yard on 10‑Mar‑91.



205001

Droplight restrictions applied Apr‑89. MBS 60100 renumbered 60154 from 27‑Jun‑89 to clear the number range for the new Class 60 locomotives.

Unit (along with 205018) was involved in the head-on collision with 205029 & 205032 near Cowden on 15‑Oct‑94 and damaged, but was back in traffic on 25‑Oct‑94.

Unit to Eastleigh for overhaul 9‑Dec‑98 and released 18‑Jan‑99 in Connex livery as a two car, TS 60650 remained at Eastleigh and was not overhauled. The unit now seated 13 first and 102 standard, weighed 88 tons and was 133' 3½" long.

It was temporarily reformed with trailers 60658 & 60808 (both ex.205009) on 12‑Feb‑99 before reverting to three cars now seating 19 first and 206 standard, weighing 118 tons and being 199' 6" long. However, it was reformed yet again as two car at Selhurst depot with 60800 (Jun‑99) when 205009 was released from engine repairs at Eastleigh and back to traffic 6‑Jul‑99.

Unit once again temporarily made-up to three cars from 30‑Dec‑99 using TS 60678 (ex.205033) before this coach was transferred to 205025 from 9-Feb-00.

205001 was last used in main-line traffic on the 18:32hrs Uckfield to East Croydon (9‑Dec‑04). It was withdrawn and hauled to Tonbridge West Yard for store on 17‑Dec‑04. The unit sold to the East Kent Railway and hauled to Stewarts Lane on 19‑Jan‑05. Both coaches were moved by road to Shepherds Well; 60154 on 19‑Jan‑05 and 60800 on 20‑Jan‑05.

Withdrawn TS 60650 remained stored at Eastleigh until it was cut‑up there by Nicholas Steel during Oct‑05.





205002

Unit in collision with fallen tree near Dormans 27‑Mar‑87 with the DTC 60801 badly damaged at one end and both sides of second class saloon when tree pierced through coach. This coach went to 205023 from Apr‑87 whilst repaired at Selhurst and was replaced by 60813 (ex.205014). 60813 had three first class compartments so the unit then seated 19 first and 206 second.

Unit back to original formation from May‑88. Droplight restrictions applied Apr‑89.

MBS 60101 renumbered 60155 from 27‑Jun‑89 to clear the number range for the new Class 60 locomotives.

Unit ran briefly in Dec-90 with DTC 60814 (ex.205015), again seating 19 first and 206 second. Both trailers (60651 & 60801) were exchanged with 60657 & 60820 (both ex.205008) Aug‑91 with the unit moved to Eastleigh for stripping 28‑Aug‑91 and withdrawal 2‑Sep‑91.

MBS 60155 & TS 60657 were hauled to Mayer Parry (Snailwell) for scrapping 27‑Jan‑92 with 60657 burnt that day, 60155 burnt 29‑Jan‑92.

DTC 60820 was sold for preservation to Hastings Diesels Ltd Mar‑93 and moved to St Leonards Depot, being hauled from Eastleigh to Eastbourne on 3‑Jun‑93 by withdrawn 4‑CAP unit 3323. It was then stored for a while in Hastings Goods Yard before arrived at St Leonards depot 24‑Jul‑93.

The coach restored to green livery and ran to Exeter Rail Fair (30-Apr-94 to 1-May-94) before again running with MBS 60118 to/from Tonbridge 12‑May‑95 on the occasion of this motor coach’s naming ceremony. Coach subsequently sent out on loan to the Lavender Line at Isfield; moving by road from St Leonards 18‑Oct‑07.





205005

Unit damaged in a sidescrape incident at New Cross Gate 17‑Jun‑87 and withdrawn 31‑Aug‑87. Unit moved to Selhurst for store thence to Gatwick c.20‑Nov‑87. Taken to Chart Leacon for bogie recovery, both trailers then moving to Ore for further storage.

DTC 60804 & TS 60654 both moved from Ore to Mayer Newman (Snailwell) for scrapping 15‑Feb‑89, arriving 22‑Feb2‑89. Both coaches burnt 20‑Mar3‑89.

MBS 60104 moved from Chart Leacon to Eastleigh also on 15‑Feb‑89 and extensively stripped. The Shell was taken by road from Southampton Down Yard to V. Berry, Leicester on 26‑Mar‑90 for scrapping, arriving w/c 9‑Apr‑90.





205006



Unit withdrawn 5‑Oct‑87 and stored /stripped at both St Leonards and Chart Leacon. MBS 60105 taken to Selhurst for engine recovery 26‑Jan‑88, moving back to Chart Leacon 12‑Jan‑89 thence to Eastleigh 15‑Feb‑89.

DTC 60805 & TS 60655 both moved from Chart Leacon to Mayer Newman (Snailwell) for scrapping 2‑Feb‑88, arriving 11‑Feb‑88. Both coaches burnt 17‑Feb‑88.

MBS 60105 heavily stripped of parts at Eastleigh and Shell taken by road from Southampton Down Yard to V. Berry, Leicester 21‑Mar‑90 for scrapping.





205007

Unit withdrawn 5‑Oct‑87 and moved to Chart Leacon for bogie recovery. MBS 60022 hauled to Selhurst for engine recovery 26‑Feb‑88.

DTC 60806 & TS 60656 both moved from Chart Leacon to Mayer Newman (Snailwell) for scrapping 2‑Feb‑88, but detached from the train at Bishops Stortford after fire in 60806 (due to vandalism). These vehicles were finally sent to Vic. Berry, Leicester for scrapping, moving from Ely 19‑Dec‑89.

MBS 60022 returned to Chart Leacon 12‑Jan‑89 thence to Ore for storage. Moved to Sevenoaks Sep‑89 before leaving Sevenoaks 30‑Oct‑89 for scrapping by V. Berry, Leicester.





205008

Droplight restrictions applied 4‑89. Due to poor condition, both trailers TS 60657 & DTC 60820 exchanged with 60651 & 60801 (both ex.205002 - this unit was then withdrawn) Aug‑91.

Observed in NSE livery 10-Mar-94.

DTC 60801 had luggage compartment so unit then seated 13 first and 206 second. Unit withdrawn 7‑Apr‑94 (last working 07.27 Uckfield to Victoria) and DTC 60801 exchanged with defective 60826 (ex.205027).

Formation now 60120 + 60651 + 60826 and moved to Eastleigh for stripping. All coaches sent to Gwent Demolition (Margam) for scrapping 9‑Aug‑94. 60826 and 60651 both cut‑up w/e 20‑Aug‑94, 60120 cut‑up w/e 27‑Aug‑94.





205009

Droplight restrictions applied from 4‑5‑89. Due to engine defects this unit was out of use Feb‑99 and both trailers (60658 & 60808) temporarily exchanged with 60800 (ex.205001) 12‑Feb‑99 with unit out of use as two-car pending power unit change at Eastleigh. In this form unit weighed 88 tons, seated 13 first and 102 standard and was 133' 3½" long but was not used in traffic.

Released from Eastleigh 2‑Jun‑99 and reformed back to normal at Selhurst depot before release to traffic as three car 16‑June‑99. Unit was run into by 5819 at Selhurst Depot 12‑May‑02 with damage to both DTC 60808 & TS 60658. Sent to Eastleigh for repairs 12‑Jul‑02, released 17‑Sep‑02 and back to traffic 25‑Sep‑02. However, units was slightly damaged same-day in a buffer stop collision on return to Selhurst depot but released again after inspection on 3‑Oct‑02.

Unit last used on 18:32hrs Uckfield to East Croydon on 9‑Dec‑04 and was withdrawn. Hauled to Tonbridge West Yard for store 17‑Dec‑04.

Unit sold to Wensleydale Railway and hauled to Appleby (for Warcop) 16‑Mar‑05. Unit used in service during summer 2005, 2006, 2007 and 2008. Also for traffic from Easter 2009 restored in green livery.





205010

Observed in Blue /Grey livery 11-Apr-87.

Unit withdrawn 5‑Oct‑87 and initially stored at Folkestone East, thence to Chart Leacon 15‑Jan‑88 for bogie recovery. MBS 60109 hauled to Eastleigh 9‑Mar‑88 for stripping.

DTC 60809 & TS 60659 stored at Sevenoaks with both moved to Mayer Newman (Snailwell) for scrapping 19‑May‑88 arriving 22‑Jun‑88. 60659 burnt 22‑Jun‑88 and 60809 burnt 23‑Jun‑88.

MBS 60109 heavily stripped of parts at Chart Leacon and Eastleigh with Shell taken by road from Southampton Down Yard to V. Berry, Leicester 28‑Mar‑90 for scrapping.





205012

Due to corroded door pillars on MBS 60111 unit out of use 10‑87 and MBS 60111 sent to Slade Green for repairs. Both trailers 60661 & 60811 were temporarily used in 205023, later both transferred to 205014 from c.Jan‑88 and replaced by 60663 & 60801 (both ex.205023).

Reverted to original formation from May‑88 and back to traffic, 60663 to withdrawn 205014, 60801 to 205002. Droplight restrictions applied 4‑89.

Unit out of use from 28‑May‑98 for extensive repairs to corroded door pillars, only the DTC and MBS repaired and unit released to traffic as two-car 19‑Oct‑98 now seating 19 first and 102 standard.

TS 60661 stored defective at Selhurst depot until sold to the ‘Hampshire & Sussex Preservation Society’ c.Aug-00, remaining at Selhurst Depot albeit heavily stripped of parts. It was sent by road to Immingham Railfreight Terminal for scrapping 30‑Sep‑03 and cut‑up 20‑Oct‑03.

Unit withdrawn at Selhurst 6‑Feb‑04 owing to poor body condition (last working 12:00hrs Uckfield - East Croydon). After stripping and engine donation to 207017, unit was hauled to St Leonards between MBSs of 930301 for further stripping on 7‑Apr‑05.

MBS 60111 taken by road to Immingham Railfreight Terminal for scrapping 1‑Sep‑05 and cut‑up 7‑Dec‑05. DTC 60811 remained at St Leonards, cut-up there during Dec-06.





205014



Unit out of use from Oct‑86 due to door pillar corrosion and formed with TS 60668 & DTC 60822 (both ex 205023) from Apr‑87. Ran in this formation until Jan‑88 when trailers returned to 205023 and replaced by 60661 & 60811 (both ex.205012).

Unit ran as such until withdrawn 15‑May‑88 when reformed to original formation and stored at St Leonards. Not used again despite droplight restrictions being applied Apr‑89.

Moved for stripping to Chart Leacon 6‑Feb‑89, then stored at Sevenoaks until moved to Vic. Berry, Leicester for scrapping 30‑Oct‑89.





205015

Droplight restrictions applied 4‑89. Unit ran briefly in Dec-90 with DTC 60801 (ex.205002), then seating 13 first and 206 second. TS 60664 withdrawn Jan‑93 and stored at Selhurst with unit reduced to 2H and used as standby unit for Ashford to Hastings services (now seating 19 first and 102 standard).

Unit withdrawn from 9‑Jun‑93 and all three coaches sent to Eastleigh for stripping 13‑Jul‑93. DTC 60814 & MBS 60114 both hauled to Gwent Demolition, Margam for scrapping 24‑Mar‑94 with both cut‑up w/e 16‑Apr‑94. TS 60664 remained stored at Eastleigh.

All three coaches were allocated to Porterbrook train leasing company from 1‑Apr‑94 despite 60814 & 60114 already having been disposed of to a scrap dealer. TS 60664 moved to St Leonards for stripping then scrapped 16‑Jul‑96 and cut-up during Mar‑98.





205016



Droplight restrictions applied from 20‑May‑89. DTC 60815 and TS 60665 both temporarily exchanged with 60822 and 60668 (ex.205023) from late Jan-90 until early Mar-90. Unit out of use in this formation with MBS in NSE livery whilst trailers were still blue /grey.

Unit withdrawn from 9‑Jun‑93, TS 60665 to Eastleigh for stripping 13‑Jul‑93, 60115 & 60815 held at Selhurst for stripping before being hauled to Gwent Demolition, Margam for scrapping 9‑Aug‑94; both were cut‑up w/e 13‑Aug‑94.

All three coaches allocated to Porterbrook train leasing company from 1‑Apr‑94 though never used in service under their ownership. TS 60665 moved to St Leonards for further stripping then scrapped 16‑Jul‑96 and cut-up during Feb‑98.





205017

Unit withdrawn 5‑Oct‑87 and stored at Ore before moving to Chart Leacon for bogie recovery 23‑Feb‑88.

MBS 60116 hauled to Eastleigh for stripping 9‑Mar‑88. DTC 60816 & TS 60666 stored at Sevenoaks before moving to Mayer Newman (Snailwell) for scrapping 19‑May‑88 arriving 22‑Jun‑88. 60816 burnt 24‑Jun‑88 and 60666 burnt 28‑Jun‑88.

MBS 60116 heavily stripped of parts at Chart Leacon and Eastleigh before Shell taken by road from Southampton Down Yard to V. Berry, Leicester 30‑Mar‑90 for scrapping. This coach was then destroyed by fire in the large stack of bodies in this yard 10‑Mar‑91.





205018

Droplight restrictions applied 4‑89. Unit leading was 205001 in head-on collision with 205029 & 205032 near Cowden 15‑Oct‑94 and DTC 60817 bodywork destroyed. Underframe cut on site 17‑Oct‑94. TS 60667 also damaged.

Unit reformed 6‑Jan‑95 and damaged 60667 was exchanged with 60674, wrecked 60817 replaced by 60828 (both ex withdrawn 205029) though unit still under repair at Selhurst and both trailers repainted from green back to Network SouthEast livery.

Unit released from repair shop 7‑Mar‑95 and visited Eastleigh for overhaul prior to returning to traffic 8‑May‑95. DTC 60828 seated 13 first and 62 standard, giving unit a total of 13 first and 218 standard seats.

MBS 60117 slightly damaged when the unit was in collision with car & caravan on a level crossing near Rye in Oct-99 and unit ‘stopped’ for repairs for many weeks due to the discovery of some wasted door pillars.

Unit withdrawn at Selhurst 17‑Aug‑04 (last working 18:32hrs Uckfield to East Croydon). MBS 60117 and DTC 60828 both sold to the Pontypool & Bleanavon Railway and moved by road from Selhurst; 60828 on 31‑May‑05 and 60117 1‑Jun‑05 before being used on a test run 17‑Jul‑05 and into traffic 30‑Jul‑05.

TS 60674 moved by road from Selhurst to J T Lanscapes, Caerwent for scrapping 31‑May‑05 and cut‑up on 26‑Sep‑05.





205019



Unit damaged in a sidescrape incident at New Cross Gate 17‑Jun‑87 and withdrawn 31‑Aug‑87. Stored in Hastings Yard thence at Ore before travelling to Chart Leacon for bogie recovery 23‑Feb‑88 before returning to Ore.

MBS 60118 moved to Mayer Newman (Snailwell) for scrapping 15‑Feb‑89 from Ore, arriving 22‑Feb‑89 and burnt 4‑May‑89. Both trailers stored at Paddock Wood from 24‑Aug‑88 before moving to Mayer Newman (Snailwell) for scrapping (13‑Sep‑88 to Willesden), going forward 26‑Apr‑89. Both burnt 27‑Apr‑89.





205020

Unit withdrawn 5‑Oct‑87 at Selhurst thence to Gatwick for store c.20‑Nov‑87, later moving to Ore.

Both trailers 60819 and 60652 taken to Chart Leacon for bogie recovery then stored at Sevenoaks until hauled to Vic. Berry, Leicester for scrapping 30‑Oct‑89.

MBS 60119 also to Chart Leacon thence to Eastleigh for stripping 15‑Feb‑87. Shell taken by road from Southampton Down Yard to V. Berry, Leicester 23‑Mar‑90 for scrapping.





205023

Unit stopped for corrosion repairs to MBS 60122 at Slade Green Apr‑87 with both trailers to 205014. Replaced by TS 60663 (ex.205014) and damaged DTC 60801 (ex.205002). MBS 60122 repaired by Oct‑87, both trailers exchanged with TS 60661 and DTC 60811 (both ex.205012) and unit back to traffic as 60122 + 60661 + 60811. Unit reformed back to original formation May‑88, both trailers 60663 & 60801 going to 205014.

Droplight restrictions applied 11‑May‑89. Due to a split roof tank in 60822, unit ran briefly from late Jan-90 (and at least to 9-Jun-90) with both trailers 60665 & 60815 (ex.205016), the MBS being blue/grey and trailers NSE livery.

From Feb‑90 both trailers 60668 + 60822 exchanged with 60669 & 60823 (both ex damaged 205024) until Jun‑90, unit seating 13 first and 206 second.

Unit withdrawn 19‑Mar‑94 and stored at Selhurst for component recovery. Unit allocated to Porterbrook train leasing company from 1‑Apr‑94 though not leased to any train operator. Due to loss of units following the Cowden collision (15‑Oct‑94) unit re‑leased to Network SouthCentral, sent to Eastleigh for C3 repair 25‑Oct‑94 and reinstated.

However, this repair not commenced and TS 60668 moved to St Leonards for stripping 16‑Jul‑96. Remaining two coaches remained stored at Wessex Traincare, Eastleigh. MBS 60122 also moved from Eastleigh to St Leonards 10‑Mar‑98 for stripping, both this and 60668 remaining stored there into 2003.

DTC 60822 sold to the ‘Hampshire & Sussex Unit Preservation Society’ (HSUP) c.Jun‑00 and later moved to Selhurst depot for initial restoration. Both remaining coaches also later sold to HSUPS, MBS 60122 then moving by road from St Leonards to Rampart Engineering, Derby for overhaul 18‑Mar‑03 whilst TS 60668 also moved to Derby 10‑Apr‑03 to join 60122 there undergoing restoration.

TS 60668 later moved for storage to Pershore Airfield, Throckmorton thence to J T Lanscapes, Caerwent 23‑Oct‑03 and cut‑up by the end of the month.

MBS 60122 outshopped at Derby in green livery and moved by road to the Lavender Line at Isfield 8‑Jun‑05. DTC 60822 moved by road from Selhurst to Isfield 30‑Jun‑05 only to be moved again from Isfield to Marshall’s Transport, Pershore Airfield, Throckmorton 30‑Nov‑05.





205024

Droplight restrictions applied 5‑May‑89. Unit in collision with tree near Woldingham Feb‑90 and MBS 60123 damaged. Unit stopped formed with both trailers 60668 & 60822 (ex.205023) until reverted to normal formation Jun‑90.

Unit released from C4 overhaul at Chart Leacon 12‑Nov‑98 and ran as three car prior to TS 60669 removed and unit reduced to two-car 9‑Jan‑99, now seating 13 first and 102 standard.

205024 suffered serious engine failure at Crowborough 22‑Jun‑99 (threw a leg out of bed) and stored out of use at Selhurst depot. Sent to Eastleigh for overhauled engine to be fitted 24‑Nov‑99, though this did not take place and unit was returned to Selhurst for extensive component stripping.

TS 60669 sold to the ‘Hampshire & Sussex Preservation Society’ c.Aug‑00, remaining stored at Selhurst Depot. DTC 60823 moved by road to Immingham Railfreight Terminal 20‑Aug‑03 for scrapping and cut‑up 3‑Sep‑03. MBS 60123 also followed from Selhurst by road 25‑Sep‑03 and was cut‑up 28‑Oct‑03. TS 60669 moved to Marshall’s Transport, Pershore Airfield, Throckmorton by Jan‑04.





205025

Droplight restrictions applied on transfer to Selhurst c.May‑90. Unit out of use due to defective door pillars in MBS 60124 9‑Nov‑98. MBS 60124 used temporarily in Sandite unit 930301 from 13‑Nov‑98 until early 1999 when out of use again for body repairs at Selhurst Repair Shop.

Observed in blue /grey livery 18-Apr-89.

Unit released to traffic as two-car from 26‑Apr‑99 and TS 60670 stored at Selhurst until taken by road to Immingham Railfreight Terminal 19‑Aug‑03 and cut‑up 6‑Sep‑03.

Unit now seated 13 first and 102 standard until temporarily made up to three car again from 9‑Feb‑00 using TS 60678 (ex 205033 but via 205001). TS 60678 returned to 205033 16‑Mar‑00.

MBS 60124 cab end damaged in collision with fallen tree near Three Oaks 8‑Feb‑01 and unit to Selhurst for repairs. Back to traffic 23‑Apr‑01.

Unit ran in traffic on Friday 21‑Feb‑03 on the Ashford - Hastings line formed with DTC 60824 coupled to Hastings 6L motorcoach 60118 ‘Tunbridge Wells’ hired by SouthCentral from Hastings Diesels Ltd whilst MBS 60124 was undergoing engine repairs at St Leonards depot. Unit ran ECS from St Leonards to Eastbourne the previous evening, but after the fuelling trip to Selhurst on Friday evening arrived back at St Leonards on Saturday afternoon the wrong way round and a turning trip was run on Sunday 23‑Feb‑03 via Eastbourne, Brighton and Wivelsfield to turn the unit back round to enable it to be reformed back to normal.

Last day in traffic 17‑Feb‑04 on 07:27krs Uckfield to Victoria. Sold by Porterbrook to the Mid‑Hants Railway and moved under its own power from Selhurst to Ropley 18‑May‑04, and used on the Mid‑Hants Diesel Gala on 22/23-May-04.





205026

Droplight restrictions applied on transfer to Selhurst c.May‑90. Unit rammed by 4 VEP 3491 at St Leonards depot 1‑Sep‑90 and pushed through shed doors. All coaches damaged and unit withdrawn 26‑Nov‑90, stripped at Selhurst and then to Eastleigh for further stripping 28‑Aug‑91. Moved to Mayer Parry (Snailwell) for scrapping 27‑Jan‑92, coaches burnt as follows: 60125 3‑Feb‑92, 60671 4‑Feb‑92 and 60825 6‑Feb‑92.





205027

Droplight restrictions applied on transfer to Selhurst c.May‑90. DTC 60826 had defective wiring early in 1994 and exchanged with 60801 (ex withdrawn 205008) 7‑Apr‑94. This coach had luggage compartment and seated 13 first and 50 second, reducing overall unit capacity to 13 first and 196 second. Unit only ran briefly in this formation, was withdrawn during Jun-94 and to Eastleigh for stripping.

DTC 60801 and TS 60672 hauled to Gwent Demolition, Margam for scrapping 9‑Aug‑94 and both cut‑up w/e 20‑Aug‑94.

MBS 60145 sold to Railtrack, sent to Eastleigh for Sandite conversion and use in unit (95)1069. 60145 renumbered ADB977939 19‑Nov‑94 and released from 24‑Nov‑94. Conversion consisted only of adding twin spotlights below the headcode indicator and provision of some controls in the cab to operate the Sandite equipment in the trailer coach (ADB977870 formerly TS 60660 from unit 205101). The coach remained in faded NSE livery until repainting into all-blue during 2013.

The whole Sandite unit (ADB977939 + ADB977870 + ADB977940) was repainted into the Railtrack Brown /White /Grey livery at Chart Leacon during 1996. The Sandite unit was renumbered 930301 during 1998. Following a period based at Selhurst, it then moved to St Leonards depot and was last used in the autumn of 2005. MBS 60145 was painted all-blue in 2013.





205028

MBS 60146 to unit 205032 Feb‑91 and replaced by 3D MBS 60142 (ex 207017). Back to original formation Jul‑91 and transferred to Selhurst where window bars were fitted over the droplights.

Unit last used on 07:22hrs Uckfield to London Bridge 10‑Nov‑04 and withdrawn.

Hauled to Tonbridge West Yard for storage 17‑Dec‑04 and sold to the Dartmoor Railway. Unit hauled to Meldon 3‑Jab‑05. Unit used spasmodically and MBS 60146 under restoration early in 2009 to act as a ‘spare’ for unit ‘1132’ already back in use.





205029

Due to defects both trailers 60674 & 60828 exchanged with 60609 & 60909 (both ex 3D 207010) from Oct‑90 to Feb‑91. In this formation unit seated 24 first and 160 standard. Further reformed Apr‑91 when ‘own’ TS returned and TCK 60609 back to 207010, though unit not in traffic in this form as no first class accommodation. DTS 60909 exchanged with DTC 60828 Jun‑91 and unit back to original formation.

Unit repainted into green livery with full yellow ends and outshopped 10‑Aug‑92. Unit transferred to Selhurst May‑93 and initially restricted to Redhill - Tonbridge line duties until window bars fitted over droplights.

Observed in Blue livery 12-Jul-94.

Unit leading 205032 in head-on collision with 205018 & 205001 near Cowden 15‑Oct‑94 and MBS 60147 badly damaged and removed from site by road 17‑Oct‑94.

Unit withdrawn 6‑Jan‑95 and TS 60674 exchanged with damaged 60667 (ex.205018), DTC 60828 also to 205018. Remains of 60147 taken by road to M.C. Metals Glasgow, arriving there 30‑Mar‑95 and cut‑up 6‑Apr‑95. TS 60667 also taken by road to same location arriving 20‑Apr‑95 and scrapped 25‑Apr‑95.





205030

Unit withdrawn 29‑Aug‑92 and hauled from Eastleigh to Cricklewood en-route M. C. Metals, Glasgow 2‑Oct‑92, arriving there 24‑Nov‑92 and cut‑up 30‑Nov‑92.





205031

MBS 60149 slightly damaged in collision with 7348 at Portsmouth & Southsea 9‑Aug‑86. Unit withdrawn and reinstated several times. It was the only remaining blue/grey unit from early 1992.

Both trailers used briefly in 207013 Nov‑92. Finally withdrawn 14-Jul‑93 and stored at Selhurst for stripping. DTC 60830 and TS 60676 both to Gwent Demolition, Margam for scrapping 9‑Aug‑94 and cut‑up w/e 20‑Aug‑94.

MBS 60149 sold to Railtrack, sent to Eastleigh for Sandite conversion and use in unit (95)1069. 60149 was renumbered ADB977940 19‑Nov‑94 and released 24‑Nov‑94. Conversion consisted only of adding twin spotlights below the headcode indicator and provision of some controls in the cab to operate the Sandite equipment in the trailer coach (ADB977870 formerly TS 60660 from unit 205101). The coach was repainted into NSE livery to match the remainder of the unit.

The whole Sandite unit (ADB977939 + ADB977870 + ADB977940) was repainted into the Railtrack Brown /White /Grey livery at Chart Leacon during 1996. It was renumbered 930301 during 1998. Following a period based at Selhurst, it then moved to St Leonards depot and was last used in the autumn of 2005.





205032

MBS 60150 to 3D 207017 Feb‑91 and replaced by 60146 (ex.205028). Back to original formation by Aug‑91. Unit transferred to Selhurst May‑93 and initially restricted to Redhill - Tonbridge line duties until window bars fitted over droplights.

Unit (with 205029) in head-on collision with 205018 & 205001 near Cowden 15‑Oct‑94 and damaged, but repaired at Selhurst.

Unit last used to 06:51hrs Uckfield to London Bridge 21‑Oct‑04, sent into traffic 25‑Oct‑04 but defective at Oxted so not used, returned to Selhurst and withdrawn.

TS 60677 removed from unit and other two coaches hauled to St Leonards for engine repairs 24‑Nov‑04. TS 60677 hauled to Tonbridge West Yard for storage 17‑Dec‑04 and reformed there with the two back from St Leonards.

Unit sold to Dartmoor Railway and hauled to Meldon 3‑Jan‑05 where it was used spasmodically. DTC and MBS both restored and repainted green (with yellow warning panels) as unit 1132; into use again Easter 2009.





205033

Unit transferred to Selhurst May‑93 and initially restricted to Redhill - Tonbridge line duties until window bars fitted over droplights.

Unit ‘stopped’ 2‑Dec‑99 awaiting main generator repairs. TS 60678 reformed temporarily in 205001 from 30‑Dec‑99 and unit held out of use a two-car. MBS 60151 loco-hauled to Eastleigh for repair during Jan-00 whilst TS 60678 transferred from 205001 to 205025 9‑Feb‑00. MBS 60151 returned Eastleigh to Selhurst 25‑Feb‑00 and unit reformed to normal with 60678 (ex.205025) and own 60832 from 16‑Mar‑00. Back to traffic 20‑Mar‑00.

Unit out of use in Mar-01 with engine defects; many wheelsets then removed for use in other units following the discovery of some cracked wheel centres in a number of units. Replacement wheelsets provided by Oct-01 and unit hauled to St Leonards for replacement power unit 25‑Oct‑01. Back to traffic from 13‑Dec‑01.

Observed in Connex livery 21-Sep-03.

Unit last used on Farewell rail tour 27‑Nov‑04 and withdrawn, hauled to Tonbridge West Yard for storage 17‑Dec‑04.

Unit sold to Lavender Line and hauled to Stewarts Lane 19‑Jan‑05 and all coaches moved by road to Isfield, 60832 24‑Jan‑05, 60678 25‑Jan‑05 and 60151 27‑Jan‑05. TS 60678 subsequently resold to a school at Latchington Road, Cold Norton, Essex, moving by road from Isfield 19‑Oct‑07.

Unit ‘1133’ in service over Easter 2009.





205101

Droplight restrictions applied Apr‑89. MBS 60110 carried the ‘St Leonards’ nameplates formerly on 4L 203001 from May‑90 for a while, though these were subsequently removed.

Observed in NSE livery 31-Dec-92.

Unit reduced to 2H from Jan‑93 now seating 115 and TS 60660 withdrawn for convertion into a Sandite trailer; renumbered ADB977870 and used in Sandite unit 1067. ADB977870 transferred to Sandite unit 1069 from Nov‑94.

Unit to Eastleigh 12‑Jun‑95 for reformation and renumbered 205205 from 21‑Jun‑95 when reverted to three-car (see below).





205205

Unit 205101 to Eastleigh 12‑Jun‑95 to be made up to three-car again by inclusion of former 4 CEP TSO 71634 (ex 1542), this vehicle having been converted from a former loco‑hauled TSO 4059 at Swindon during the CEP refurbishing programme in 1981/2.

This CEP vehicle was built in 1956 at Swindon on Ashford underframe, seated 64 and had two lavatories at one end. During refurbishing work a new interior fitted with seating now of the loose cover style and double glazed tinted large sidelight windows with hopper ventilators above were fitted. This coach was then further modified at Eastleigh during May‑95 to be compatible with DEMU units – i.e. 90 volt control and lighting currents.

In its new form unit (now renumbered 205205) seated 179 standard and reverted to the standard 3H length of 199' 6" and weighed 122 tons (71634 weighed 34 tons, normal 3H centre trailers weighing 30 tons). The CEP TSO was marshalled in 205205 with the toilet end adjacent to DTS vehicle. The reformed unit was released as 205205 21‑Jan‑95.

DTS 60810 damaged when pit road at Selhurst depot collapsed under the unit on 20‑Oct‑97. Unit back to traffic after repairs 23‑Dec‑97.

Unit out of use in Jul-98 with engine defect so sent to Eastleigh for overhaul and released Oct‑98.

The CEP TSO 71634 was removed from the unit at Selhurst depot and stored in repair shop with 205205 released to traffic in 18-Oct-98 livery as two-car 8‑Oct‑98, once again seating 115 standard. Unit now 133' 3½" long and weighed 89.26 tonnes.

TSO 71634 restored to unit again from 9‑Jan‑99 and unit reverted to seating 179 standard, being 199' 6" long and weighing 122 tons.

TSO 71634 removed once again from unit 29‑Jan‑99 and stored after whole unit given a bogie overhaul at Chart Leacon with 205205 reverting to two-car once again.

TSO 71634 back into unit once again from 25‑Mar‑99 for traffic. 205205 reduced to two-car for winter 1999 period from 29‑Sep‑99 and restored to three cars again from 20‑Feb‑00.

Unit temporarily reduced to two-car again from 29‑Jan‑01 and TS 71634 out of use for wiring repairs; the unit remaining restricted to Uckfield line duties during this period.

No repairs carried out on 71634 during 2001 and unit remained running as a two-car on the Uckfield line, restricted to run always with another unit owing to unreliability.

205205 resumed unrestricted working from 24‑Sep‑02 following a power unit change at St Leonards depot.

TSO 71634 taken by road to Immingham Railfreight Terminal for scrapping 19‑Aug‑03 and cut‑up 4‑Sep‑03.

Unit withdrawn at Selhurst 23‑Jul‑04 after becoming defective working the 07:26hrs Uckfield to London Bridge which terminated at East Croydon. It was hauled to Tonbridge West Yard for storage 24‑Nov‑04 thence to St Leonards for engine repairs 30‑Dec‑04, returning to Tonbridge 2‑Mar‑05.

Unit sold to North Yorkshire Moors railway, hauled to Darlington 21‑Mar‑05 and on to Grosmont the next day. Owing to a brake defect, unit suffered some shifted tyres during delivery and so wasn’t used on the NYMR into 2006 although it did a short test run in Nov-06.

Unit sold to private buyer 18‑Aug‑08 but this subsequently fell through so it was unit up for sale again in Feb-09.

It was sold and moved to the Epping and Ongar Railway 12‑Nov‑09. Repairs and restoration took place; the unit ‘took power’ for first time c.25‑Nov‑11 after some earth faults cured. Unit ran to North Weald for first time during Dec-11.





206101

Unit withdrawn 5‑Oct‑87 and after stripping at St Leonards moved to Mountfield for store thence to Chart Leacon for bogie recovery 27‑Nov‑87. Then stored at Sevenoaks, moving from Chart Leacon 11‑Jan‑88.

Hauled to Mayer Newman (Snailwell) for scrapping 11‑Mar‑88, arriving 14‑Mar‑88. Coaches burnt as follows: 60812 15‑Mar‑88, 60561 16‑Mar‑88 and 60044 8‑Apr‑88.







3H 1117 13.45 to Southampton from Alton September 1960 copyright BloodandCustard closeup.jpg

3H ‘Hampshire’ unit no.1117 leaving Alton in 1960

© BloodandCustard





Thanks go to research author John Atkinson, webpage author, editorial and additional information from C.Watts, contributions from Boris Perkins, Nick Wellington & Kent Evenden along with the many photographers listed below their images.



Back to Top





The 2H/3H in Model Form

Until recently the 2H /3H was only available in kit form; the most recent version being from DC kits who also produce kits for the 3D, 3R, 3T, 6S and 6L demus.

DC kits also produce an excellent sound chip for the 2H /3H units which (unlike some others) incorporate the realistic die-back between engine speed two and engine speed three.

Replica Railways announced a ready-to run version and displayed full body-mouldings and parts (which are available) before producing a motorised chassis which is currently sold in its own right for use under many multiple-unit types along with useful detail items such as jumper cables etc.

It was understood that the Replica Railways ready-to-run 2H/3H was still in development when Kernow Model Shop announced it was commissioning Dapol to produce a 2H unit. After a period of time Kernow Model Shop switched production from Dapol to Bachmann (who now market these models).



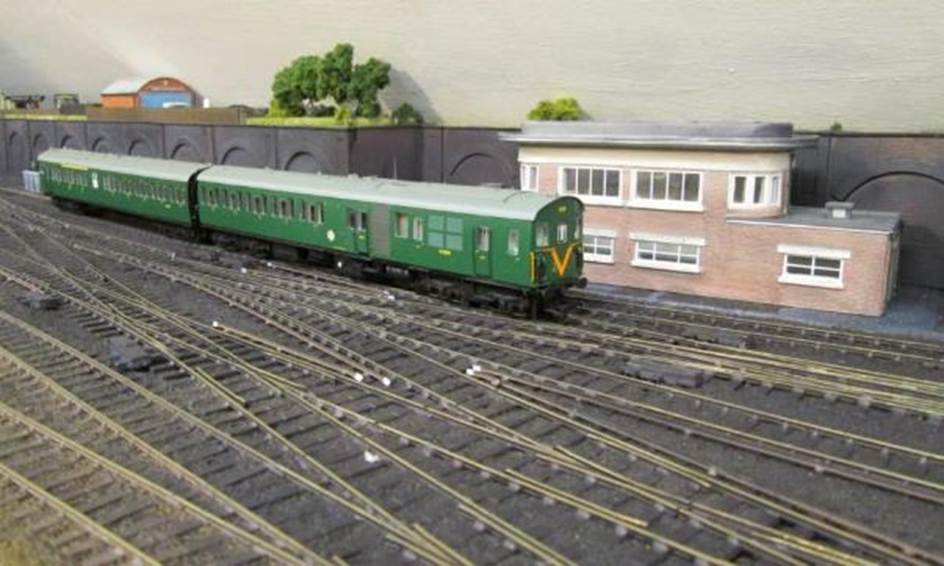

2H 1115.jpg

Kernow Model Shop 2H ‘Hampshire’ running on
4mm layout Apothecary Street Junction

(model correct for November 1963)

© BloodandCustard



The excellent Kernow Model Shop versions are suitable for 1957-built 2H ‘Hampshire’ units 1101 to 1118 and (with roof modification) 1958-built 2H ‘Hastings’ units 1119 to 1122. Both early and late side vents /roof are exhausts modelled. 2013 releases of the 2H were as follows:

205012

2H ‘Hampshire’
Connex Livery

It appears that this unit entered service in Connex livery on 19-Oct-98 as a 2H. Both its last in-service and withdrawal date being the 6-Feb-04.

It had been fitted with window bars and restricted opening droplights by 1989.

Unit based at Selhurst.

(Catalogue number 31-237)

1108

2H ‘Hampshire’
BR(S) Green with plain ends, early grills, early style destination blinds (i.e. without red blinds) and whistles.

This unit was introduced as a 2H on 6-Sep-57 and was made up to a 3H on 10-Oct-1959.

Its early type of grills had been replaced by 3-May-1958 but not the early style headcode blinds. The introduction of red destination blinds (instead of a tail-lamp) gradually started on demus from May 1960 on as the early-type headcode blinds were replaced.

The second-class compartment in the DTC was converted to luggage space on 31st July 1965.

Unit 1108 was not noted for having its centre car removed late-1959. However, some 3H units had their centre cars were randomly removed during winter 1960.

It was based at Eastleigh.

(Catalogue number 31-236)

1115

2H ‘Hampshire’
BR(S) Green with orange Vee, late grills, early style destination blinds (i.e. without red blinds) and air horns.

This unit was made up to a 3H on 12-Aug-1959 before the orange Vee was applied post-February 1960 and unit 1115 was not recorded as having its centre car removed late-1959 (some 3H units had their centre cars were randomly removed during winter 1960).

However, unit 1115 was running as a 2-car on 3rd November 1963 (with orange Vee, air horns & early blinds) and on 26th April 1964 (with orange Vee, air horns & later blinds).

The air-horns were probably fitted during 1963 and certainly by 3-Nov-63 (if anyone can assist further on the air-horn fitment date please let me know – was this undertaken when the compartment in the DTC was converted?).

3H unit 1115 was still sporting an orange Vee on 30th October 1966 having seen its movement from Eastleigh to new allocation at St Leonards West Marina on 3rd May 1964.

The second-class compartment in the DTC was converted to luggage space on 13th July 1963. Unit was outshopped in blue 30-Jun-67.

The introduction of red destination blinds (instead of a tail-lamp) gradually started on demus from May 1960 on as the early-type headcode blinds were replaced.

(Catalogue number 31-267)



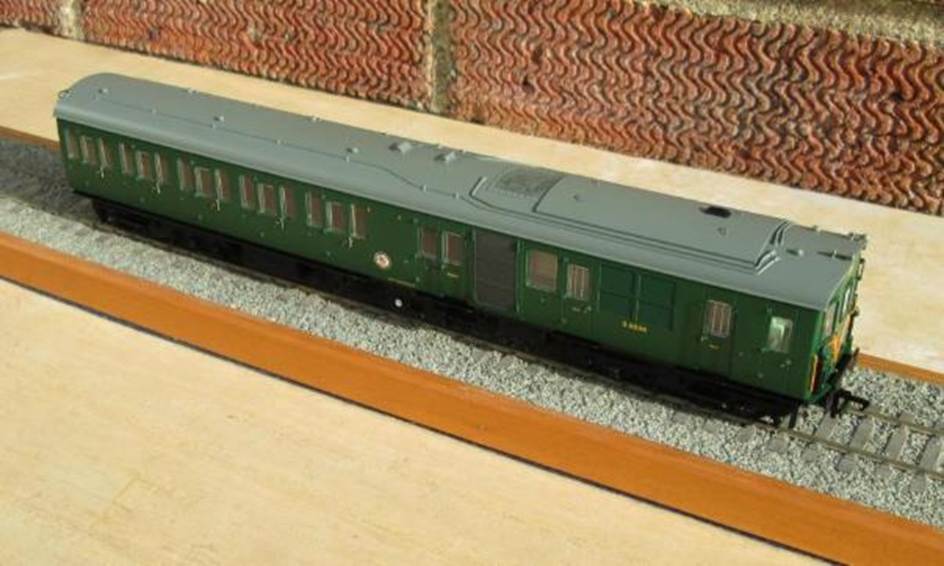

1115 Kernow MBS A.jpg



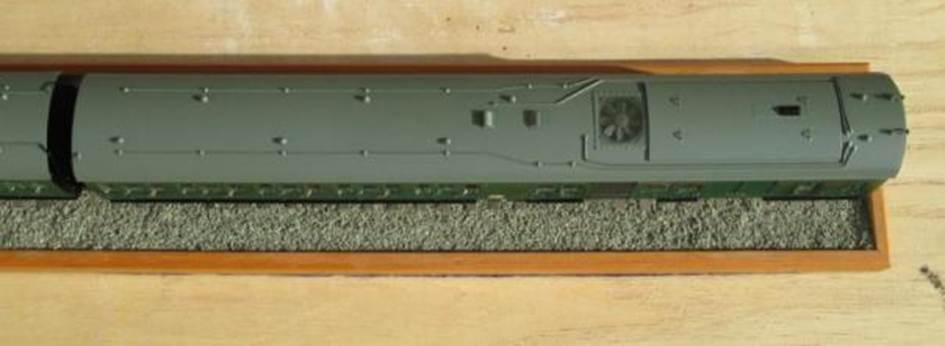

1115 Kernow motor coach roof w.jpg



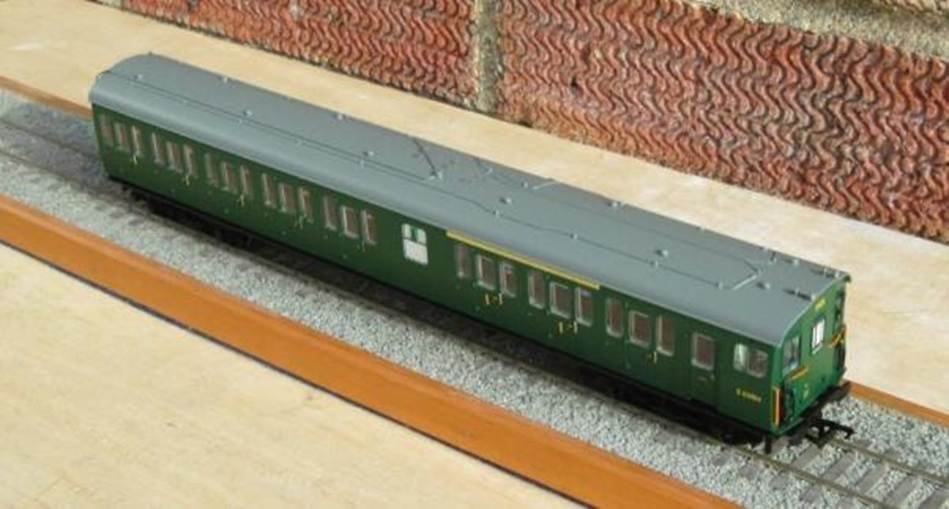

1115 Kernow DTC BW.jpg

Kernow’s model of Hampshire unit no. 1115
© C. Watts



Further releases for 2015 were:



205001

2H (3H) ‘Hampshire’
NSE livery full yellow end with air horns.

205 001 was a three-car unit in NSE livery which it carried between 11-May-88 and 9-Dec-98 (when it entered Eastleigh works remerging 18-Jan-99 as a two-car in Connex Livery).

Droplight restrictions were applied Apr-89 and MBS 60100 was renumbered 60154 from 27-Jun-89 to clear the number range for the new class 60 locomotives.

(Catalogue number 31-239Z)

1121

2H ‘Hastings’
BR(S) Green with yellow warning panels with air horns.

This 2H received its yellow warning panels 11-Jun-65 and was repainted into blue livery c.May-67.

The second-class compartment in the DTC was subsequently converted to luggage space in July 1967.

Unit 1121 did not have roof-mounted lighting trunking until after the unit-identity swap with 1108 in May-74.

(Catalogue number 31-236X)

1122

2H ‘Hastings’
BR Blue with full yellow ends with air horns.

2nd class compartment had been converted into luggage space Nov-65.

Livery 26-Jun-68 to c.Sep-79 when unit disbanded and formed into 3T unit 1402.

However, unit made up to 3-car between May‑79 and Jul-79 with TS 60653 (ex.1104).

Unit 1122 did not have roof-mounted lighting trunking at this time.



(Catalogue number 31-238Z)

Kernow Model Shop had proposed to make unit 1109 but on 31-Oct-2014 announced that this model was not now being produced for fear of insufficient demand following an enforced significant price increase. At the same time, they indicated that a centre-car may still be under consideration although a 3T unit (using Bachmann’s EPB Driving Trailer) had been evaluated and discounted.



1109

Proposed 2H ‘Hampshire’
BR(S) Green with yellow warning panels.

This unit is understood to have been a 3H when it carried yellow warning panels (which it was sporting on 29-May-66).

The second-class compartment in the DTC was converted to luggage space on 2nd July 1966.

It was temporarily reduced to a 2H May-67 to Jun-67 prior to being outshopped in blue livery on 24th December 1970.

Unit based at Eastleigh.

(Catalogue K2006)

Kernow Model Shop models are supplied with and without sound chips fitted (DS code added to number). Although the sound chips do capture the essence of the Hampshire units, they appear to be missing the distinctive ‘die-back’ in revs at the change from engine speed two to engine speed three. It is understood the sound chips do include whistle sounds!



DC kits produce a sound chip that replicates the distinctive ‘die-back’ in revs at the change from engine speed two to engine speed three. It is understood the sound chips do include whistles and other sounds!





4mm Models and Kadee couplers

Like many modellers Ewhurst Green has a number of 2H units and these were quickly fitted with Kadee no.20 couplings (as used within Bachmann’s Mk1 BR(S) coaching sets). The no.20 is used so it does not foul the headstock although Bachmann’s dummy buckeye coupling does need to be carefully prised out first.

However, after a number of derailments it was discovered that the NEM pockets (which are fixed to the 2H bogies) are a fraction lower than those on Mk1 coaches causing the coupling to hang low. Essentially these derailments occurred because the curved steel activating rod that loops down from the Kadee buckeye coupling can foul the stock rail when passing over switches and crossings.

The modification is simple and straightforward; remove the Kadee coupling and carefully bend the curved steel activating rod in order to reduce its overall height. Once refitted to the bogies the coupling should not foul stock rails (etc) and these units should run without issue from their buckeye couplings.





Home

ALL TEXT AND PHOTOGRAPHS ARE COPYRIGHT

Contact











[1]  = ‘Hastings’ long frame MBS, Diagram 651, Code MA-1A.

[2]  = ‘Hastings’ long frame MBS, Diagram 651, Code MA-1A.

[3]  = ‘Oxted’ MBS, Diagram 655, Code NB.

[4]  = ‘Hastings’ long frame MBS, Diagram 651, Code MA-1A.

[5]  = ‘Hastings’ long frame TSO, Diagram 671, Code SB-1A.

[6]  = ‘Oxted’ MBS, Diagram 655, Code NB.

[7]  = ‘Oxted’ MBS, Diagram 655, Code NB.

[8]  = ‘Oxted’ MBS, Diagram 655, Code NB.

[9]  = ‘Hampshire’ MBS, Diagram 652, Code NA.
